Model
Kenmore 253.54332301
Refrigerator (Kenmore 25354332301)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.54332301Refrigerator (Kenmore 25354332301)
9 diagrams347 parts

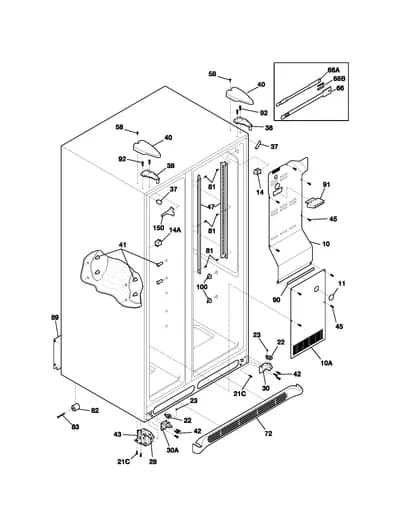

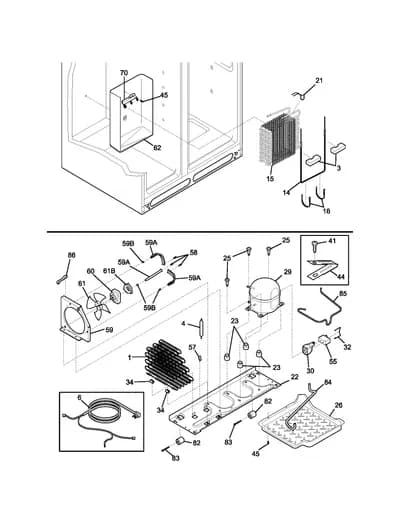

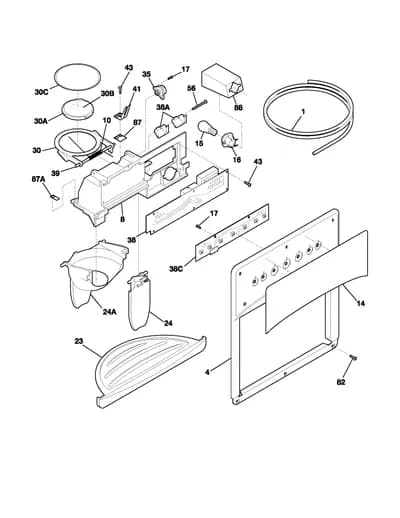

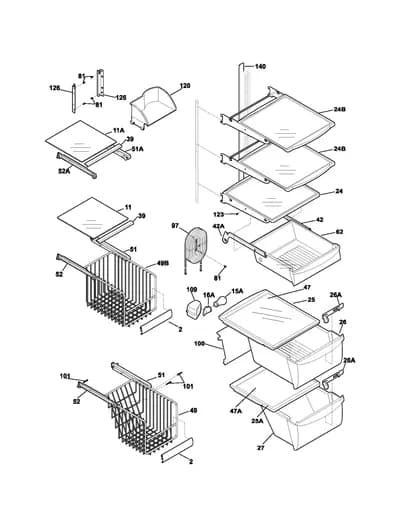

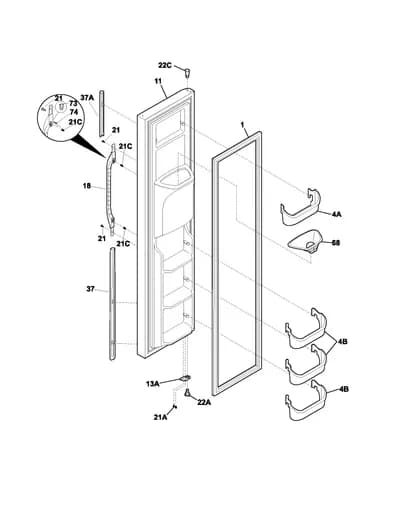

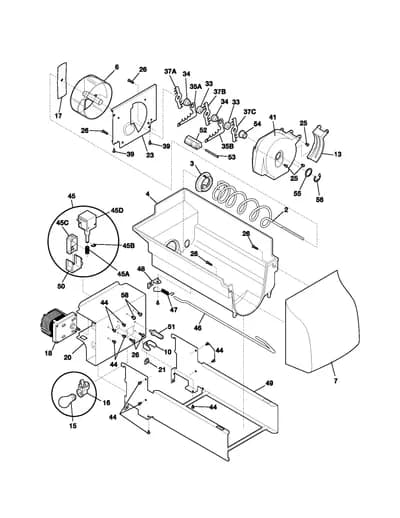

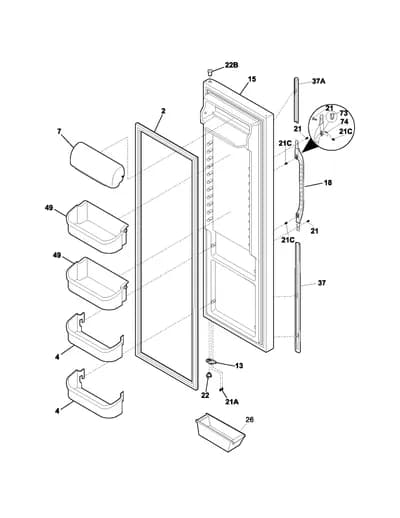

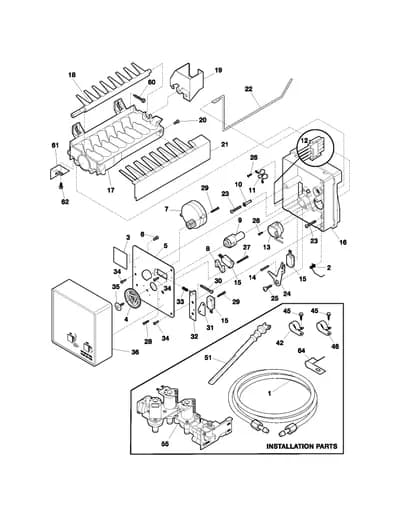

Parts Sections (9)

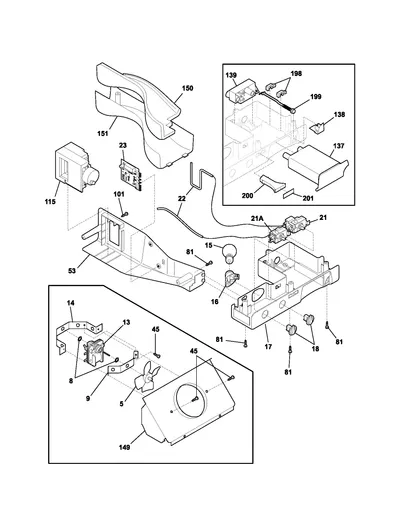

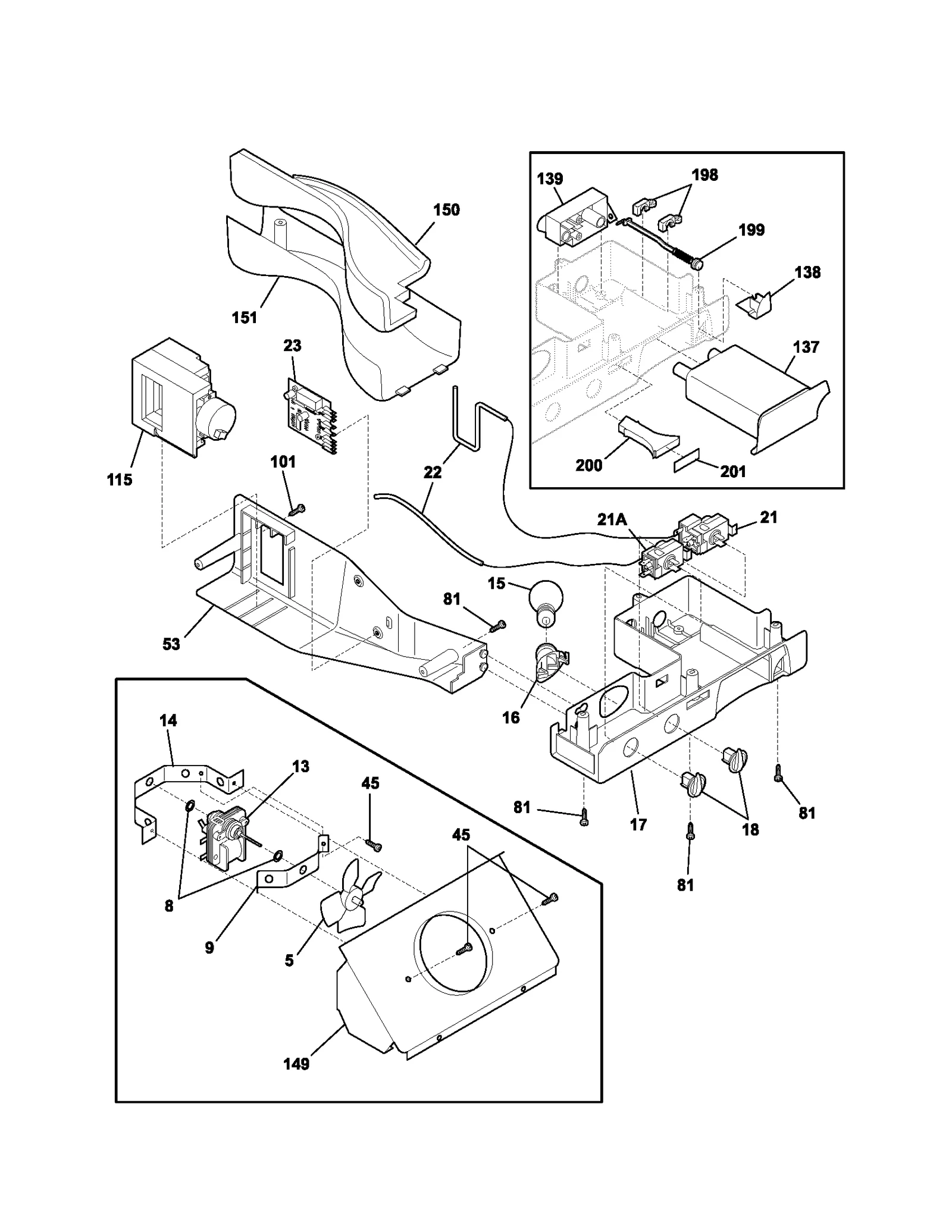

Diagram
CONTROLS
Parts in CONTROLS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 8 |  | Refrigerator Bushing | Discontinued |
| 9 |  | 5303292396NLA Refrigerator Evaporator Fan Motor Bracket, Front | Discontinued |
| 13 |  | 5303918549replaces 240369701 Evaporator Motor | $41.09 Part Advantage |
| 14 |  | 240438003replaces 5303292397 Refrigerator Evaporator Fan Motor Bracket, Rear | $12.29 RepairClinic |
| 15 |  | 316538904replaces 240436702 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | 218906802replaces 241513901 Light Socket | $10.24 Part Advantage |
| 17 | – | 240374904 Refrigerator Control Box | - |
| 18 |  | 240360801NLA Refrigerator Temperature Control Knob | Discontinued |
| 21# |  | 241537104replaces 241507701 Refrigerator Temperature Control | $111.86 Part Advantage |
| 21A |  | 5304496561replaces 5304421067 Refrigerator Temperature Control | $80.91 Part Advantage |
| 22 |  | 218660704replaces 218660702 Insulation Tube | - |
| 23 |  | 241508001NLA Refrigerator Adaptive Defrost Control Board Kit | Discontinued |
| 45 |  | 5304455651replaces 5303001343 Screw | $7.77 Part Advantage |
| 53 |  | Crosley Refrigerator Electronic Control Board Housing | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 115 |  | 241600902replaces 241546902 Refrigerator Damper Assembly | $134.84 Part Advantage |
| 137 |  | 242227702replaces 240396701 Refrigerator Water Filter Bypass | $33.62 Part Advantage |
| 137 |  | WF2CBreplaces 9911 Genuine Kenmore Refrigerator Water Filter | $38.58 Part Advantage |
| 138 | | Refrigerator Water Filter Release Button | - |
| 139 |  | 240396002replaces 240396001 Water Base | $55.88 Part Advantage |
| 139 |  | 240527001replaces 240526901 Refrigerator O-Ring | - |
| 149 | – | 240331607 Fan Shroud | - |
| 150 | – | 240394203 Refrigerator Insulation | - |
| 151 | | Refrigerator Water Cover | - |
| 198 |  | Refrigerator Water Filter Rod Retainer | - |
| 199 | | 240397501NLA Refrigerator Water Filter Bypass Valve | Discontinued |
| 199 |  | Refrigerator Filter Spring | $37.48 Parts Dr |
| 200 | | Refrigerator Light Pipe | - |
| 201 | – | 240398504 Refrigerator Label | - |
| NI |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| NI | | Refrigerator Drain Tube Heater | - |
| NI | – | 240470401 Refrigerator Connector | - |
| NI | | Refrigerator Control Box Wire Harness | - |
| NI | | Refrigerator Guard | $59.32 ApplianceParts Pro |
| NI |  | 5304455649replaces 5303001259 Refrigerator Screw | $12.95 ApplianceParts Pro |
