Model
Kenmore 253.54363400
Refrigerator (Kenmore 25354363400)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.54363400Refrigerator (Kenmore 25354363400)
9 diagrams307 parts
Parts Sections (9)
Diagram

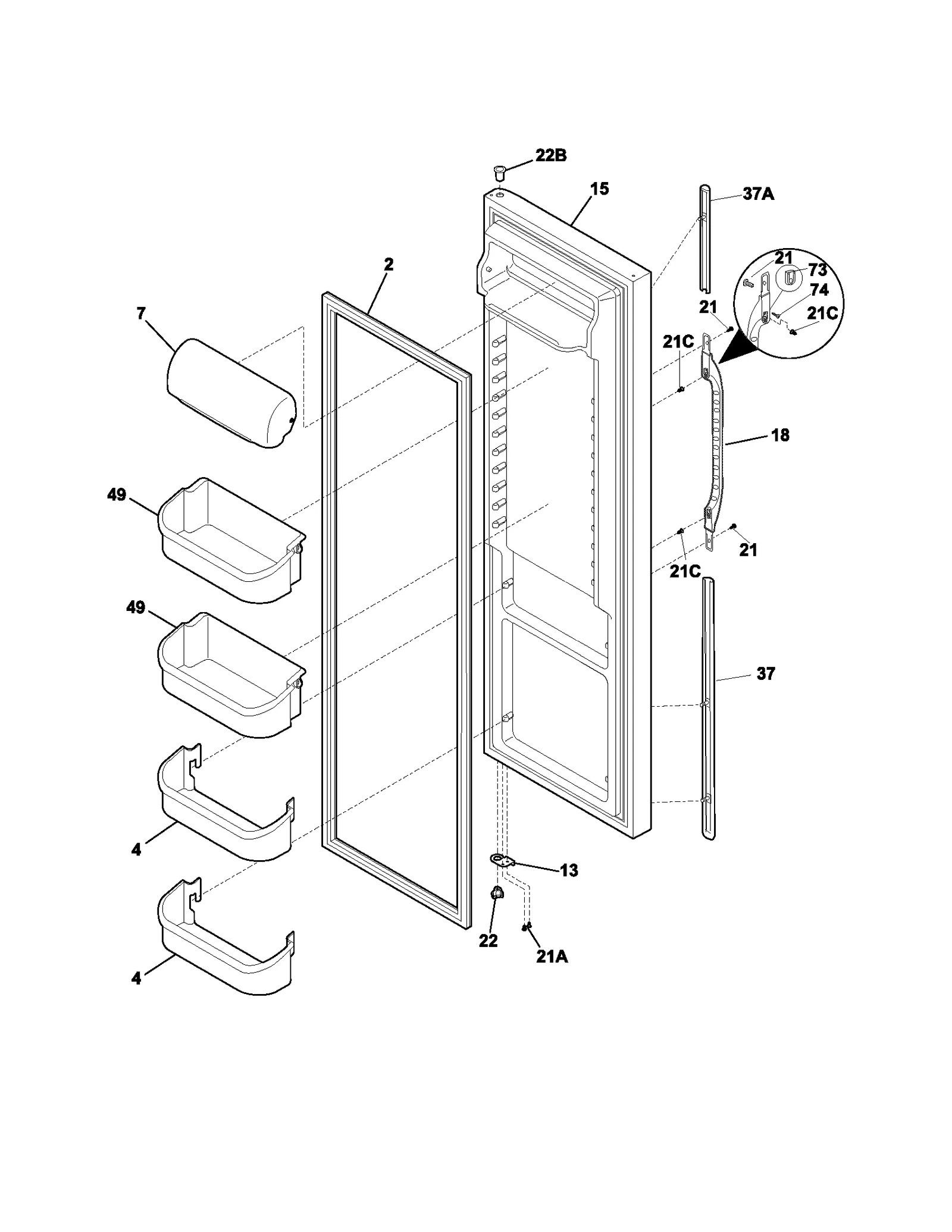

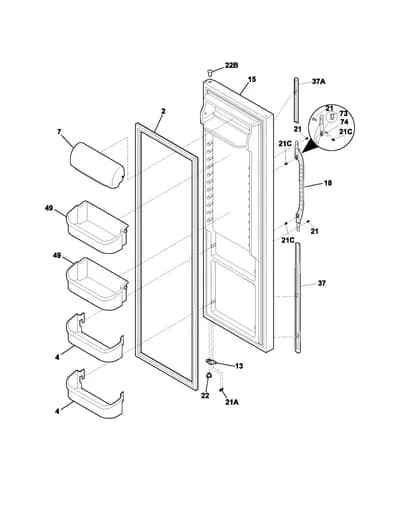

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

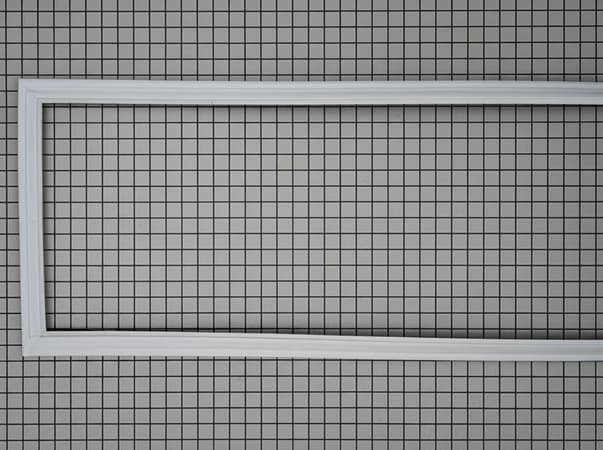

| 2 |  | 241786015replaces 241569807 Refrigerator Gasket | $51.60 Part Advantage |
| 4 |  | Refrigerator Door Bin | $42.07 Part Advantage |
| 7 |  | 240338313replaces 240338312 Refrigerator Dairy Door | $46.74 Part Advantage |
| 13 |  | Refrigerator Door Stop (Black) | $34.87 Part Advantage |
| 15 | – | 240451993 Refrigerator Door | - |
| 18 |  | Refrigerator Door Handle (Gray) | Discontinued |
| 21 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 21A |  | 5303323137replaces 240598401 Refrigerator Freezer Door Handle Screw | $8.39 ApplianceParts Pro |
| 21C | | 240521302NLA Refrigerator Freezer Door Handle Screw | Discontinued |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 26 |  | 3204522replaces 5303288969 Container-eg | $81.84 PartSelect |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 49 |  | Frigidaire Refrigerator Door Bin | $55.87 Part Advantage |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
