Model
Kenmore 253.54629407
Refrigerator (Kenmore 25354629407)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.54629407Refrigerator (Kenmore 25354629407)
9 diagrams336 parts

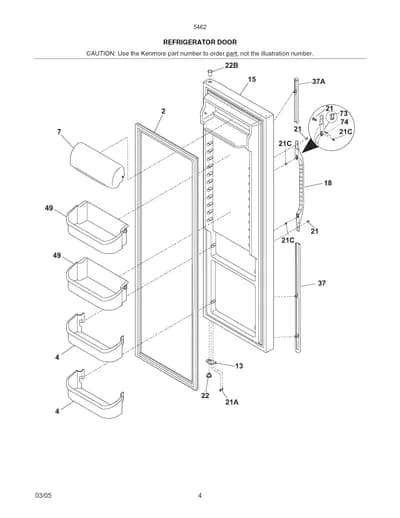

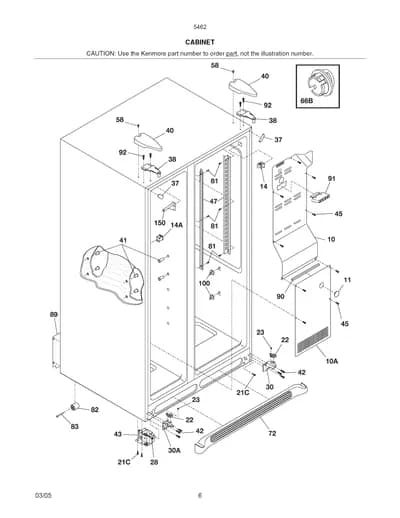

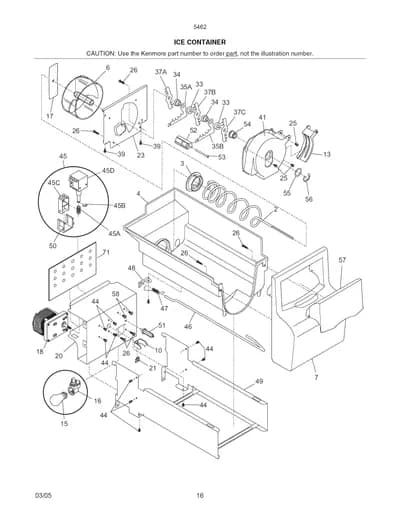

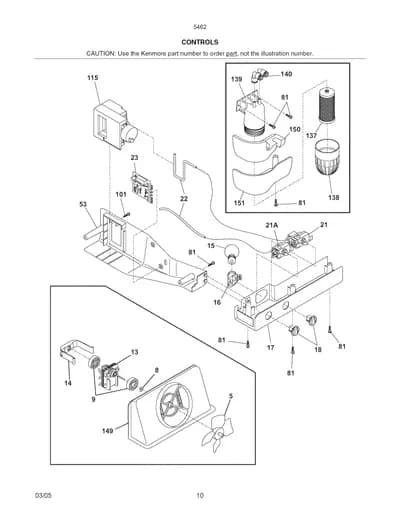

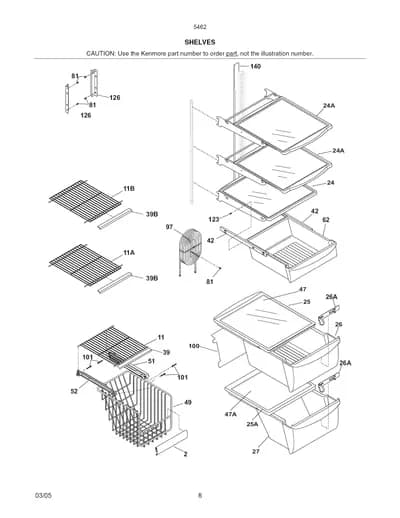

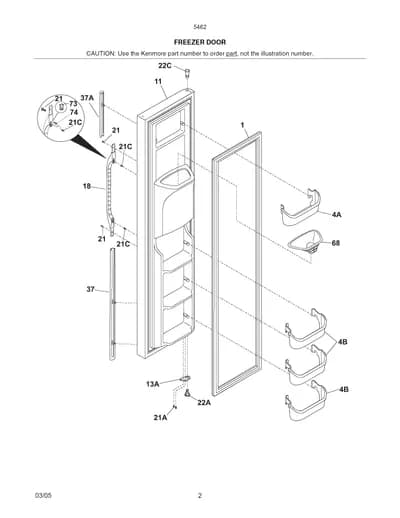

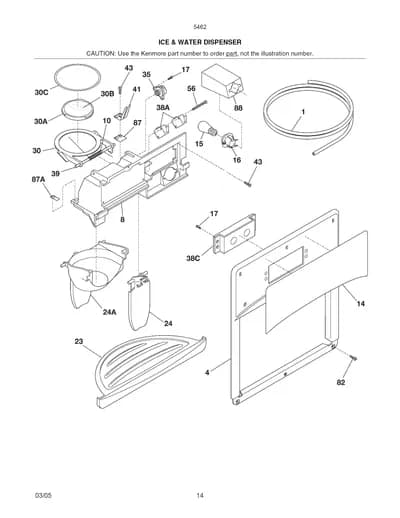

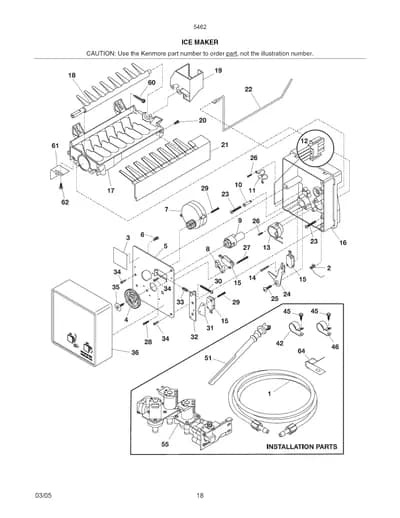

Parts Sections (9)
Diagram

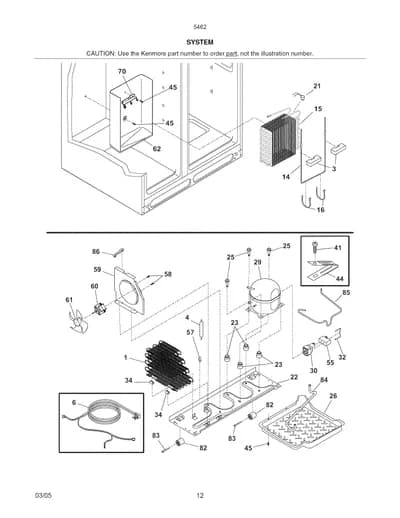

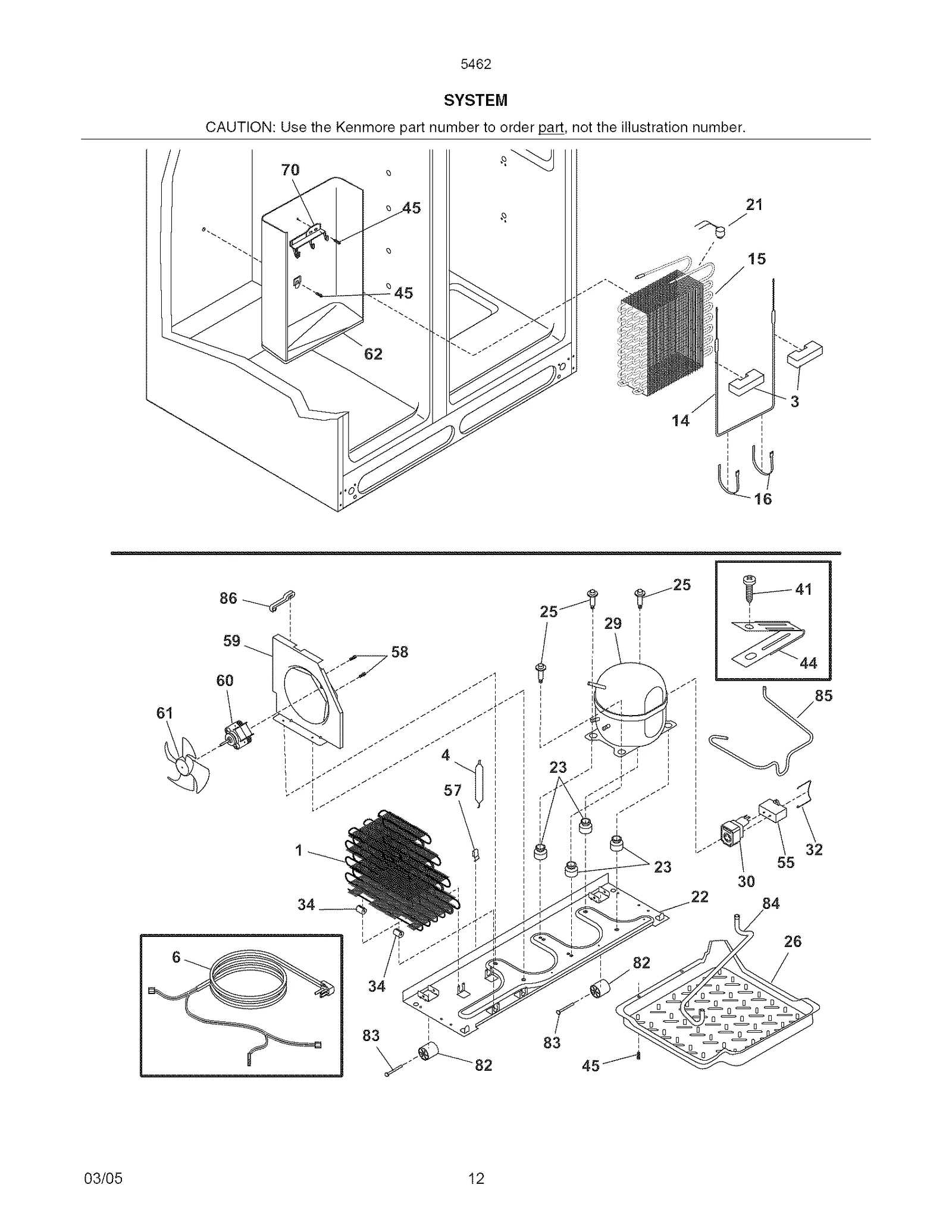

SYSTEM
Parts in SYSTEM
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304526057replaces 240333603 Refrigerator Condenser | $89.78 Parts Dr |
| 3 |  | 218679614replaces 218679607 Block Evaporator | $10.28 Parts Dr |
| 4 |  | 5303305677replaces 218944001 Refrigerator Filter Drier | $13.17 Parts Dr |
| 6 |  | 241586801NLA Refrigerator Wire Harness | Discontinued |
| 14 |  | 5303918255replaces 5303918253 Defrost Heater | $59.22 Part Advantage |
| 15 |  | Refrigerator Evaporator | $295.43 Parts Dr |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 21 |  | Refrigerator Defrost Bi-Metal Thermostat | $14.83 Part Advantage |
| 22 |  | 240330011replaces 240330008 Refrigerator Compressor Base | $91.62 ApplianceParts Pro |
| 23 |  | Refrigerator Compressor Grommet | $24.59 Part Advantage |
| 25 | | Compressor Screw | Discontinued |
| 26 |  | 241697603replaces 241637401 Refrigerator Defrost Pan | $50.49 Parts Dr |
| 29 |  | 5304475102replaces 5303918303 Refrigerator Compressor | $280.36 Parts Dr |
| 30 | | 241524608NLA Refrigerator PTC Starter | Discontinued |
| 32 | | CLAMP,ELEC C | - |
| 34 |  | Refrigerator Condenser Coil Grommet | $15.28 ApplianceParts Pro |
| 41 |  | 240555002replaces 240555001 Screw-#8-3 | $7.77 Part Advantage |
| 44 |  | 5303001199replaces 215174700 Refrigerator Clamp | - |
| 45 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 55 |  | 5304464438replaces 218909913 Chest Freezer Run Capacitor | $18.41 Part Advantage |
| 57 |  | Refrigerator Wire Harness Clip | - |
| 58 | | 240555002replaces 218897002 Screw | $7.77 Part Advantage |
| 59 | | Refrigerator Condenser Bracket | - |
| 60 |  | 5303918774replaces 240525402 Motor | $101.83 Part Advantage |
| 61 |  | 240524102replaces 240524101 Refrigerator Condenser Fan | $14.36 Part Advantage |
| 62 |  | 5304481642replaces 240429402 Trough-dra | - |
| 70 |  | Bracket Evaporator | - |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | 5304455655replaces 5303316859 Refrigerator Roller Wheel Pin | $22.41 Parts Dr |
| 84 |  | 241957901replaces 5304421068 Refrigerator Drain Tube | $41.01 Parts Dr |
| 85 |  | 241856901replaces 240553501 Refrigerator Connector Tube | $53.95 ApplianceParts Pro |
| 86 |  | Refrigerator Condenser Motor Spacer | $46.72 ApplianceParts Pro |
| NI |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| NI |  | Tappan Refrigerator Foam Tape | $21.46 Parts Dr |
| NI |  | 240359403replaces 240359401 Fan Screw | - |
| NI | | Refrigerator Wire Harness | - |
| NI | | Refrigerator Wire Harness | - |
| NI |  | 5303918328replaces 5303918213 Heat Exchanger | $204.47 Part Advantage |
| NI | | 5303918222NLA Refrigerator Hot Tube Repair Kit | Discontinued |
