Model
Kenmore 253.54679301
Refrigerator (Kenmore 25354679301)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.54679301Refrigerator (Kenmore 25354679301)
9 diagrams358 parts

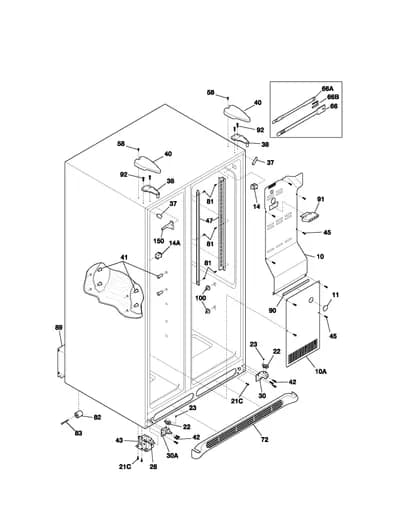

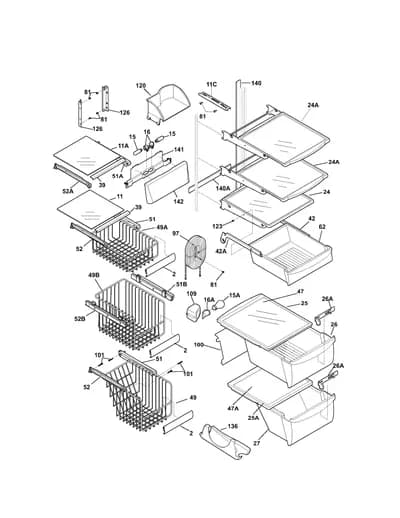

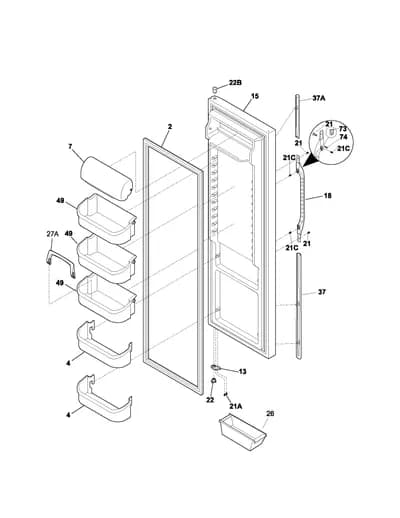

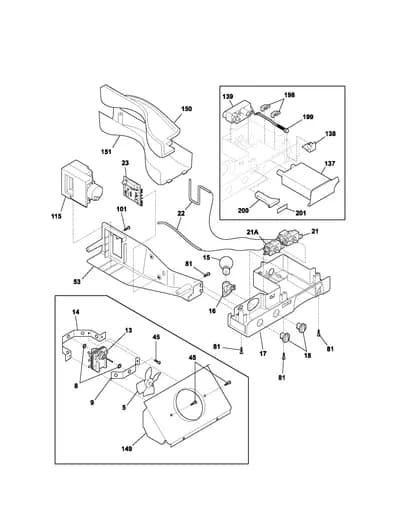

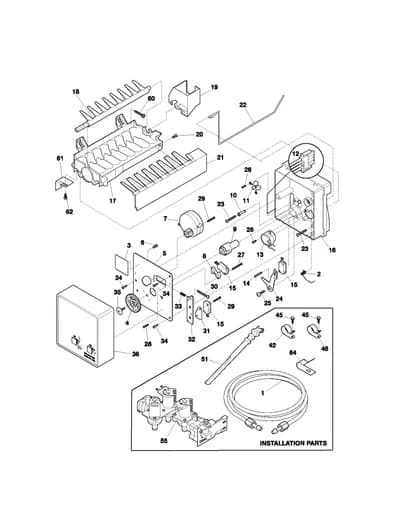

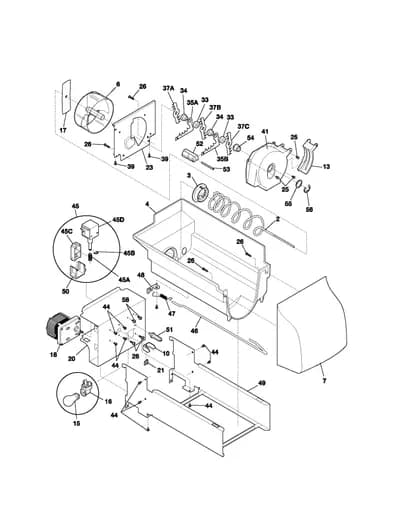

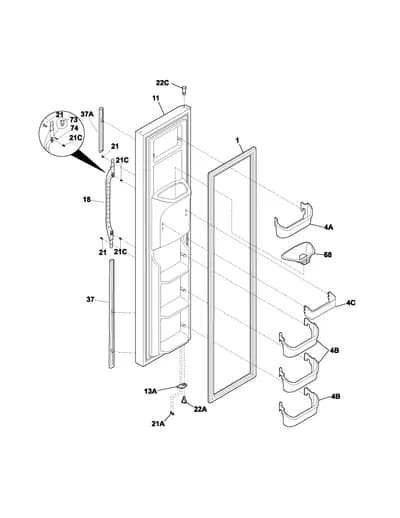

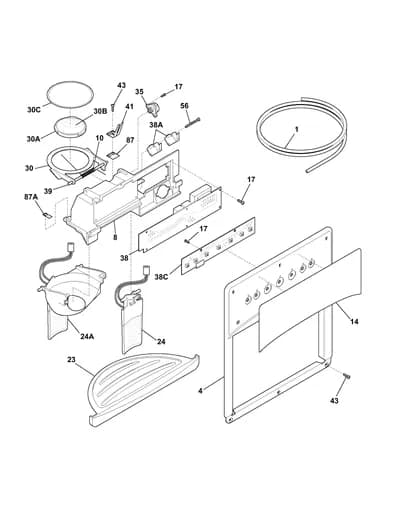

Parts Sections (9)
Diagram

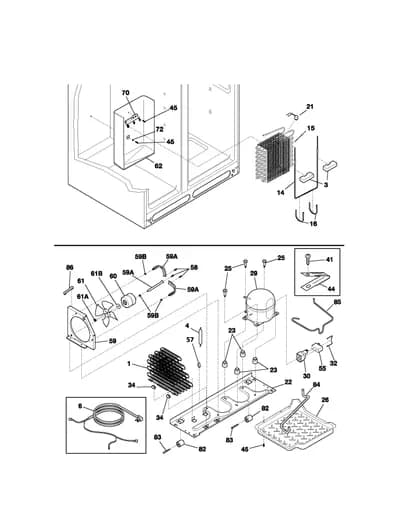

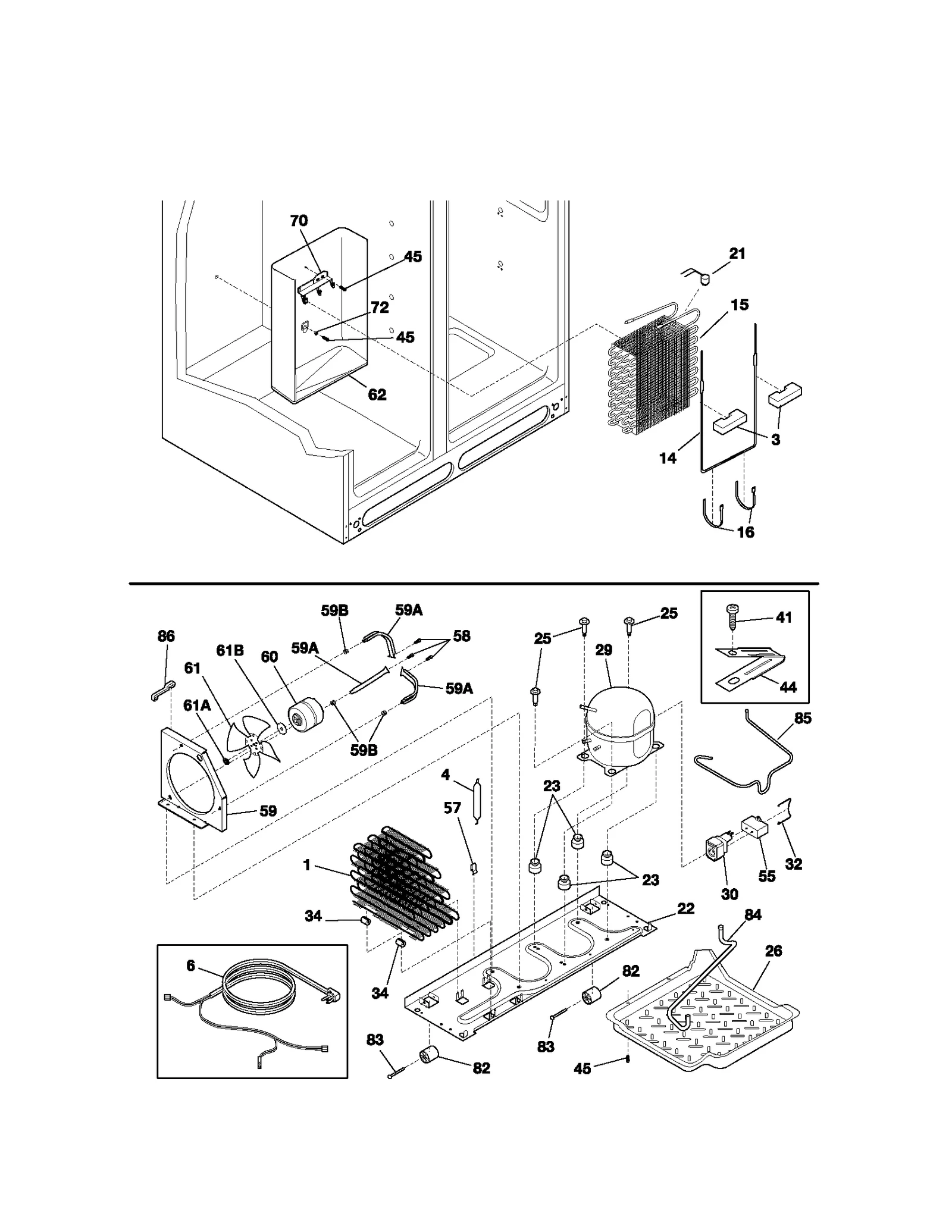

SYSTEM
Parts in SYSTEM
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304526057replaces 240333603 Refrigerator Condenser | $89.78 Parts Dr |
| 3 |  | 218679614replaces 218679607 Block Evaporator | $10.28 Parts Dr |
| 4 |  | 5303305677replaces 218944001 Refrigerator Filter Drier | $13.17 Parts Dr |
| 6 |  | Refrigerator Wire Harness | - |
| 14 |  | 5303918255replaces 5303918253 Defrost Heater | $59.22 Part Advantage |
| 15 |  | Refrigerator Evaporator | $295.43 Parts Dr |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 21 |  | Refrigerator Defrost Bi-Metal Thermostat | $14.83 Part Advantage |
| 22 |  | 240330011replaces 240330008 Refrigerator Compressor Base | $91.62 ApplianceParts Pro |
| 23 |  | Refrigerator Compressor Grommet | $24.59 Part Advantage |
| 25 | | Compressor Screw | Discontinued |
| 26 |  | 241697603replaces 240332602 Refrigerator Defrost Pan | $50.49 Parts Dr |
| 29 |  | 5304475102replaces 5303918292 Refrigerator Compressor | $280.36 Parts Dr |
| 30 |  | 5304491941replaces 218721119 Refrigerator Start Relay | $68.54 Part Advantage |
| 32 |  | Electrolux Refrigerator Start Relay Retainer Clip | - |
| 34 |  | Refrigerator Condenser Coil Grommet | $15.28 ApplianceParts Pro |
| 41 |  | 240555002replaces 240555001 Screw-#8-3 | $7.77 Part Advantage |
| 44 |  | 5303001199replaces 215174700 Refrigerator Clamp | - |
| 45 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 55 |  | 5304464438replaces 218909913 Chest Freezer Run Capacitor | $18.41 Part Advantage |
| 57 |  | Refrigerator Wire Harness Clip | - |
| 58 | | 240555002replaces 215004600 Screw-cond F | $7.77 Part Advantage |
| 59 | | Shroud Control | - |
| 59A |  | Refrigerator Condenser Fan Motor Bracket | $8.74 RepairClinic |
| 59B | | Grommet Bracket | - |
| 60 | | 240334002NLA Refrigerator Condenser Fan Motor | Discontinued |
| 61 | | Refrigerator Condenser Fan Blade | - |
| 61A | | Refrigerator Nut | - |
| 61B | | Grommet | - |
| 62 |  | 5304481642replaces 240429402 Trough-dra | - |
| 70 |  | Bracket Evaporator | - |
| 72 |  | Refrigerator Door Handle Mounting Grommet | - |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | 5304455655replaces 5303316859 Refrigerator Roller Wheel Pin | $22.41 Parts Dr |
| 84 |  | 241957901replaces 5304421068 Refrigerator Drain Tube | $41.01 Parts Dr |
| 85 |  | Tube-conne | Discontinued |
| 86 |  | Refrigerator Condenser Motor Spacer | $46.72 ApplianceParts Pro |
| NI |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| NI |  | Tappan Refrigerator Foam Tape | $21.46 Parts Dr |
| NI |  | 240359403replaces 240359401 Fan Screw | - |
| NI | – | 241508101 Wire Harness | - |
| NI | | Wiring Harness | - |
| NI |  | 5303918328replaces 5303918213 Heat Exchanger | $204.47 Part Advantage |
| NI | | 5303918222NLA Refrigerator Hot Tube Repair Kit | Discontinued |
