Kenmore 253.54743303
Refrigerator (Kenmore 25354743303)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.54743303Refrigerator (Kenmore 25354743303)
9 diagrams309 parts

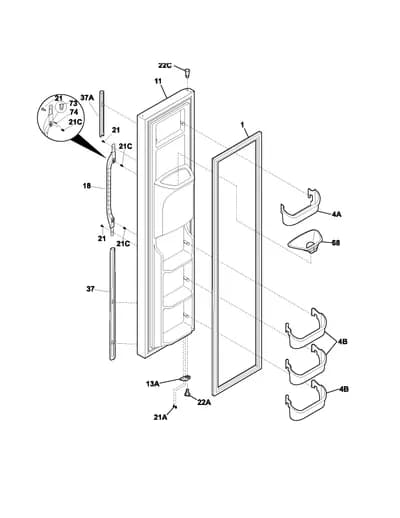

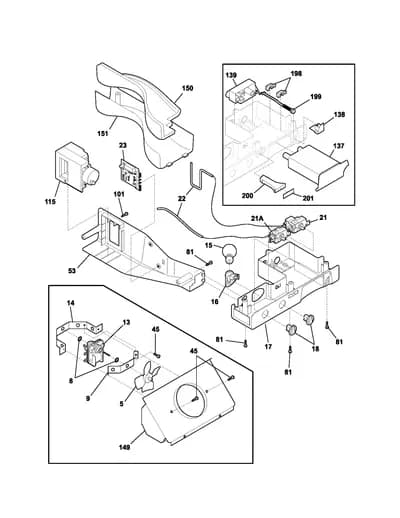

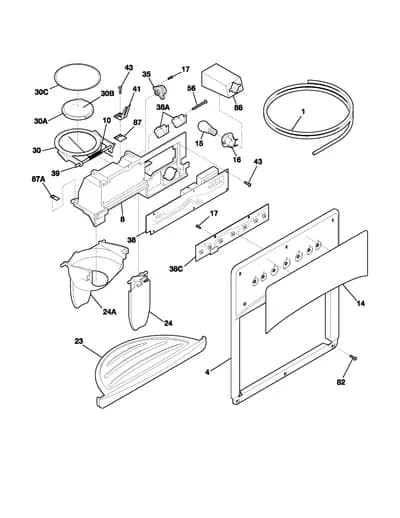

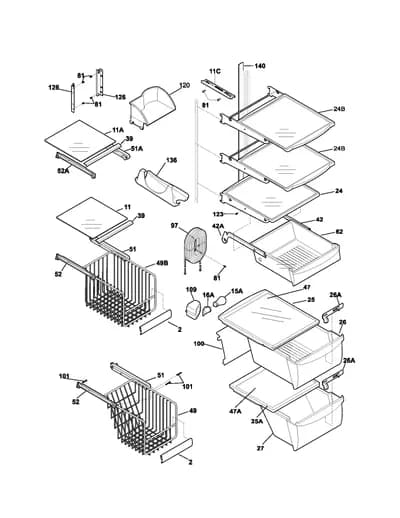

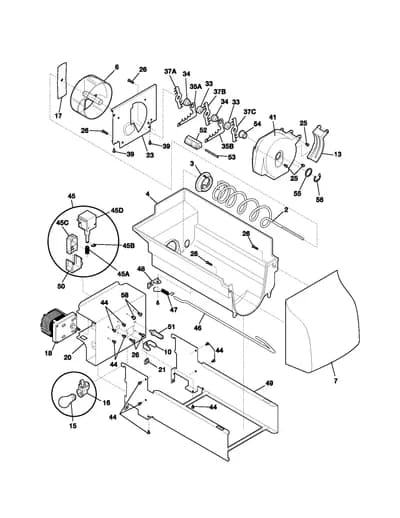

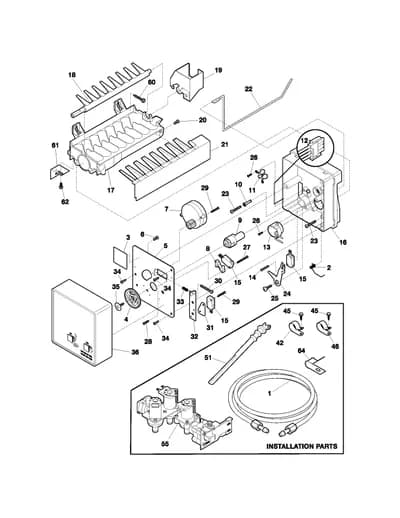

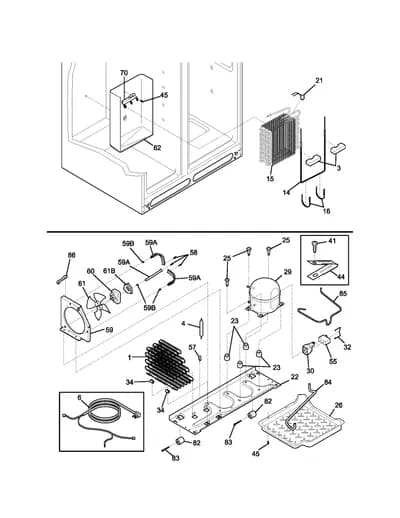

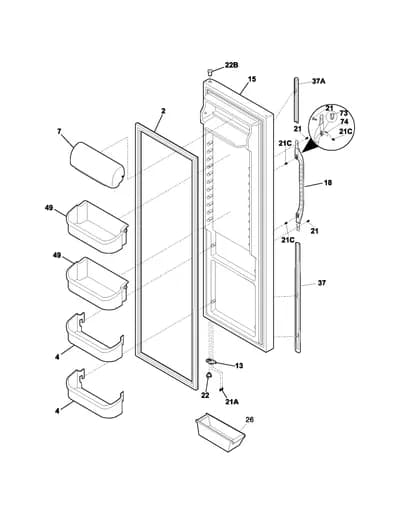

Parts Sections (9)
Diagram

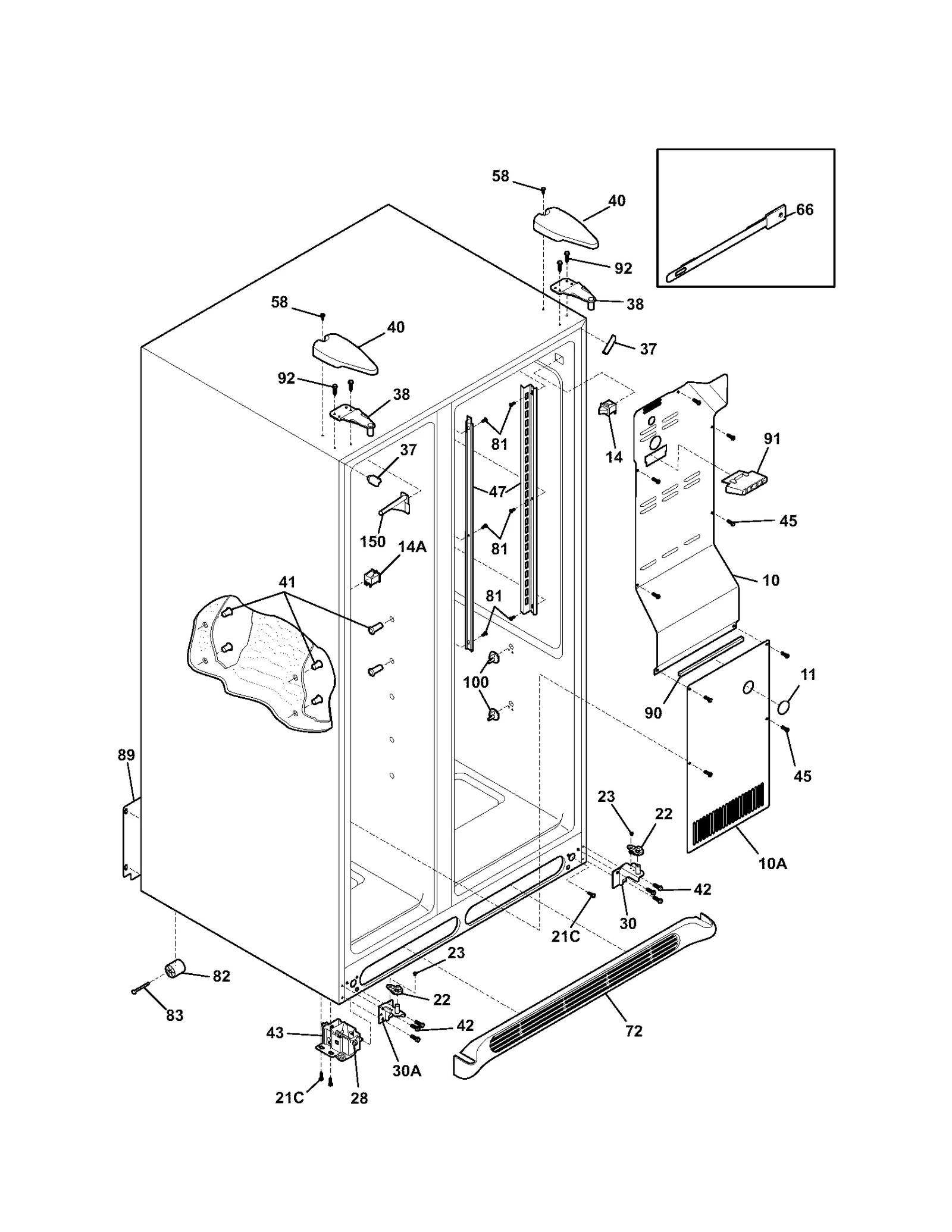

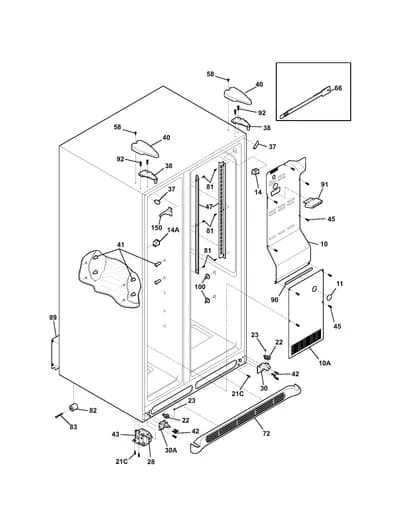

CABINET
Parts in CABINET
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 |  | 240435912replaces 240435906 Cover-air Du | $87.95 ApplianceParts Pro |
| 10A |  | Refrigerator Control Cover Evaporator | - |
| 11 |  | Refrigerator Cabinet Hole Plug | $24.61 Part Advantage |
| 14 |  | Refrigerator Light Switch | $43.18 Parts Dr |
| 14A |  | 241547902replaces 215486600 Refrigerator Light Switch | $14.41 Part Advantage |
| 21C |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| 22 |  | Refrigerator Door Closer Plate (White) | $32.80 Part Advantage |
| 23 | | 5304520331replaces 240402701 Refrigerator Screw, #10-32 x 1/4-in | - |
| 28 |  | 5304499445replaces 240335501 Refrigerator Bolt Roller | $21.46 Parts Dr |
| 30 |  | 5303918455replaces 240419103 Refrigerator Hinge Kit | $81.30 Part Advantage |
| 30A | | 5303918455replaces 240419104 Refrigerator Bracket | $81.30 Part Advantage |
| 37 |  | 242161202replaces 240337603 Refrigerator Corner Trim (Black) | $5.48 Parts Dr |
| 38 | – | 240327204 Refrigerator Hinge Bracket | - |
| 40 |  | Refrigerator Door Hinge Cover | $32.09 Parts Dr |
| 41 |  | 241550801replaces 240358701 Grommet | $34.43 Part Advantage |
| 42 |  | 240578902replaces 240578901 Refrigerator Hinge Screw | $10.31 Parts Dr |
| 43 | | 5304499445replaces 240335003 Refrigerator Roller Assembly | $21.46 Parts Dr |
| 45 |  | 241500303replaces 241500301 Refrigerator Lower Evaporator Cover Screw | $7.48 ApplianceParts Pro |
| 47 | | 240349402NLA Refrigerator Shelf Bracket | Discontinued |
| 58 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 66 | | Refrigerator Pantry Drawer Temperature Control Slide | $43.94 RepairClinic |
| 72 |  | 240324411replaces 240324406 Kick Grille | $44.06 Parts Dr |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | 5304455655replaces 5303316859 Refrigerator Roller Wheel Pin | $22.41 Parts Dr |
| 89 |  | 5304520905replaces 240326104 Refrigerator Access Cover | $41.96 ApplianceParts Pro |
| 90 |  | Refrigerator Evaporator Cover Seal | $7.07 ApplianceParts Pro |
| 91 |  | Refrigerator Ice Maker Air Duct | $51.95 ApplianceParts Pro |
| 92 |  | 241710601replaces 216850900 Screw | $7.79 Part Advantage |
| 100 |  | 241993001replaces 240350802 Support-cr | $5.02 Part Advantage |
| 100 |  | 241993101replaces 240423701 Support-cr | $3.13 Part Advantage |
| 150 | | Guide Control | - |
| NI |  | 241550701replaces 240358801 Grommet | $9.83 Part Advantage |
| NI |  | 240494001replaces 240479601 Button Plug | $9.83 Part Advantage |
| NI | | Lower Shim | - |
| NI |  | 5303321321replaces 5303305345 Touch Paint | $12.32 Part Advantage |
| NI |  | Clamp Tube (Black) | $14.76 ApplianceParts Pro |
