Model
Kenmore 253.55683409
Refrigerator (Kenmore 25355683409)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.55683409Refrigerator (Kenmore 25355683409)
9 diagrams357 parts

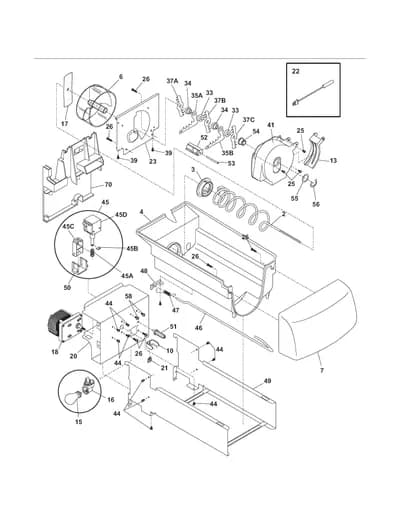

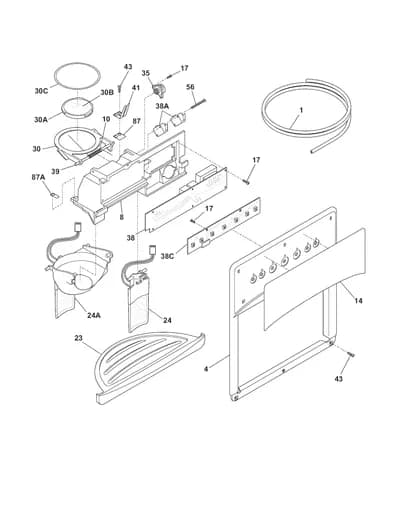

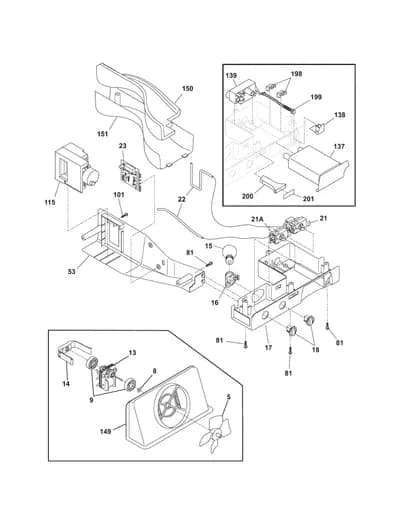

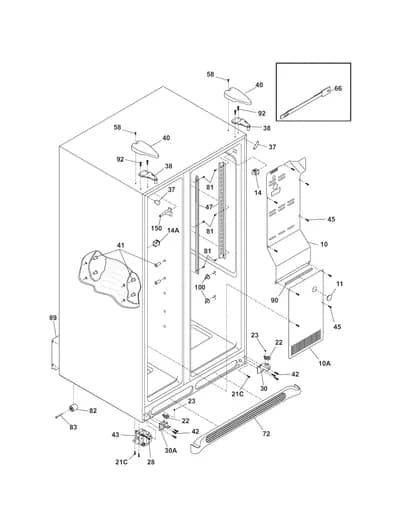

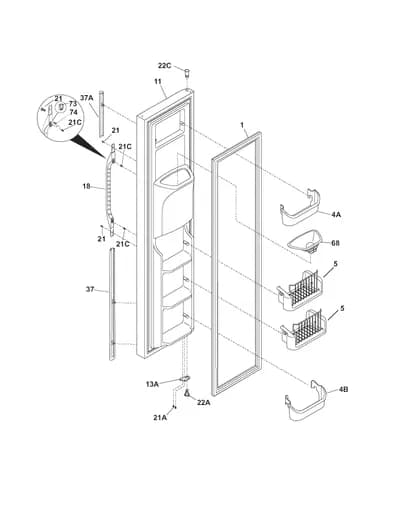

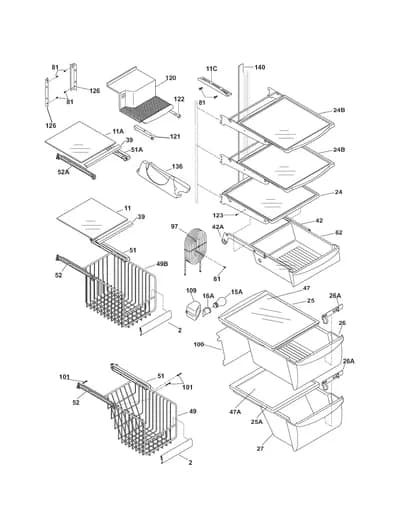

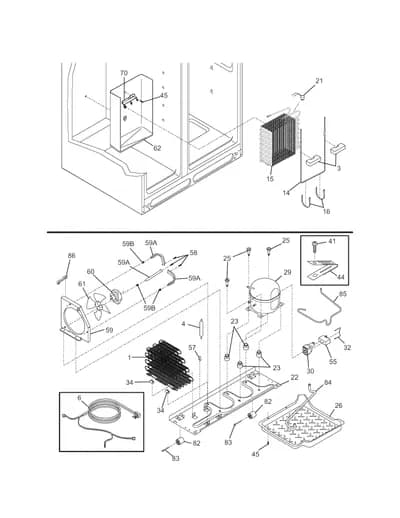

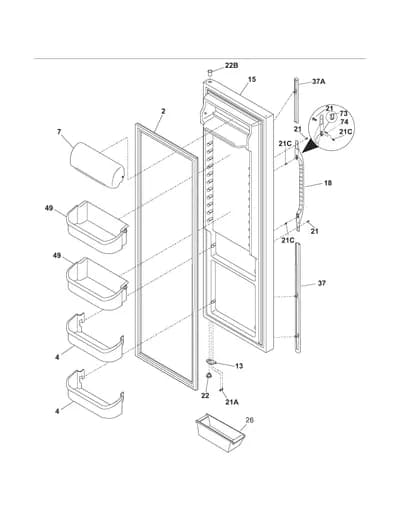

Parts Sections (9)
Diagram

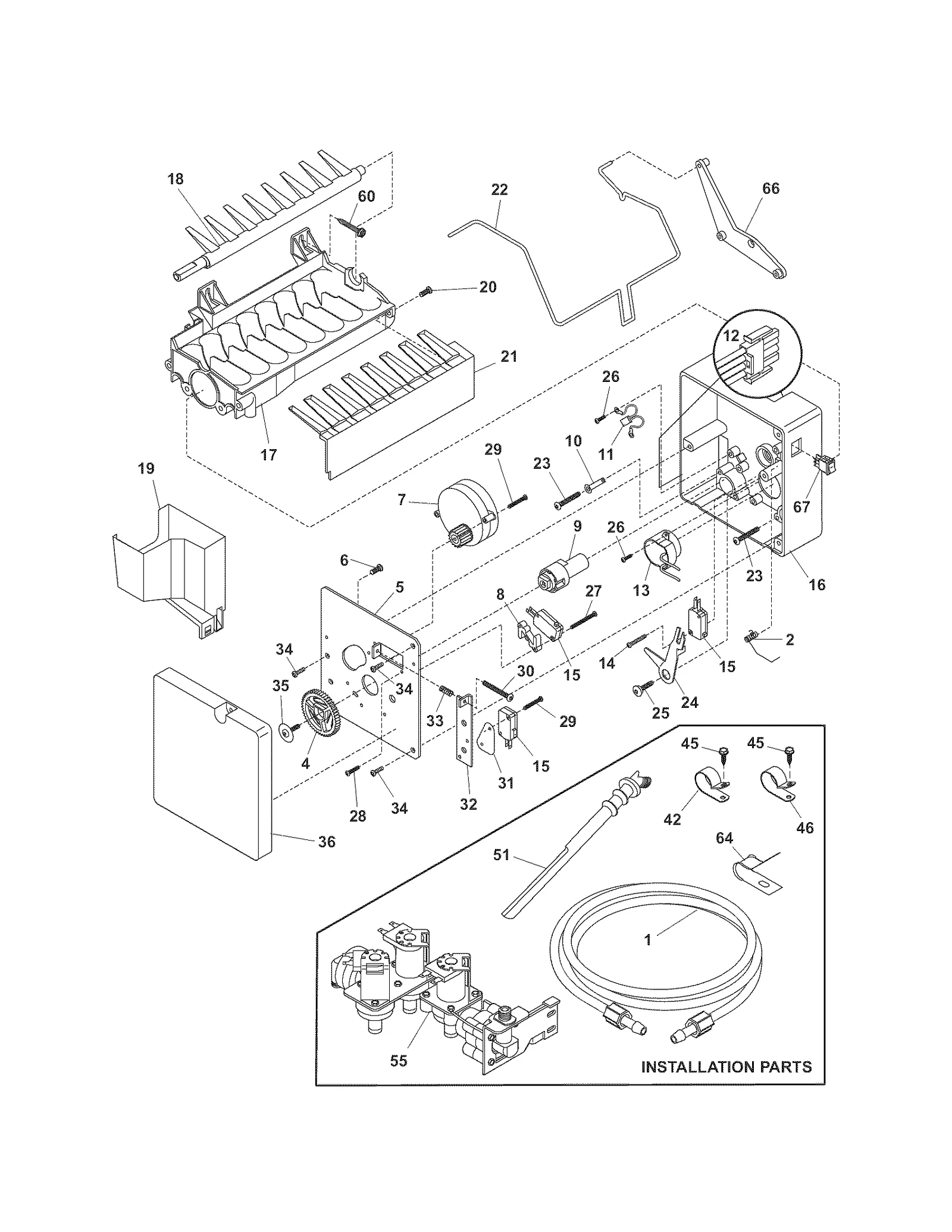

ICE MAKER
Parts in ICE MAKER
57 parts

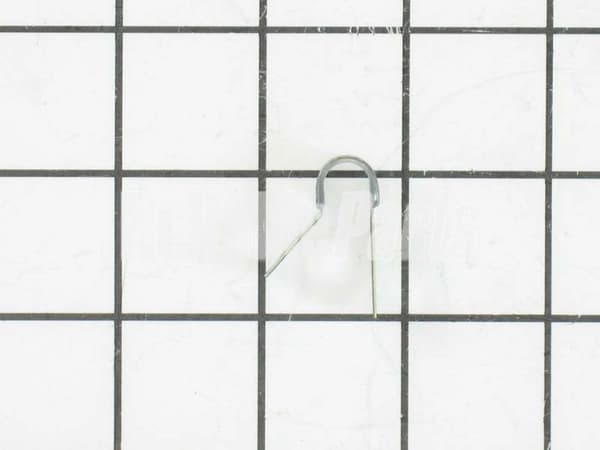

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Water Tubing | $34.86 Part Advantage |
| 2 |  | Refrigerator Spring | - |
| 4 |  | 5304469403replaces 3206301 Gear | $14.14 Parts Dr |
| 5 | – | 5304436604 Refrigerator Mounting Plate | - |
| 6 |  | 218359202replaces 3206305 Screw | $8.52 Parts Dr |
| 7 |  | 5304469407replaces 5304436619 Ice Maker Motor | - |
| 8 | | 5304469404replaces 3206312 Spacer | $7.59 RepairClinic |
| 9 |  | Refrigerator Detent | $8.37 RepairClinic |
| 10 | | Clamp | $12.63 RepairClinic |
| 11 |  | Refrigerator Ice Maker Thermal Cut-Off | - |
| 12 | | 5304436614NLA Refrigerator Wiring Harness | Discontinued |
| 13 | | 5304436613NLA Refrigerator Thermostat | Discontinued |
| 14 | – | 5304420652 Screw | - |
| 15 |  | 5304456667replaces 3206324 Switch | $57.85 Parts Dr |
| 16 | | Refrigerator Housing | - |
| 17 |  | 5303918344replaces 5304436617 Refrigerator Ice Maker Ice Mold | $86.52 Parts Dr |
| 18 | | Refrigerator Ice Ejector | - |
| 19 | | 5304436606NLA Refrigerator Ice Maker Fill Cup | Discontinued |
| 20 | – | 5304408581 Refrigerator Screw | - |
| 21 |  | 5304473031replaces 5304436608 Ice Stripper | - |
| 22 | | 5304436602NLA Refrigerator Shut-Off Arm | Discontinued |
| 23 |  | Refrigerator Ice Maker Mounting Screw | - |
| 24 |  | 5304456675replaces 3206335 Arm | $49.35 ApplianceParts Pro |
| 25 | | 5304456676replaces 3206336 Screw | $15.34 ApplianceParts Pro |
| 26 | | Screw-ther | - |
| 27 | – | 3206338 Screw | - |
| 28 | – | 3206339 Screw | - |
| 29 | – | 3206323 Refrigerator Ice Maker Motor Screw | - |
| 30 | – | 3206341 Screw | - |
| 31 | | 5304469406replaces 3206342 Insulator | - |
| 32 |  | Refrigerator Ice Maker Fill Switch Bracket | $9.34 RepairClinic |
| 33 | – | 5304436615 Thermostat Spring | - |
| 34 | – | 5304420655 Screw | - |
| 35 | – | 5304408585 Screw | - |
| 36 |  | Refrigerator Ice Maker Cover | - |
| 42 |  | Refrigerator Wire Harness Clamp | - |
| 45 |  | 5304455651replaces 5303001343 Screw | $7.77 Part Advantage |
| 46 |  | Refrigerator Water Tubing Clamp | - |
| 51 |  | 241796407replaces 241523503 Water Fill Tube | $14.04 Parts Dr |
| 55 |  | 242252702replaces 240531101 Refrigerator Water Inlet Valve Assembly | $35.68 Parts Dr |
| 60 |  | 5304455852replaces 5303207328 Refrigerator Ice Maker Mounting Screw | $9.63 ApplianceParts Pro |
| 64 |  | 5304455846replaces 5303001549 Clamp | $6.15 Part Advantage |
| 66 | – | 5304436611 Ice Bracket | - |
| 67 |  | 5304465210replaces 5304436612 Refrigerator Switch | $89.59 RepairClinic |
| NI | – | 218515402 Refrigerator Water Tubing Clip | - |
| NI |  | 218709101replaces 218709100 Refrigerator Handle Screw | $5.31 RepairClinic |
| NI |  | Universal/Multiflex (Frigidaire) Refrigerator Inlet Valve to Ice Maker Water Tubing | $52.61 Parts Dr |
| NI |  | Refrigerator Water Tubing | $45.44 Parts Dr |
| NI | | 218976907NLA Refrigerator Water Tubing | Discontinued |
| NI | | Refrigerator Wiring Harness | Discontinued |
| NI |  | 240363602replaces 240363601 Refrigerator Shoulder Screw | $11.35 ApplianceParts Pro |
| NI |  | Refrigerator Water Inlet Valve Cap | $10.53 Parts Dr |
| NI |  | Refrigerator Water Tubing Seal | $11.89 Part Advantage |
| NI |  | Air Deflector | - |
| NI |  | 241587402replaces 241587401 Deflector-ic | - |
| NI | | 5303918344replaces 241627701 I/m Assy | $86.52 Parts Dr |
| NI | | Refrigerator Water Tubing Clamp | $20.37 PartSelect |
