Model
Kenmore 253.56282407
Refrigerator (Kenmore 25356282407)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56282407Refrigerator (Kenmore 25356282407)
10 diagrams330 parts

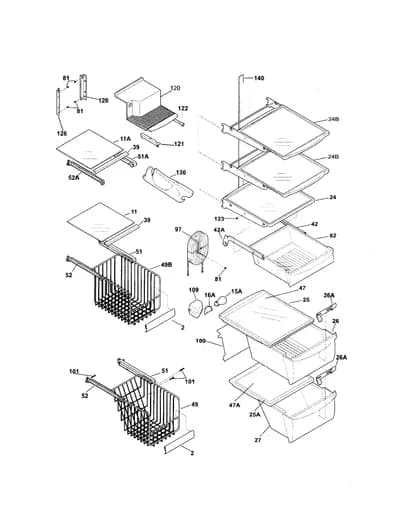

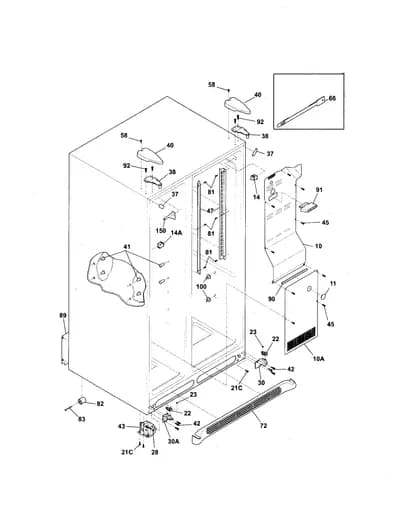

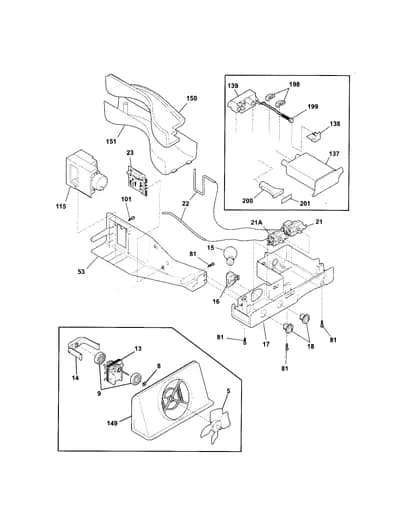

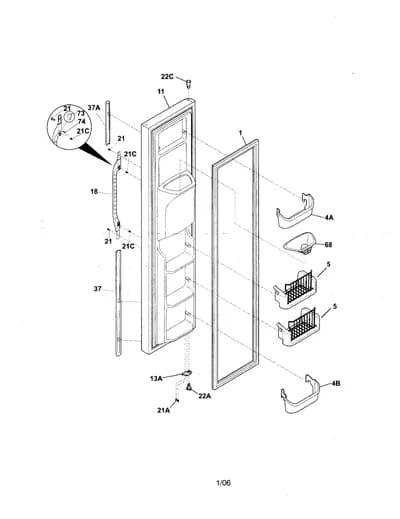

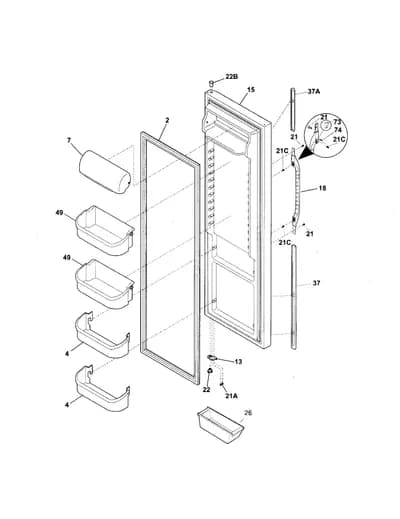

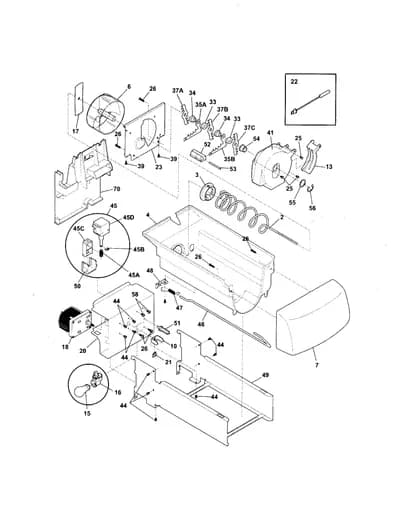

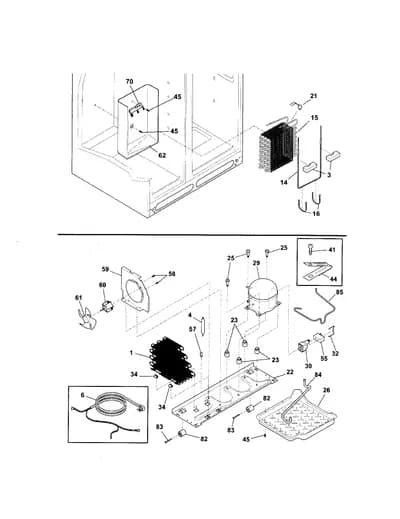

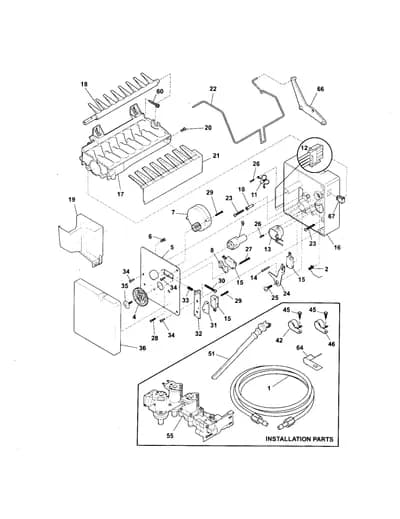

Parts Sections (10)
Diagram

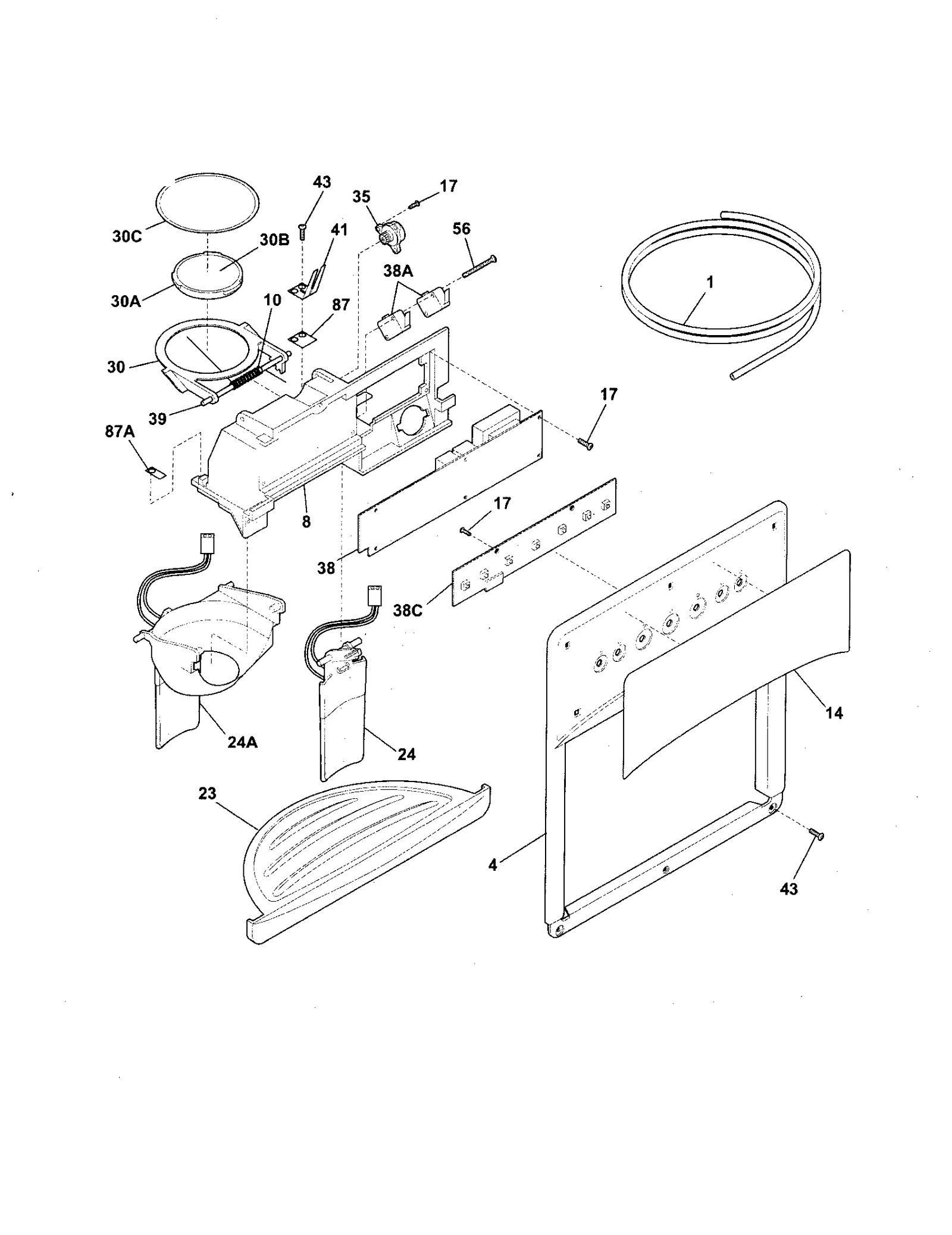

ICE AND WATER DISPENSER
Parts in ICE AND WATER DISPENSER
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Water Tubing | $34.86 Part Advantage |
| 1A |  | Universal/Multiflex (Frigidaire) Refrigerator Inlet Valve to Ice Maker Water Tubing | $52.61 Parts Dr |
| 1B |  | Refrigerator Water Tubing | $45.44 Parts Dr |
| 1C |  | 218976907NLA Refrigerator Water Tubing | Discontinued |
| 1D |  | Refrigerator Water Tubing Seal | $11.89 Part Advantage |
| 4 | | 5304421641NLA Refrigerator Module Cover | Discontinued |
| 4A | | 5304421643NLA Refrigerator Dispenser Cover (Black) | Discontinued |
| 8 | | Dispenser Module | Discontinued |
| 8A | | 5304424549NLA Dispenser Module | Discontinued |
| 10 |  | 241688901replaces 5304426649 Refrigerator Spring | $13.10 Parts Dr |
| 14 | | Refrigerator Label Module | - |
| 14A |  | Refrigerator Dispenser Control Overlay (Black) | - |
| 17 |  | 241679801replaces 5304421619 Refrigerator Screw | $10.70 ApplianceParts Pro |
| 23 | | Refrigerator Drip Tray | Discontinued |
| 23A |  | 241659103replaces 240411703 Refrigerator Drip Tray | - |
| 24 |  | 241685701replaces 5304433615 Refrigerator Actuator | $112.79 Parts Dr |
| 24A | | Refrigerator Actuator | Discontinued |
| 24AA |  | 241682303replaces 5304433610 Refrigerator Actuator | $124.90 Parts Dr |
| 24B |  | 241685703replaces 5304433613 Refrigerator Water Actuator | $78.62 Part Advantage |
| 30 |  | 241688401replaces 5304421628 Refrigerator Door Assembly | $28.71 Part Advantage |
| 30A |  | 241688501replaces 5304421624 Door Cente | $30.64 Part Advantage |
| 30B |  | 241688601replaces 5304421625 Refrigerator Insulation | $36.54 Part Advantage |
| 30C |  | 241688701replaces 5304421629 Refrigerator Door Seal | $22.27 Part Advantage |
| 35 |  | 241689301replaces 5304421620 Damper-rot | - |
| 38 |  | Refrigerator Electronic Control Board | Discontinued |
| 38A |  | 241689106replaces 5304421617 Switch-mic | $4.62 Part Advantage |
| 38C | | 5304432170NLA Refrigerator Control Board | Discontinued |
| 38CA | | Harness Ring | Discontinued |
| 39 |  | 241688801replaces 5304421627 Refrigerator Hinge Pin | $29.49 Parts Dr |
| 41 |  | 241689001replaces 5304421829 Spring-act | $15.13 Parts Dr |
| 43 |  | 5304453707replaces 240363401 Screw-#8-1 | $8.60 Part Advantage |
| 56 |  | 241689201replaces 5304421830 Refrigerator Dispenser Micro-Switch Screw | $11.59 ApplianceParts Pro |
| 87 |  | 241688302replaces 5304421622 Bearing Pl | $13.23 Parts Dr |
| 87A |  | 241688301replaces 5304421621 Bearing Pl | $12.95 Parts Dr |
