Model
Kenmore 253.56289407
Refrigerator (Kenmore 25356289407)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56289407Refrigerator (Kenmore 25356289407)
10 diagrams330 parts

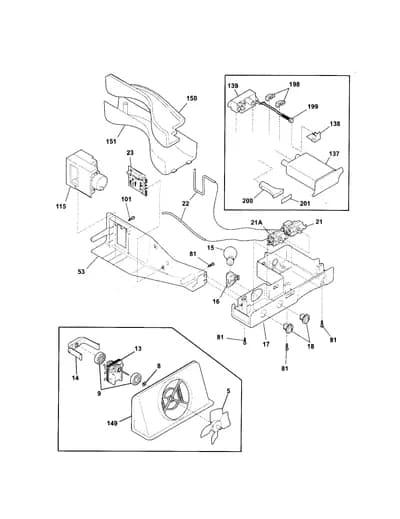

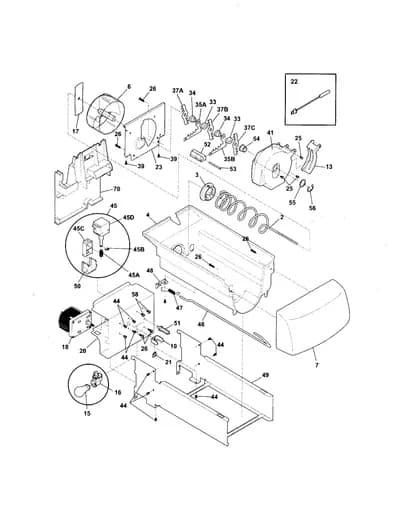

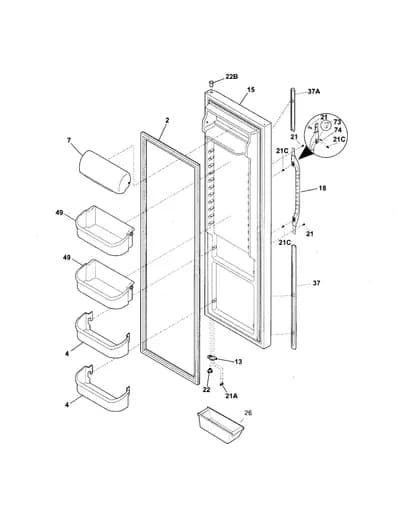

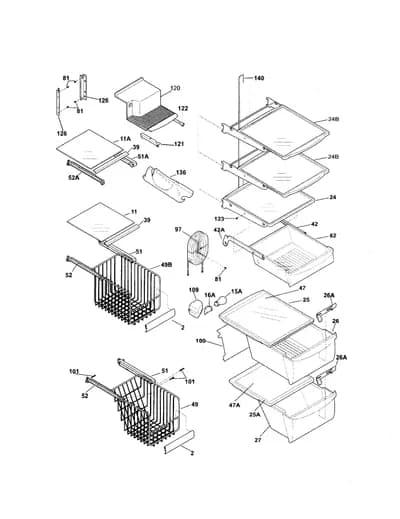

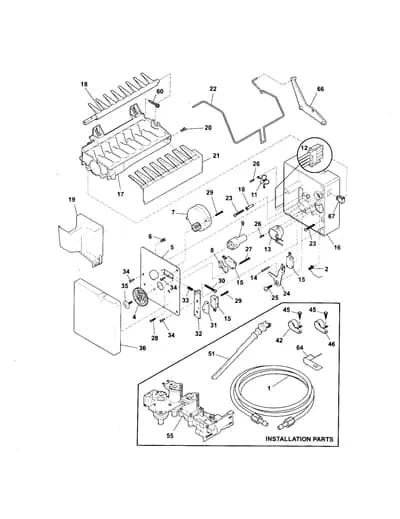

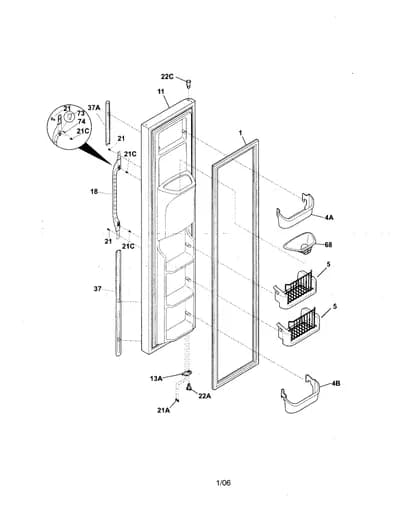

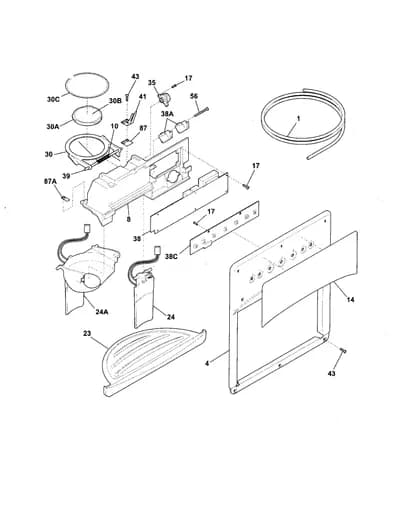

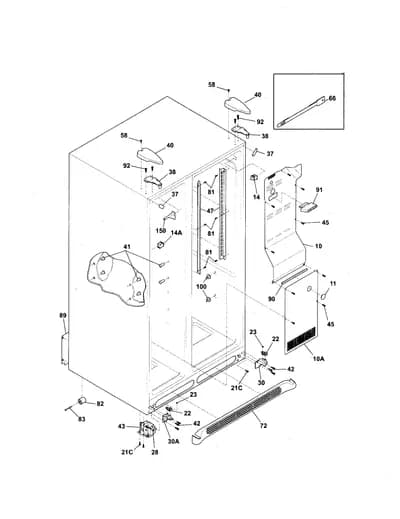

Parts Sections (10)
Diagram

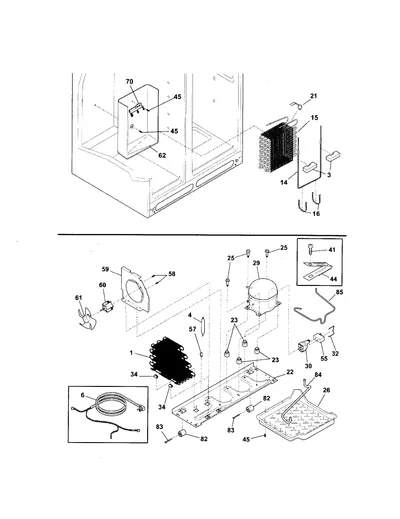

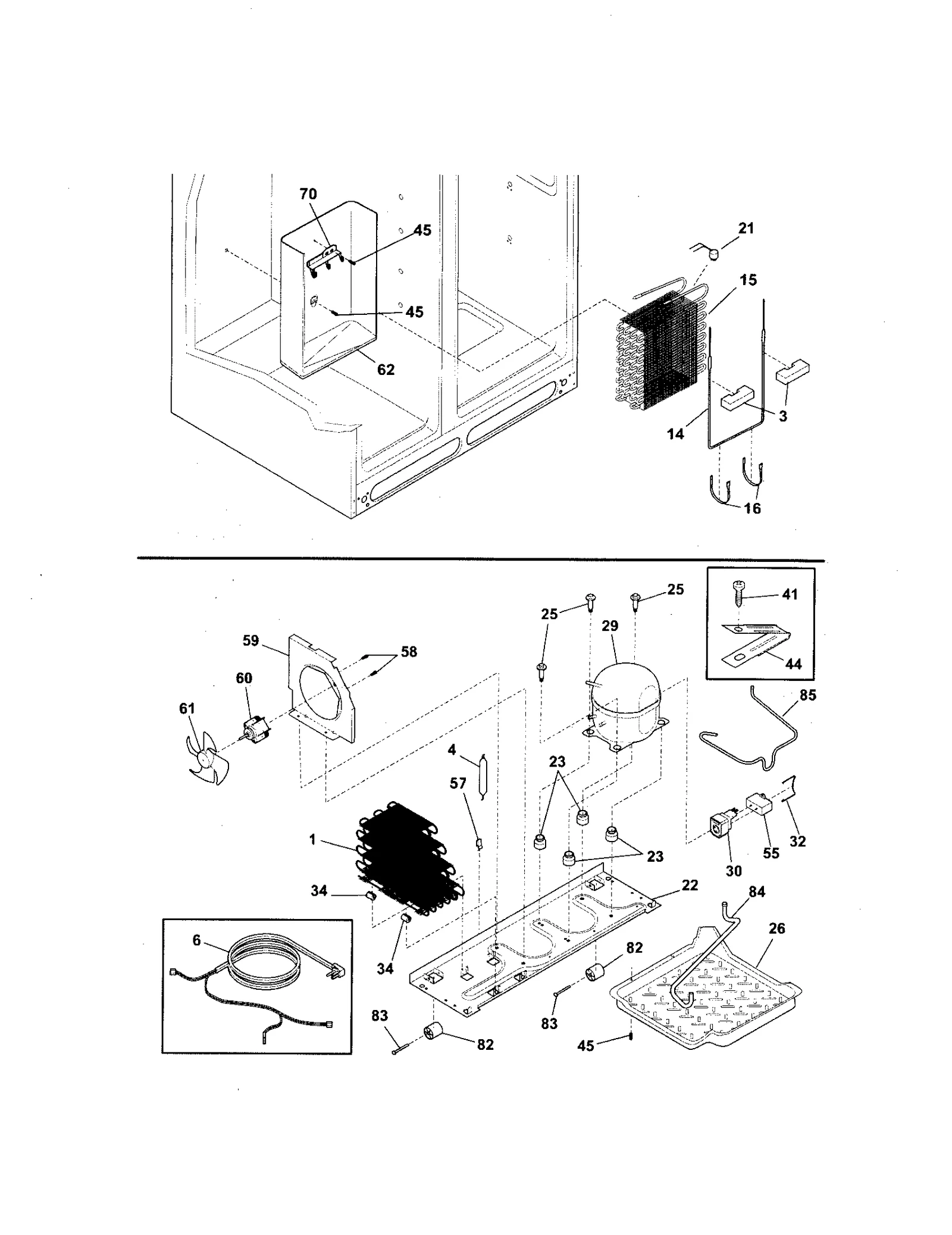

SYSTEM
Parts in SYSTEM
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 240333602NLA Refrigerator Condenser | Discontinued |
| 3 |  | 218679613replaces 218679606 Block Evaporator | - |
| 4 |  | 5303305677replaces 218944001 Refrigerator Filter Drier | $13.17 Parts Dr |
| 6 | – | 240558401 Refrigerator Wire Harness | - |
| 6A | | Refrigerator Wire Harness | - |
| 6B | | Refrigerator Control Box Wire Harness | - |
| 14 |  | 5303918255replaces 5303918253 Defrost Heater | $59.22 Part Advantage |
| 15 |  | Refrigerator Evaporator | $233.88 Part Advantage |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 21 |  | Refrigerator Defrost Bi-Metal Thermostat | $14.83 Part Advantage |
| 22 | – | 240330007 Refrigerator Base Plate | - |
| 22A |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| 23 |  | Refrigerator Compressor Grommet | $24.59 Part Advantage |
| 25 | | Compressor Screw | Discontinued |
| 26 |  | 241697603replaces 240332602 Refrigerator Defrost Pan | $50.49 Parts Dr |
| 29 |  | 5304475102replaces 5303918298 Refrigerator Compressor | $280.36 Parts Dr |
| 30 |  | 297237702replaces 241527801 Refrigerator Starter | $56.80 Part Advantage |
| 32 |  | 241544101replaces 241527901 Clamp | $4.97 Part Advantage |
| 34 |  | Refrigerator Condenser Coil Grommet | $15.28 ApplianceParts Pro |
| 41 |  | 240555002replaces 240555001 Screw-#8-3 | $7.77 Part Advantage |
| 44 |  | 5303001199replaces 215174700 Refrigerator Clamp | - |
| 45 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 55 |  | 297286803replaces 218909915 Chest Freezer Run Capacitor | $19.05 Part Advantage |
| 57 |  | Refrigerator Wire Harness Clip | - |
| 58 | | 240555002replaces 218897002 Screw | $7.77 Part Advantage |
| 59 | | Refrigerator Condenser Bracket | - |
| 59A |  | Tappan Refrigerator Foam Tape | $21.46 Parts Dr |
| 59B |  | 240359403replaces 240359401 Fan Screw | - |
| 60 |  | 5303918774replaces 240525401 Condenser Motor | $101.83 Part Advantage |
| 60A | – | 240569501 Refrigerator Screw | - |
| 61 |  | 240524102replaces 240524101 Refrigerator Condenser Fan | $14.36 Part Advantage |
| 62 | | Trough-dra | - |
| 70 |  | Bracket Evaporator | - |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | 5304455655replaces 5303316859 Refrigerator Roller Wheel Pin | $22.41 Parts Dr |
| 84 |  | 241957901replaces 5304421068 Refrigerator Drain Tube | $41.01 Parts Dr |
| 85 |  | 241856901replaces 240553501 Refrigerator Connector Tube | $53.95 ApplianceParts Pro |
