Model
Kenmore 253.56293408
Refrigerator (Kenmore 25356293408)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56293408Refrigerator (Kenmore 25356293408)
9 diagrams362 parts
Parts Sections (9)
Diagram

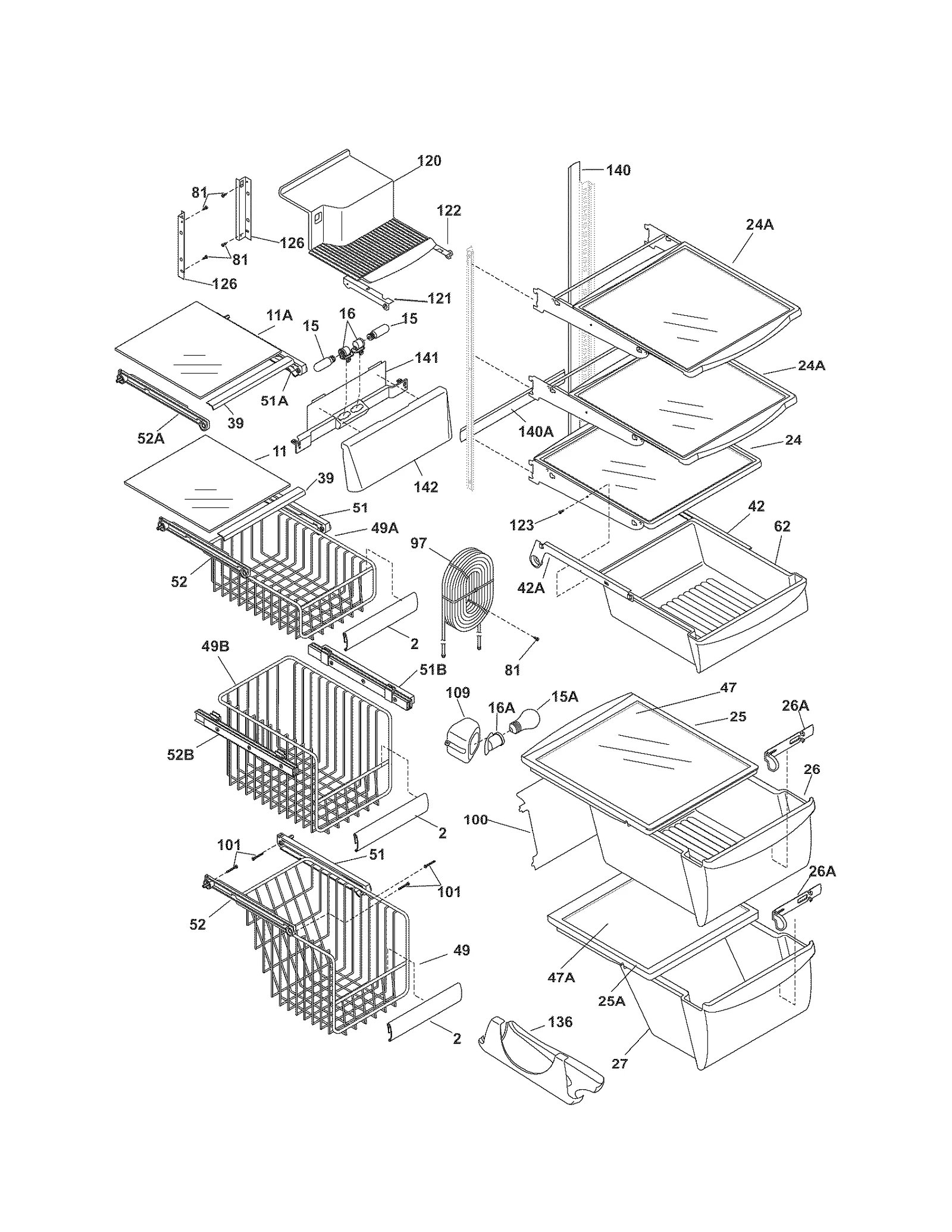

SHELVES
Parts in SHELVES
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Refrigerator Basket Trim | - |
| 11 | | 240350642replaces 240350684 Refrigerator Lower Shelf | - |
| 11A | | 240350683NLA Refrigerator Freezer Glass | Discontinued |
| 15 |  | 5304517886replaces 241552801 Refrigerator Light Bulb | $39.73 Part Advantage |
| 15A |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | 240590403replaces 240590401 Light Socket | $17.36 Parts Dr |
| 16A |  | 218906802replaces 241513901 Light Socket | $10.24 Part Advantage |
| 16A | – | 241537502 Refrigerator Wiring Harness | - |
| 24 | | 240349510replaces 240355216 Refrigerator Shelf | - |
| 24A | | 240350121replaces 240350112 Refrigerator Spill-Safe Shelf | - |
| 25 |  | Refrigerator Drawer Cover | $50.86 Part Advantage |
| 25A |  | Refrigerator Crisper Drawer Cover Frame, Lower | $55.89 Parts Dr |
| 26 |  | 240354723replaces 240354718 Refrigerator Crisper Pan | $79.18 Part Advantage |
| 26A |  | Refrigerator Crisper Drawer Humidity Control | - |
| 27 |  | 240354805replaces 240354820 Refrigerator Crisper | $95.97 Part Advantage |
| 39 |  | Refrigerator Freezer Shelf Trim | - |
| 42 |  | Frigidaire Refrigerator Deli Drawer Hanger, Right | $32.82 Part Advantage |
| 42A |  | Refrigerator Drawer Slide Rail | $39.15 Parts Dr |
| 42A | | Refrigerator Deli Drawer Hanger | - |
| 42A |  | Refrigerator Deli Drawer Slide Rail Spring | $41.11 RepairClinic |
| 47 |  | 240350613replaces 240350685 Refrigerator Insert | $74.19 Parts Dr |
| 47A |  | Refrigerator Crisper Drawer Cover Glass Insert | $85.35 Parts Dr |
| 49 | | 240530401NLA Refrigerator Freezer Basket | Discontinued |
| 49A | | 240530501NLA Refrigerator Freezer Basket, Upper | Discontinued |
| 49B | | 240530503NLA Refrigerator Freezer Basket, Upper | Discontinued |
| 51 |  | Refrigerator Freezer Basket Support Rail | $41.01 Parts Dr |
| 51A |  | Refrigerator Freezer Basket Hanger, Right | $53.95 ApplianceParts Pro |
| 51B | | Refrigerator Freezer Basket Hanger, Right | - |
| 52 |  | Refrigerator Freezer Basket Support Rail | $42.27 Parts Dr |
| 52A |  | Refrigerator Freezer Basket Hanger, Left | $40.48 Parts Dr |
| 52B | | Refrigerator Freezer Basket Support Rail, Left | - |
| 62 |  | 240355527replaces 240355519 Refrigerator Meat Pan | $101.60 Part Advantage |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 97 |  | 240545302replaces 240545303 Refrigerator Water Reservoir | $165.84 Parts Dr |
| 100 |  | 240326303replaces 240326301 Refrigerator Water Cover | $45.39 ApplianceParts Pro |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 109 | | Refrigerator Crisper Lamp Socket Base | - |
| 120 |  | 241691801replaces 241558901 Ice Shelf | - |
| 121 |  | Refrigerator Freezer Ice Cream Shelf Slide Rail, Left | - |
| 122 |  | Rail-ice Cre | - |
| 123 |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| 126 |  | 241674401replaces 218867405 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126 |  | 241674402replaces 218867406 Refrigerator Channel | - |
| 136 |  | 241657702replaces 240424502 Refrigerator Versa Shelf | - |
| 140 |  | Refrigerator Water Tube Cover | - |
| 140 | | Refrigerator Channel | - |
| 141 | | Refrigerator Light Bracket | - |
| 142 | | 240582703replaces 240582701 Light Shield | - |
| NI |  | Refrigerator Technical Data Sheet | $7.95 ApplianceParts Pro |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $11.08 Part Advantage |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $25.41 Part Advantage |
| NI | | Refrigerator Service Data Sheet | - |
| NI | | Refrigerator Drain Tube Heater | - |
| NI | – | 241538771 Refrigerator Energy Guide | - |
| NI | | 241579602replaces 241579601 Refrigerator Owner's Manual | - |
| NI | – | 5995418968 Refrigerator Repair Parts List | - |
