Model
Kenmore 253.56519401
Refrigerator (Kenmore 25356519401)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56519401Refrigerator (Kenmore 25356519401)
9 diagrams330 parts

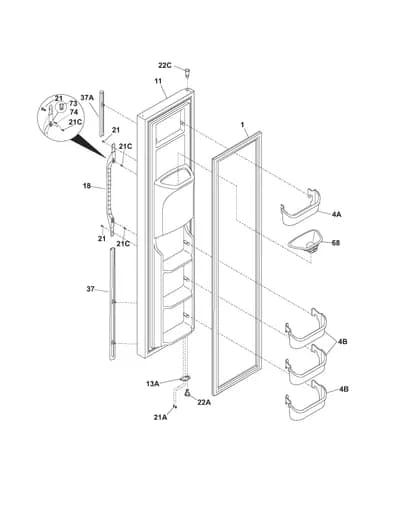

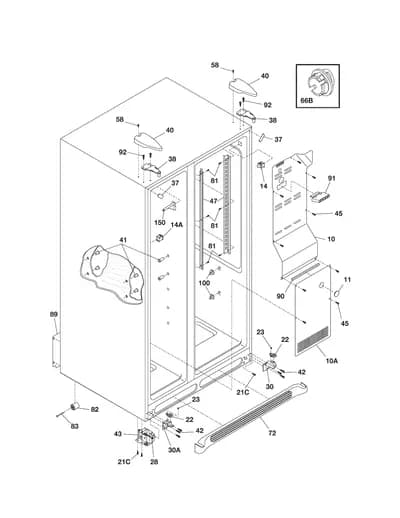

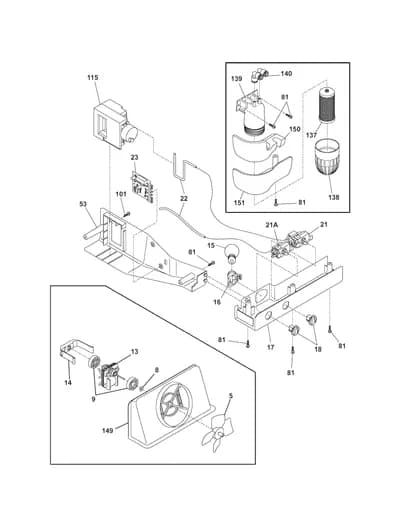

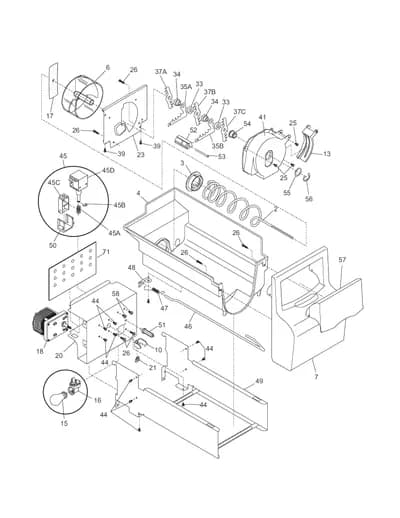

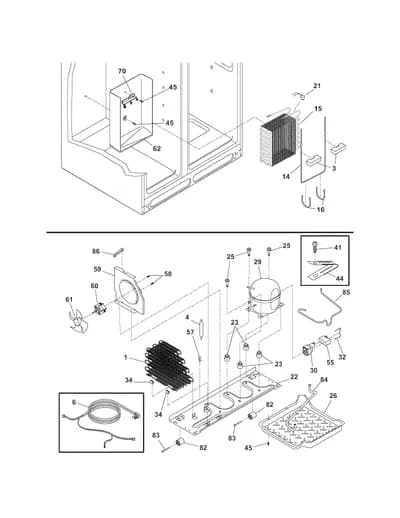

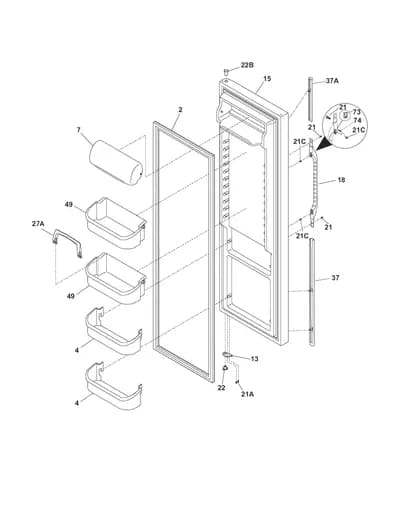

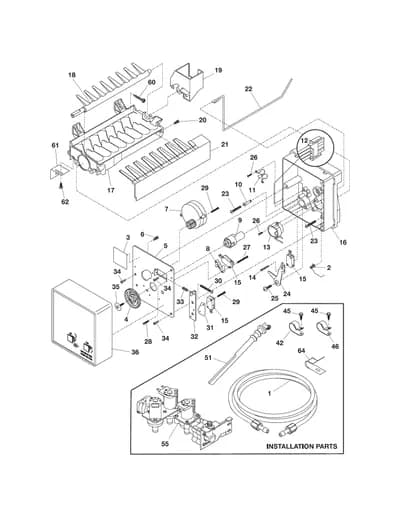

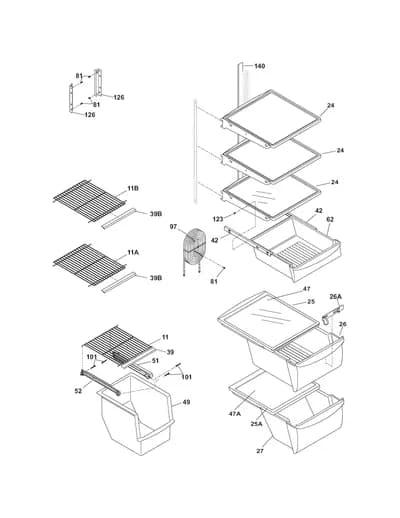

Parts Sections (9)
Diagram

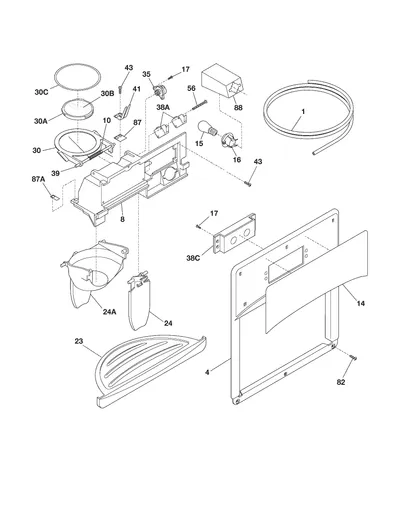

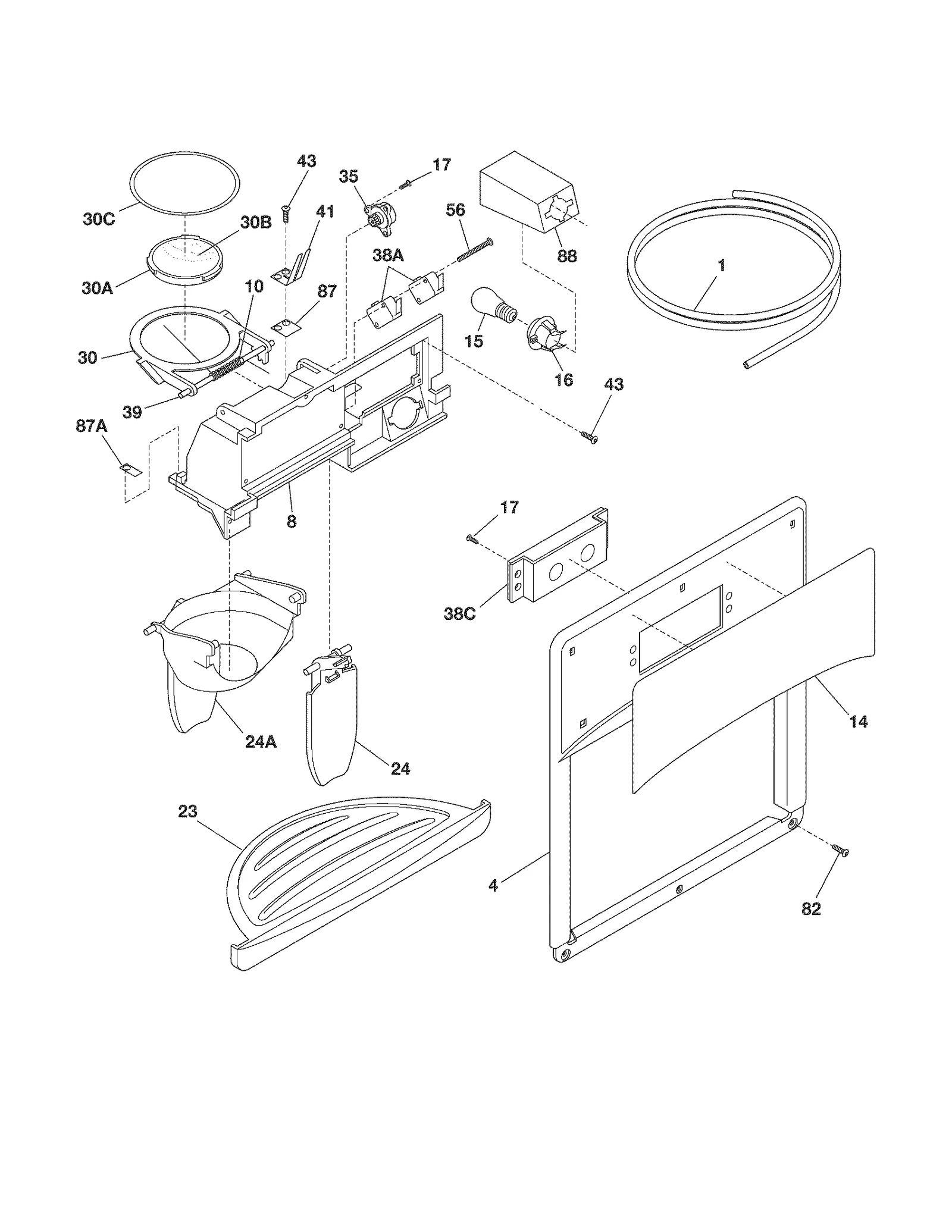

ICE & WATER DISPENSER
Parts in ICE & WATER DISPENSER
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Water Tubing | $34.86 Part Advantage |
| 4 |  | 241678501replaces 5304430832 Refrigerator Module Cover | - |
| 4 |  | 241678502replaces 5304430833 Refrigerator Module Cover | - |
| 4 | | 5304430834NLA Refrigerator Cover | Discontinued |
| 8 | | 5304421849NLA Dispenser Module | Discontinued |
| 8 | | Refrigerator Dispenser Module | Discontinued |
| 8 | | 5304422030NLA Dispenser Module | Discontinued |
| 10 |  | 241688901replaces 5304426649 Refrigerator Spring | $13.10 Parts Dr |
| 14 |  | 240570236replaces 240570104 Refrigerator Dispenser Control Panel Overlay | $18.68 Part Advantage |
| 14 | | Refrigerator Dispenser Control Overlay (Bisque) | Discontinued |
| 14 |  | 240570237replaces 240570106 Refrigerator Dispenser Control Overlay (Black) | $16.54 Part Advantage |
| 15 |  | 5304519036replaces 5304421616 Refrigerator Light Bulb | $40.25 Parts Dr |
| 16 |  | Refrigerator Dispenser Light Socket | $34.43 Part Advantage |
| 17 |  | 241679801replaces 5304421619 Refrigerator Screw | $10.70 ApplianceParts Pro |
| 23 | | Refrigerator Drip Tray | Discontinued |
| 23 | | Refrigerator Drip Tray | Discontinued |
| 23 |  | 241659103replaces 240411703 Refrigerator Drip Tray | - |
| 24 | | 5304421636NLA Refrigerator Actuator | Discontinued |
| 24 |  | 5304493024replaces 5304421637 Refrigerator Dispenser Actuator | $171.77 ApplianceParts Pro |
| 24 | | 5304422032NLA Refrigerator Actuator | Discontinued |
| 24A | | Refrigerator Actuator | Discontinued |
| 24A | | 5304493024replaces 5304421635 Refrigerator Dispenser Actuator | $171.77 ApplianceParts Pro |
| 24A | – | 5304422031 Refrigerator Actuator | - |
| 30 |  | 241688401replaces 5304421628 Refrigerator Door Assembly | $28.71 Part Advantage |
| 30A |  | 241688501replaces 5304421624 Door Cente | $30.64 Part Advantage |
| 30B |  | 241688601replaces 5304421625 Refrigerator Insulation | $36.54 Part Advantage |
| 30C |  | 241688701replaces 5304421629 Refrigerator Door Seal | $22.27 Part Advantage |
| 35 |  | 241689301replaces 5304421620 Damper-rot | - |
| 38A |  | 241689106replaces 5304421617 Switch-mic | $4.62 Part Advantage |
| 38A |  | 241679201replaces 5304430839 Wiring Harness | - |
| 38C |  | Refrigerator Toe Grille Clip | $12.63 Parts Dr |
| 38C |  | 5304521693replaces 5304430837 Refrigerator Wiring Harness | - |
| 38C |  | 5304525097replaces 5304436275 Refrigerator Switch | $62.50 Parts Dr |
| 39 |  | 241688801replaces 5304421627 Refrigerator Hinge Pin | $29.49 Parts Dr |
| 41 |  | 241689001replaces 5304421829 Spring-act | $15.13 Parts Dr |
| 43 |  | Refrigerator Screw | Discontinued |
| 56 |  | 241689201replaces 5304421830 Refrigerator Dispenser Micro-Switch Screw | $11.59 ApplianceParts Pro |
| 82 |  | 5304453707replaces 240363401 Screw-#8-1 | $8.60 Part Advantage |
| 87 |  | 241688302replaces 5304421622 Bearing Pl | $13.23 Parts Dr |
| 87A |  | 241688301replaces 5304421621 Bearing Pl | $12.95 Parts Dr |
| 88 | | 241686101replaces 5304421615 Light Shield | - |
| NI |  | Universal/Multiflex (Frigidaire) Refrigerator Inlet Valve to Ice Maker Water Tubing | $52.61 Parts Dr |
| NI |  | Refrigerator Water Tubing | $71.06 Parts Dr |
| NI | | 218976907NLA Refrigerator Water Tubing | Discontinued |
| NI | | 240411501NLA Refrigerator Ice and Water Dispenser Cover Clip | Discontinued |
| NI |  | Refrigerator Water Tubing Seal | $11.89 Part Advantage |
| NI |  | Refrigerator Dispenser Heater | $315.20 Parts Dr |
