Model
Kenmore 253.56602402
Refrigerator (Kenmore 25356602402)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56602402Refrigerator (Kenmore 25356602402)
9 diagrams283 parts
Parts Sections (9)
Diagram

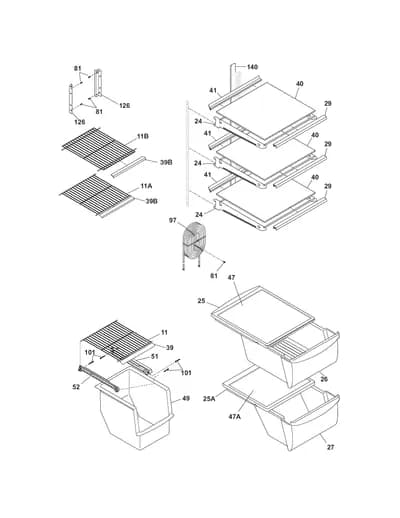

SHELVES
Parts in SHELVES
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | Refrigerator Freezer Shelf | Discontinued |
| 11A |  | 241657502replaces 240338702 Refrigerator Freezer Shelf | - |
| 11B |  | 241657504replaces 240338704 Refrigerator Freezer Shelf | $53.63 Parts Dr |
| 24 | | Refrigerator Shelf Frame | - |
| 25 |  | Frigidaire Refrigerator Crisper Drawer Cover Frame | $23.79 Part Advantage |
| 25A |  | 240350903replaces 240350902 Refrigerator Cover | $50.11 Part Advantage |
| 26 |  | 240351061replaces 240351031 Refrigerator Crisper Pan | $52.93 Part Advantage |
| 27 |  | 240351207replaces 240351216 Lower Crisper | $97.84 Part Advantage |
| 29 | | Refrigerator Glass Shelf Trim, Front | - |
| 39 | | 240430706NLA Refrigerator Freezer Shelf Trim | Discontinued |
| 39B |  | 240430702NLA Refrigerator Freezer Shelf Trim, 12.39-in | Discontinued |
| 40 | | Refrigerator Glass Shelf | - |
| 41 | | 240357806NLA Refrigerator Glass Shelf Trim, Rear | Discontinued |
| 47 |  | 240350649replaces 240350694 Refrigerator Crisper Drawer Cover Glass Insert | $58.46 Part Advantage |
| 47A |  | Refrigerator Crisper Drawer Cover Insert | $74.22 Parts Dr |
| 49 |  | Refrigerator Freezer Basket, Lower | $80.91 Part Advantage |
| 51 |  | Refrigerator Freezer Basket Support Rail | $41.01 Parts Dr |
| 52 |  | Refrigerator Freezer Basket Support Rail | $42.27 Parts Dr |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 97 |  | Refrigerator Water Reservoir | $165.84 Parts Dr |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 126 |  | 241674401replaces 218867405 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126 |  | 241674402replaces 218867406 Refrigerator Channel | - |
| 140 |  | Refrigerator Water Tube Cover | - |
| NI |  | Refrigerator Technical Data Sheet | $7.95 ApplianceParts Pro |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $11.08 Part Advantage |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $25.41 Part Advantage |
| NI | | Refrigerator Service Data Sheet | - |
| NI | – | 241585950 Refrigerator Energy Guide | - |
| NI | – | 241622301 Refrigerator Owner's Manual | - |
| NI | – | 5995425971 Refrigerator Repair Parts List | - |
