Model
Kenmore 253.56963600
Refrigerator (Kenmore 25356963600)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56963600Refrigerator (Kenmore 25356963600)
9 diagrams329 parts
Parts Sections (9)

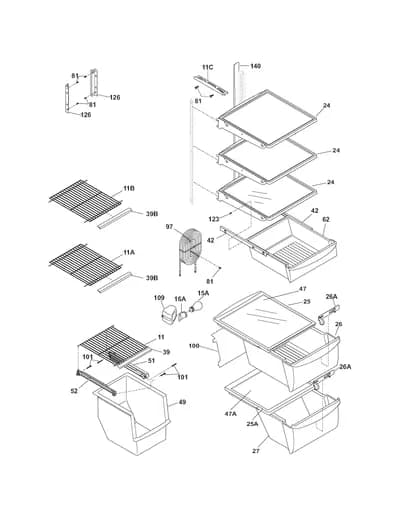

Diagram

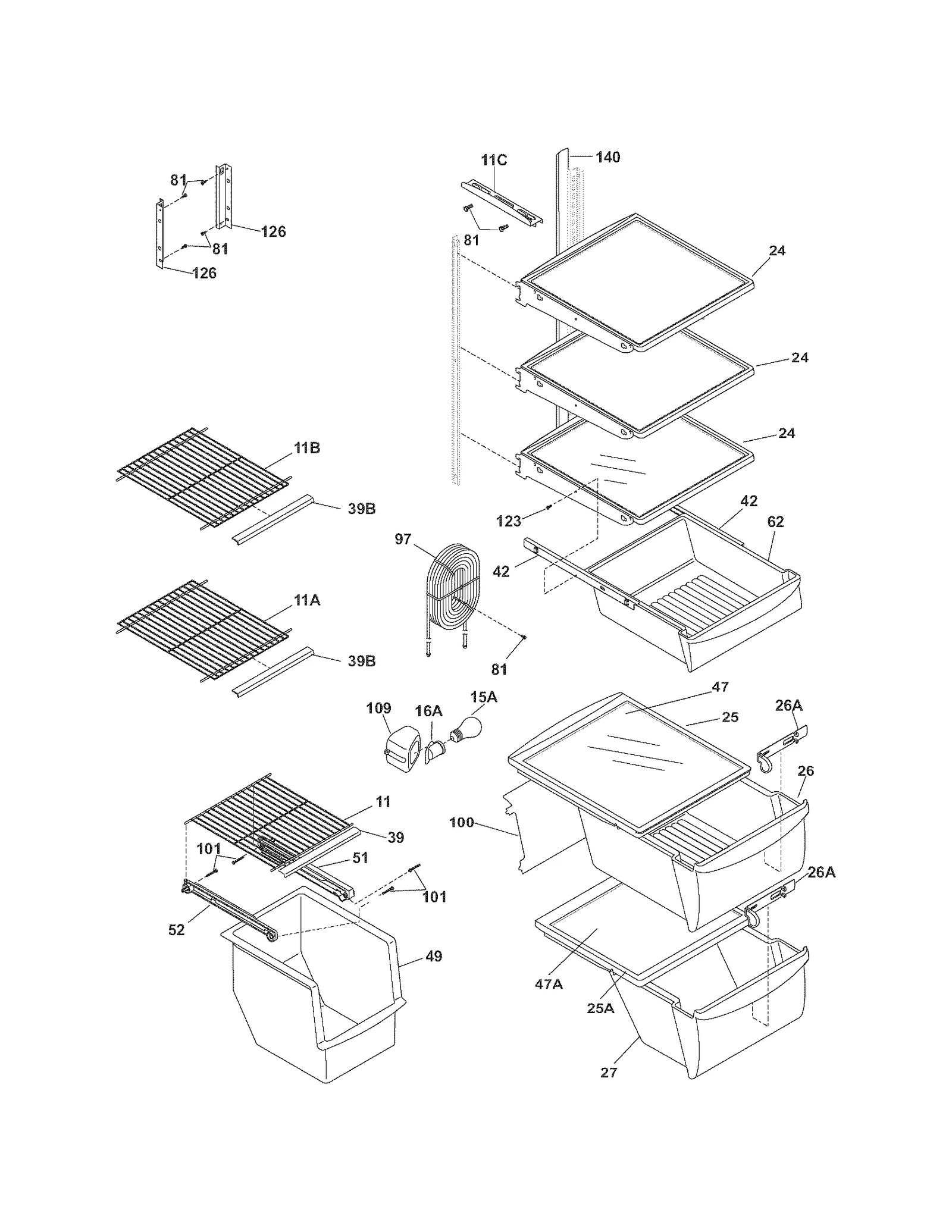

SHELVES
Parts in SHELVES
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | 241657602NLA Refrigerator Shelf | Discontinued |
| 11A |  | Refrigerator Shelf | - |
| 11B |  | Refrigerator Shelf | $53.63 Parts Dr |
| 11C |  | Refrigerator Freezer Pizza Shelf | $41.46 RepairClinic |
| 15A |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16A |  | 218906802replaces 241513901 Light Socket | $10.24 Part Advantage |
| 16A | | Refrigerator Wiring Harness | - |
| 24 |  | 240355270replaces 240355226 Refrigerator Spill-Safe Shelf | $99.86 Parts Dr |
| 25 |  | Frigidaire Refrigerator Crisper Drawer Cover Frame | $23.79 Part Advantage |
| 25A |  | 240350903replaces 240350902 Refrigerator Cover | $50.11 Part Advantage |
| 26 |  | 240351061replaces 240351019 Refrigerator Upper Crisper Pan | $52.93 Part Advantage |
| 26A |  | Refrigerator Crisper Drawer Humidity Control | $44.97 Parts Dr |
| 27 |  | 240351240replaces 240351217 Lower Crisper Pan | $104.24 Part Advantage |
| 39 | | 240430706NLA Refrigerator Freezer Shelf Trim | Discontinued |
| 39B |  | 240430702NLA Refrigerator Freezer Shelf Trim, 12.39-in | Discontinued |
| 42 |  | Frigidaire Refrigerator Deli Drawer Hanger, Right | $32.82 Part Advantage |
| 42 |  | Refrigerator Drawer Hanger | $33.65 Part Advantage |
| 47 |  | 240350649replaces 240350694 Refrigerator Crisper Drawer Cover Glass Insert | $58.46 Part Advantage |
| 47A |  | Refrigerator Crisper Drawer Cover Insert | $74.22 Parts Dr |
| 49 |  | Refrigerator Freezer Basket, Lower | $80.91 Part Advantage |
| 51 |  | Refrigerator Freezer Basket Support Rail | $41.01 Parts Dr |
| 52 |  | Refrigerator Freezer Basket Support Rail | $42.27 Parts Dr |
| 62 |  | 240342830replaces 240342814 Refrigerator Deli Drawer | $54.44 Parts Dr |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 97 |  | 240545302replaces 240545303 Refrigerator Water Reservoir | $165.84 Parts Dr |
| 100 |  | 240326304replaces 240326302 Refrigerator Water Cover | - |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 109 | | Refrigerator Crisper Lamp Socket Base | - |
| 123 |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| 126 |  | Refrigerator Auger Mounting Channel, Left | $34.95 ApplianceParts Pro |
| 126 |  | Refrigerator Auger Mounting Channel, Right | - |
| 140 |  | Refrigerator Water Tube Cover | - |
| NI |  | Refrigerator Technical Data Sheet | $7.95 ApplianceParts Pro |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $11.08 Part Advantage |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $25.41 Part Advantage |
| NI | | Refrigerator Service Data Sheet | - |
| NI | – | 241649244 Refrigerator Energy Guide | - |
| NI | | Refrigerator Owner's Manual | - |
| NI | | Refrigerator Repair Parts List | - |
