Model
Kenmore 253.56973602
Refrigerator (Kenmore 25356973602)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56973602Refrigerator (Kenmore 25356973602)
9 diagrams325 parts
Parts Sections (9)
Diagram

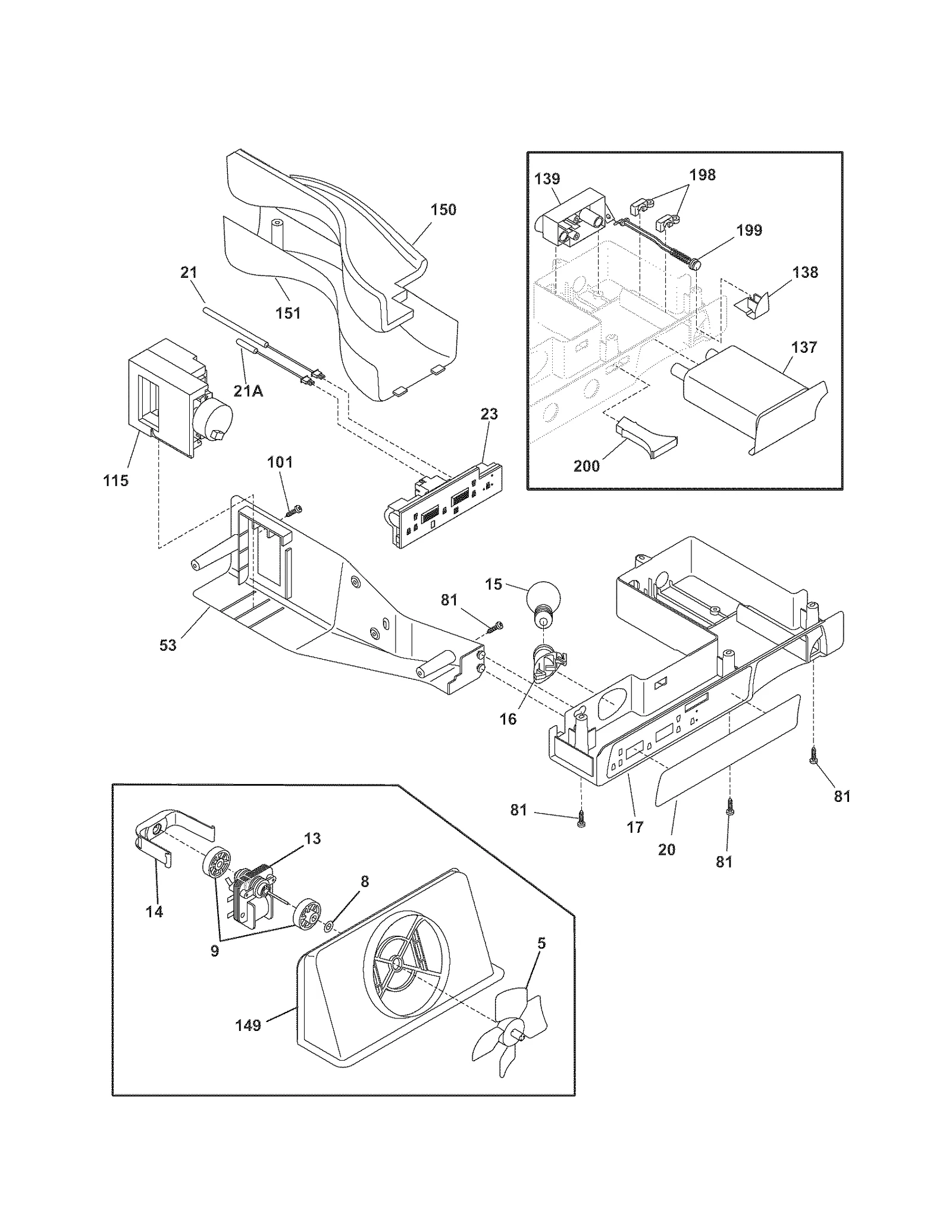

CONTROLS
Parts in CONTROLS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 8 |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| 9 |  | Refrigerator Evaporator Motor Mount Bushing | $12.63 Parts Dr |
| 13 |  | 5303918549replaces 240369702 Refrigerator Evaporator Motor | $41.09 Part Advantage |
| 14 |  | 242135301replaces 241517701 Refrigerator Clip | $6.48 RepairClinic |
| 15 |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | 218906802replaces 241513901 Light Socket | $10.24 Part Advantage |
| 17 |  | 241608802replaces 241608801 Refrigerator Box | - |
| 20 | – | 241603917 Refrigerator Label | - |
| 21 |  | Refrigerator Temperature Sensor | $50.37 Parts Dr |
| 21A |  | Refrigerator Temperature Sensor | $34.19 Parts Dr |
| 23 |  | 5304452072NLA Refrigerator Control | Discontinued |
| 53 |  | 241608902replaces 241608901 Refrigerator Box | $55.18 Part Advantage |
| 81 |  | Refrigerator Screw, #8-15 x 0.625-in | $10.31 Parts Dr |
| 101 |  | Refrigerator Control Box Screw | $6.16 ApplianceParts Pro |
| 115 |  | Crosley Refrigerator Air Damper Control Assembly | $134.84 Part Advantage |
| 137 |  | 242227702replaces 240396701 Refrigerator Water Filter Bypass | $33.62 Part Advantage |
| 137 |  | WF2CBreplaces 9911 Genuine Kenmore Refrigerator Water Filter | $38.58 Part Advantage |
| 138 | | Refrigerator Water Filter Release Button | - |
| 139 |  | Refrigerator Water Filter Head | $55.88 Part Advantage |
| 139 |  | 240527001replaces 240526901 Refrigerator O-Ring | - |
| 149 |  | 241528303replaces 241528306 Refrigerator Seal | $14.99 Parts Dr |
| 149 |  | 242204506replaces 241563501 Fan Shroud | $34.19 Parts Dr |
| 150 | | Insulation-w | - |
| 151 | | 241505001NLA Refrigerator Water Cover | Discontinued |
| 198 |  | Refrigerator Water Filter Rod Retainer | - |
| 199 | | 240397501NLA Refrigerator Water Filter Bypass Valve | Discontinued |
| 199 |  | Refrigerator Filter Spring | $37.48 Parts Dr |
| 200 | | Refrigerator Light Pipe | - |
| NI | | Refrigerator Wiring Harness | - |
| NI | | Refrigerator Guard | $59.32 ApplianceParts Pro |
| NI |  | 5304455649replaces 5303001259 Refrigerator Screw | $12.95 ApplianceParts Pro |
