Model
Kenmore 253.56979600
Refrigerator (Kenmore 25356979600)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.56979600Refrigerator (Kenmore 25356979600)
9 diagrams329 parts
Parts Sections (9)
Diagram

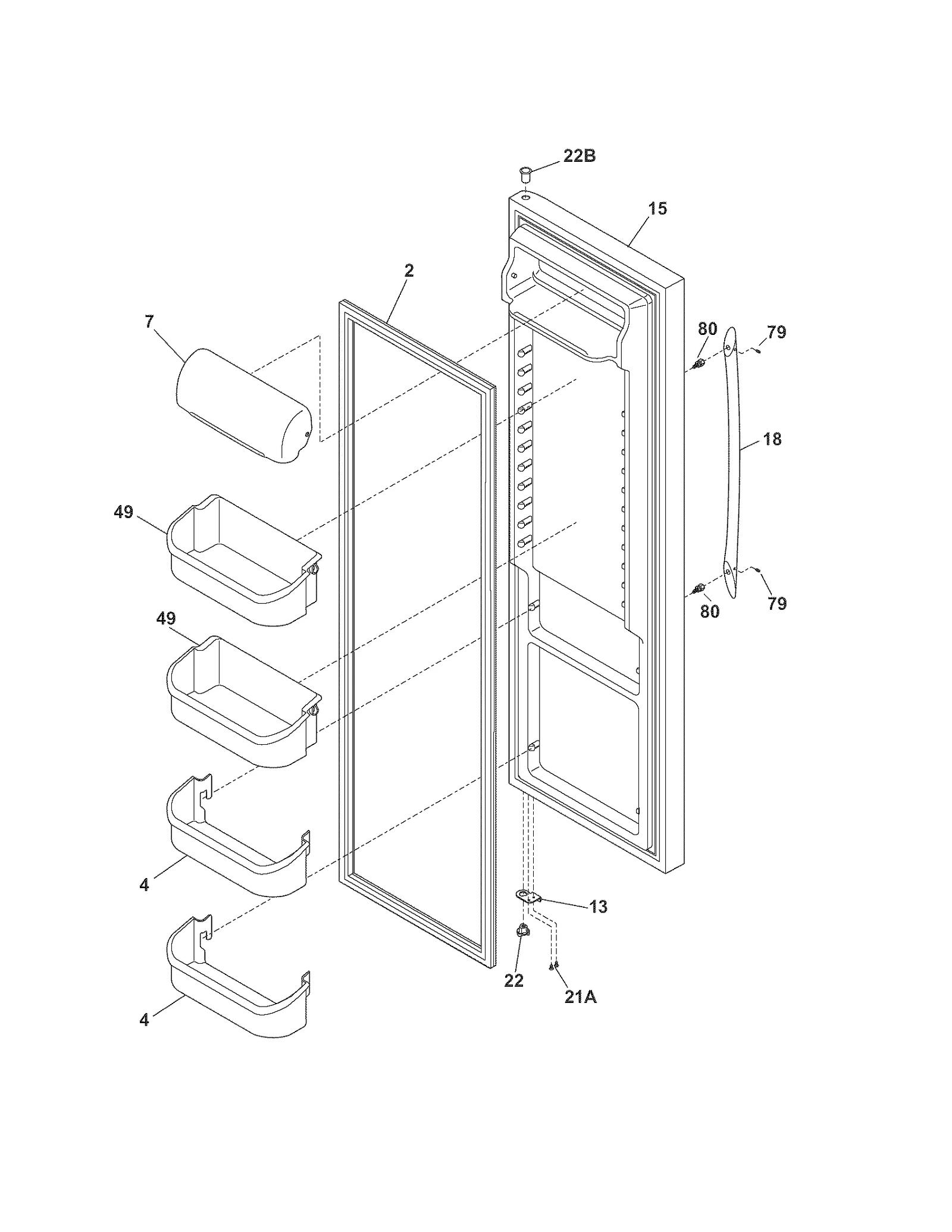

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241786013replaces 241674801 Refrigerator Gasket | $54.70 Parts Dr |
| 2 | | 241786013replaces 241674805 Refrigerator Gasket | $54.70 Parts Dr |
| 4 |  | Refrigerator Door Bin | $39.28 Part Advantage |
| 7 |  | Refrigerator Dairy Door | Discontinued |
| 13 |  | Refrigerator Door Stop | $30.01 Parts Dr |
| 13 | | 240581903NLA Refrigerator Door Stop (White) | Discontinued |
| 13 |  | Refrigerator Door Stop (Black) | $34.87 Part Advantage |
| 15 | – | 241534576 Refrigerator Door | - |
| 15 | – | 241534578 Refrigerator Door | - |
| 15 | – | 241534579 Refrigerator Door | - |
| 15 | – | 241534580 Complete Freezer Door | - |
| 18 | | Refrigerator Door Handle | - |
| 18 | – | 241531404 Refrigerator Door Handle | - |
| 18 | | Refrigerator Door Handle (Black) | - |
| 18 | | Refrigerator Door Handle | Discontinued |
| 21A |  | 5303323137replaces 240598401 Refrigerator Freezer Door Handle Screw | $8.39 ApplianceParts Pro |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B |  | Refrigerator Door Hinge Bushing | $15.28 ApplianceParts Pro |
| 22B |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 49 |  | Frigidaire Refrigerator Door Bin | $55.85 Part Advantage |
| 79 |  | 218755405replaces 218755402 Freezer Door Handle Set Screw, #10-32 x 3/8-in | $11.89 Part Advantage |
| 80 |  | 218755504replaces 218755503 Shoulder Screw | $7.79 Part Advantage |
