Kenmore 253.57182601
Refrigerator (Kenmore 25357182601)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57182601Refrigerator (Kenmore 25357182601)
9 diagrams323 parts

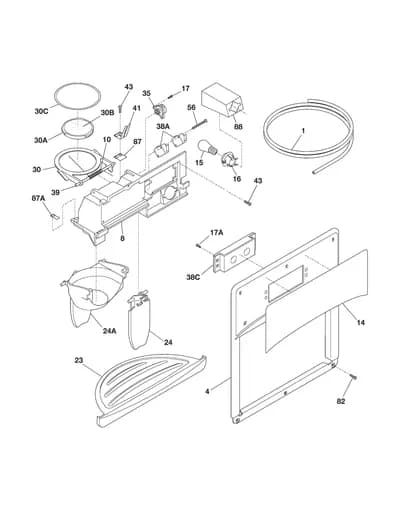

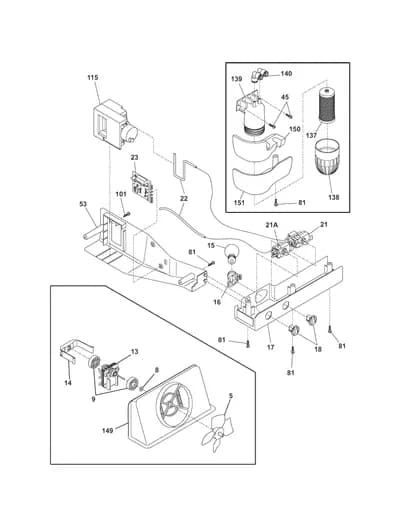

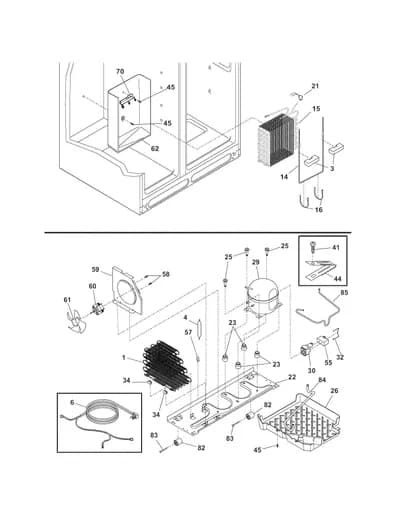

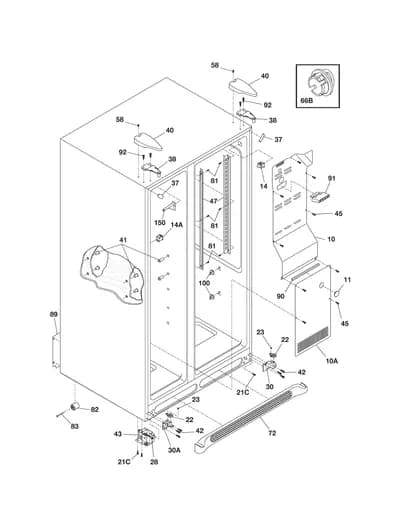

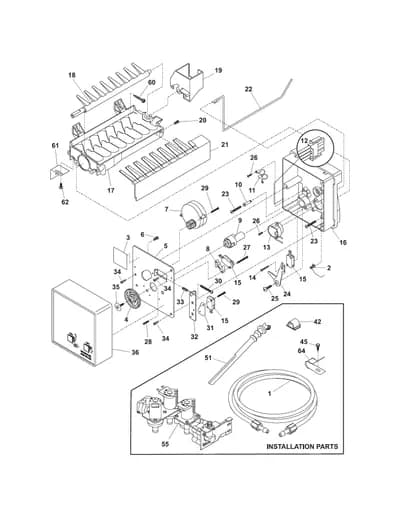

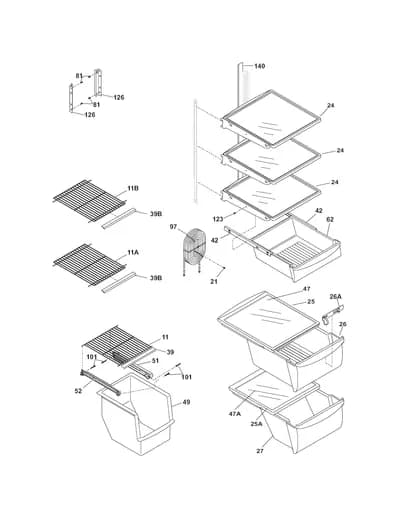

Parts Sections (9)
Diagram

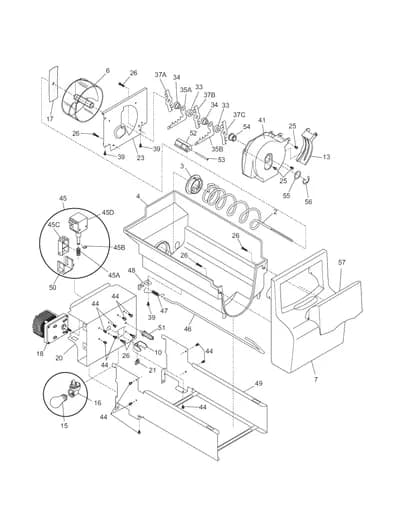

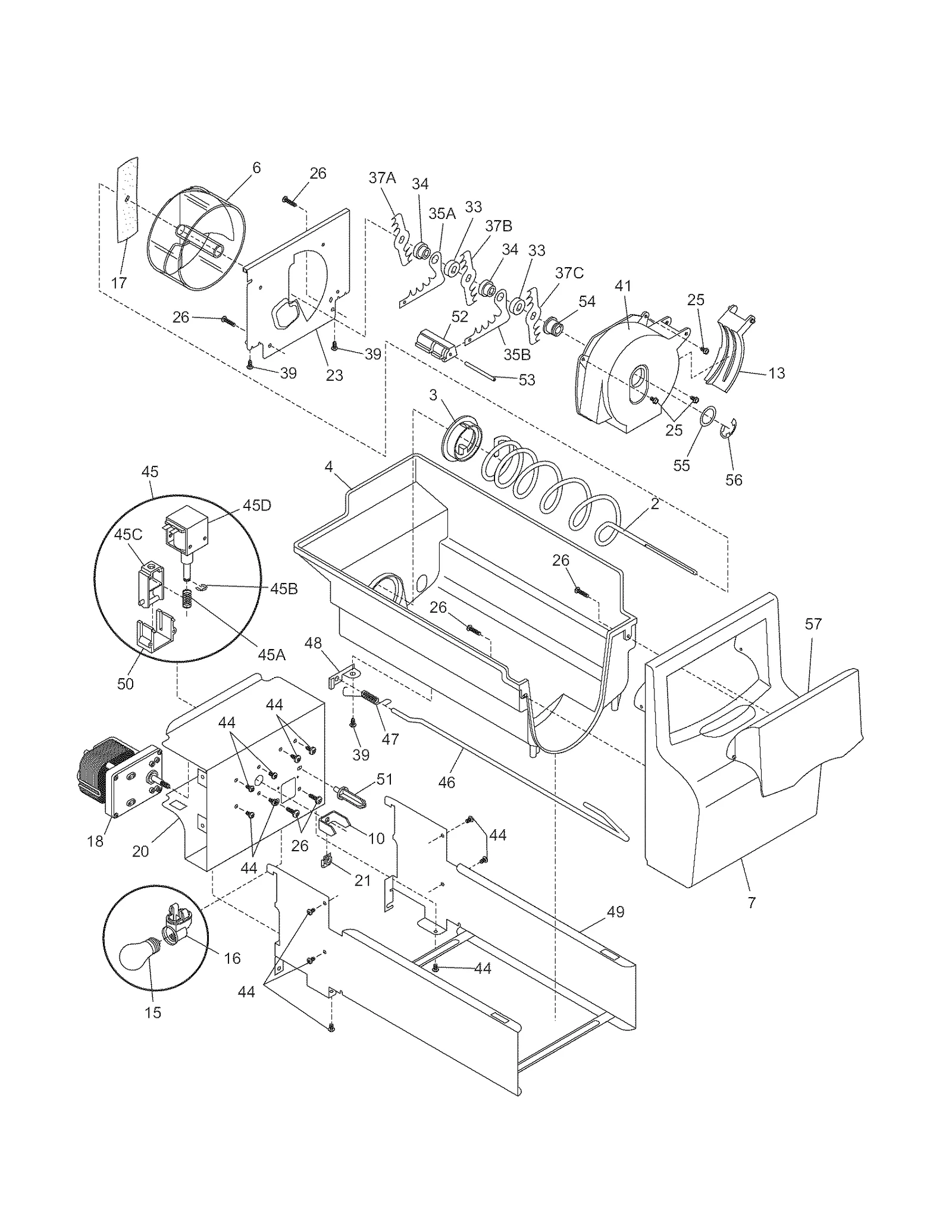

ICE CONTAINER
Parts in ICE CONTAINER
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Refrigerator Dispenser Auger | $75.17 Parts Dr |
| 3 |  | Refrigerator Auger Drive Cam | $28.59 Parts Dr |
| 4 |  | Refrigerator Ice Bin | $60.44 Part Advantage |
| 6 |  | Refrigerator Auger Drum | $29.93 Part Advantage |
| 7 |  | Refrigerator Ice Container Front Cover | $56.12 Parts Dr |
| 10 |  | 241726501replaces 241624801 Refrigerator Bar | $34.02 Part Advantage |
| 13 |  | 241885001replaces 241685301 Refrigerator Gate | $43.89 Part Advantage |
| 15 |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | Refrigerator Light Socket | $46.99 Parts Dr |
| 17 |  | 241684503replaces 241684501 Refrigerator Ice Dispenser Drive Blade | $9.40 Part Advantage |
| 18 |  | 242221501replaces 241676202 Refrigerator Ice Dispenser Auger Motor | $81.56 Part Advantage |
| 20 |  | Refrigerator Auger Motor Cover | $104.74 ApplianceParts Pro |
| 21 | | 241726501replaces 215285101 Drive Nut | $34.02 Part Advantage |
| 23 |  | Refrigerator Ice Crusher Mounting Plate, Front | $86.78 Parts Dr |
| 25 |  | 240555002replaces 241690701 Refrigerator Ice Crusher Gate Mounting Screw | $7.77 Part Advantage |
| 26 |  | Refrigerator Ice Dispenser Container Front Plate Screw | $19.30 PartSelect |
| 33 |  | 241684802replaces 241684801 Refrigerator Ice Crusher Spacer | $4.89 Part Advantage |
| 34 |  | 241689802replaces 241689801 Refrigerator Ice Crusher Spacer | $4.50 Part Advantage |
| 35A |  | 241684303replaces 241684301 Refrigerator Ice Crusher Fixed Blade | $9.40 Part Advantage |
| 35B |  | 241684203replaces 241684201 Refrigerator Ice Crusher Fixed Blade | - |
| 37A |  | 241684107replaces 241684101 Refrigerator Ice Crusher First Blade | $15.50 RepairClinic |
| 37B |  | 241684108replaces 241684102 Refrigerator Ice Crusher Second Blade | $14.54 Parts Dr |
| 37C |  | 241684109replaces 241684103 Refrigerator Ice Crusher Third Blade | $29.95 ApplianceParts Pro |
| 39 |  | Refrigerator Screw | $12.95 ApplianceParts Pro |
| 41 | | 241885001replaces 241685601 Refrigerator Ice Crusher Housing | $43.89 Part Advantage |
| 44 |  | Refrigerator Screw | $8.52 Parts Dr |
| 45 |  | 241675704replaces 241675701 Refrigerator Solenoid Assembly | $33.40 Part Advantage |
| 45A |  | 241675902replaces 241675901 Spring-solen | - |
| 45B |  | Refrigerator Solenoid E-Ring | - |
| 45C |  | Refrigerator Ice Dispenser Solenoid Actuator | $37.31 Part Advantage |
| 45D | | 241675704replaces 241675801 Refrigerator Solenoid | $33.40 Part Advantage |
| 46 |  | Refrigerator Ice Dispenser Actuator Rod | $32.55 ApplianceParts Pro |
| 47 |  | Refrigerator Control Spring | $10.94 ApplianceParts Pro |
| 48 |  | Refrigerator Ice Dispenser Actuator Bracket | $78.90 PartSelect |
| 49 |  | Refrigerator Ice Bin Rail | $82.56 RepairClinic |
| 50 |  | Refrigerator Ice Dispenser Solenoid Stirrup | $59.32 ApplianceParts Pro |
| 51 |  | 241676301NLA Refrigerator Dispenser Rotation Stop | Discontinued |
| 52 |  | Refrigerator Ice Crusher Fixed Blade Spacer | $23.58 RepairClinic |
| 53 |  | Refrigerator Ice Crusher Blade Block Roll Pin | - |
| 54 |  | Refrigerator Auger Nut | $11.47 Part Advantage |
| 55 |  | 241690306replaces 241690301 Washer | $28.71 Part Advantage |
| 56 |  | Refrigerator E-Ring | $13.56 Parts Dr |
| 57 |  | Refrigerator Ice Container Access Door | $34.41 Parts Dr |
| NI |  | 241860803replaces 240323813 Refrigerator Ice Container | $95.28 Part Advantage |
| NI | | Refrigerator Wiring Harness | Discontinued |
| NI |  | Refrigerator Ice Container Deflector Cover | $41.90 Parts Dr |
