Model
Kenmore 253.57184603
Refrigerator (Kenmore 25357184603)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57184603Refrigerator (Kenmore 25357184603)
9 diagrams323 parts
Parts Sections (9)
Diagram

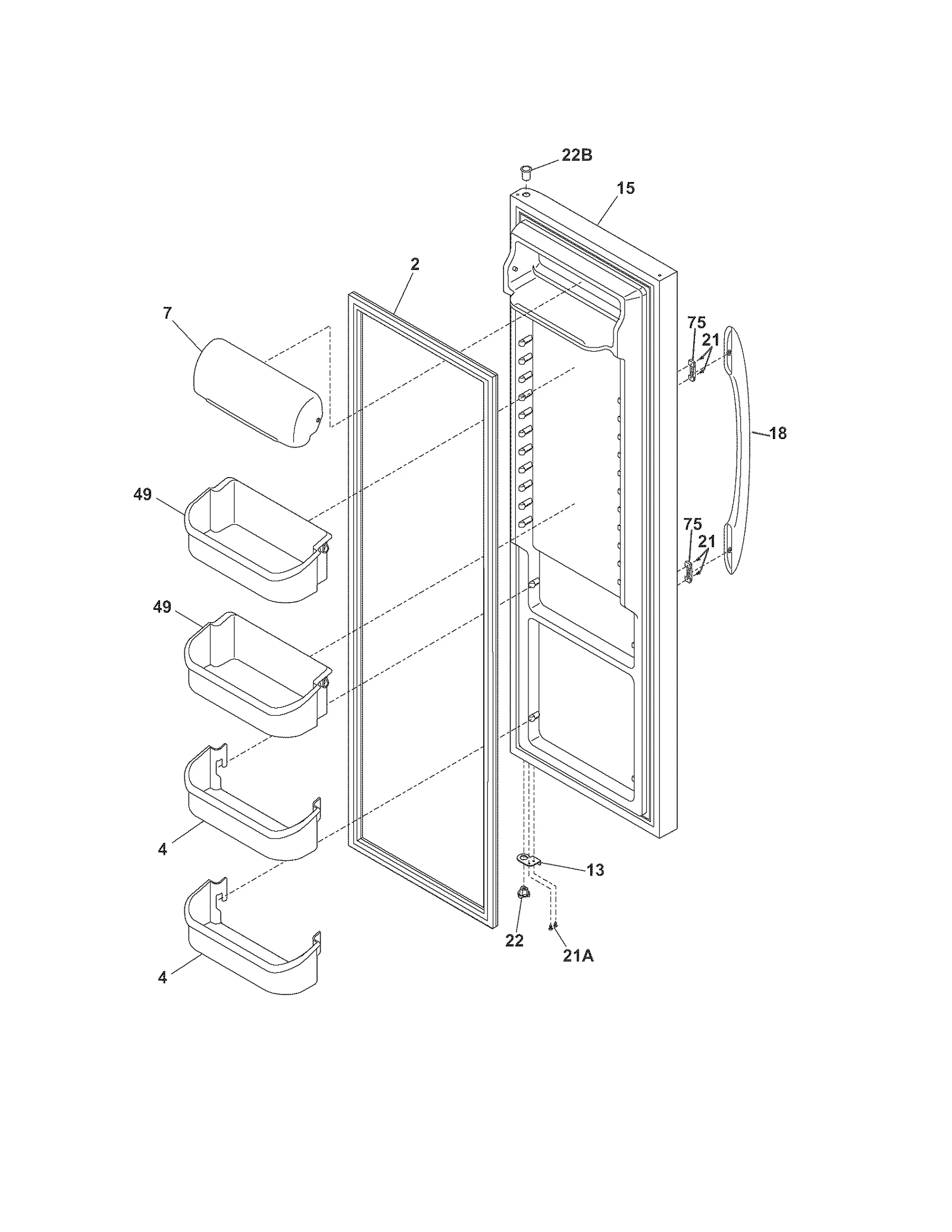

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241786015replaces 241674803 Refrigerator Gasket | $51.60 Part Advantage |
| 2 | | 241786015replaces 241674807 Refrigerator Gasket | $51.60 Part Advantage |
| 4 |  | Refrigerator Door Bin | $32.72 Part Advantage |
| 7 |  | 240338313replaces 240338312 Refrigerator Dairy Door | $46.74 Part Advantage |
| 13 |  | Refrigerator Door Stop | $30.01 Parts Dr |
| 13 |  | 240581903NLA Refrigerator Door Stop (White) | Discontinued |
| 13 |  | Refrigerator Door Stop (Black) | $34.87 Part Advantage |
| 15 | – | 241534588 Refrigerator Door | - |
| 15 | – | 241534589 Refrigerator Door | - |
| 15 | – | 241534590 Refrigerator Door | - |
| 15 | – | 241534591 Refrigerator Door | - |
| 18 | | Refrigerator Door Handle | - |
| 18 | | Refrigerator Door Handle | - |
| 18 | – | 241696303 Refrigerator Door Handle (Bisque) | - |
| 21 |  | 216858001replaces 241696001 Refrigerator Screw | $9.94 ApplianceParts Pro |
| 21A |  | 5303323137replaces 240598402 Refrigerator Freezer Door Stop Screw | $8.39 ApplianceParts Pro |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B |  | Refrigerator Door Hinge Bushing | $15.28 ApplianceParts Pro |
| 22B |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 49 |  | Refrigerator Door Gallon Bin | $43.25 Part Advantage |
| 75 | | 241696101NLA Refrigerator Handle Clip | Discontinued |
