Model
Kenmore 253.57188603
Refrigerator (Kenmore 25357188603)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57188603Refrigerator (Kenmore 25357188603)
9 diagrams323 parts

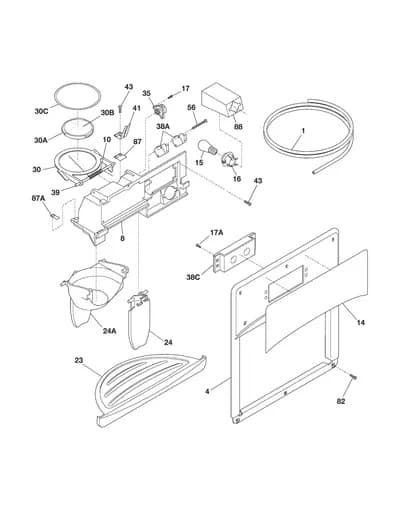

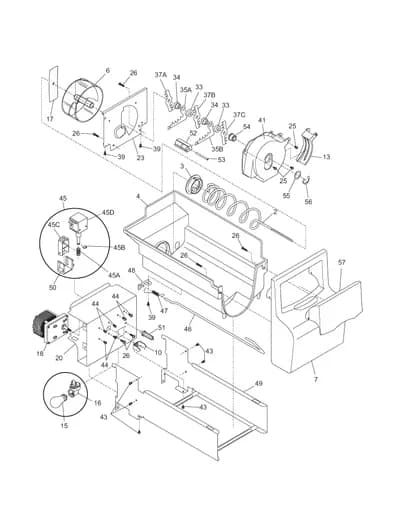

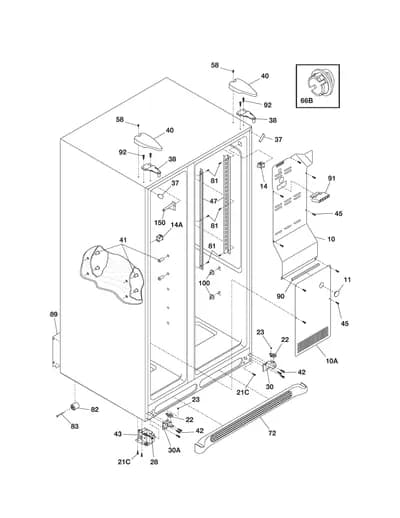

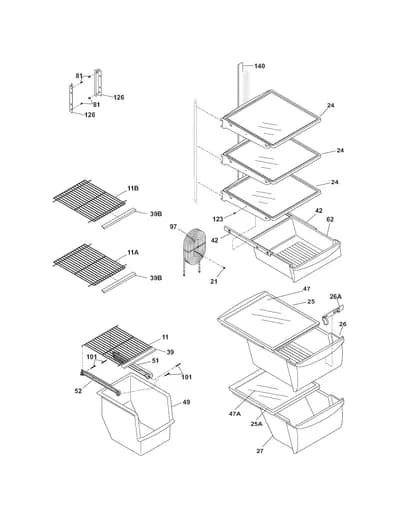

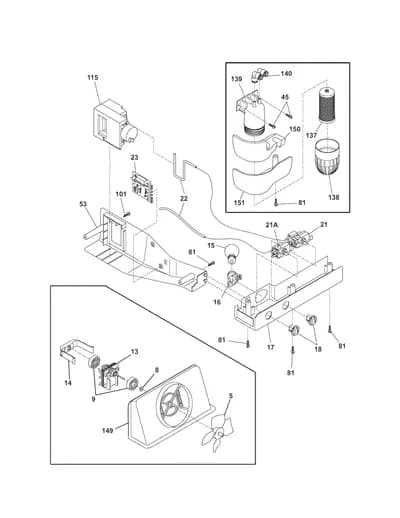

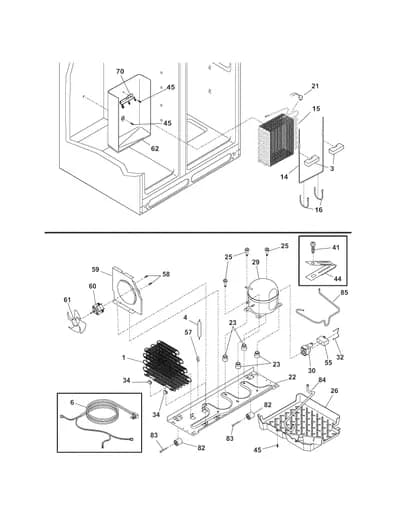

Parts Sections (9)
Diagram

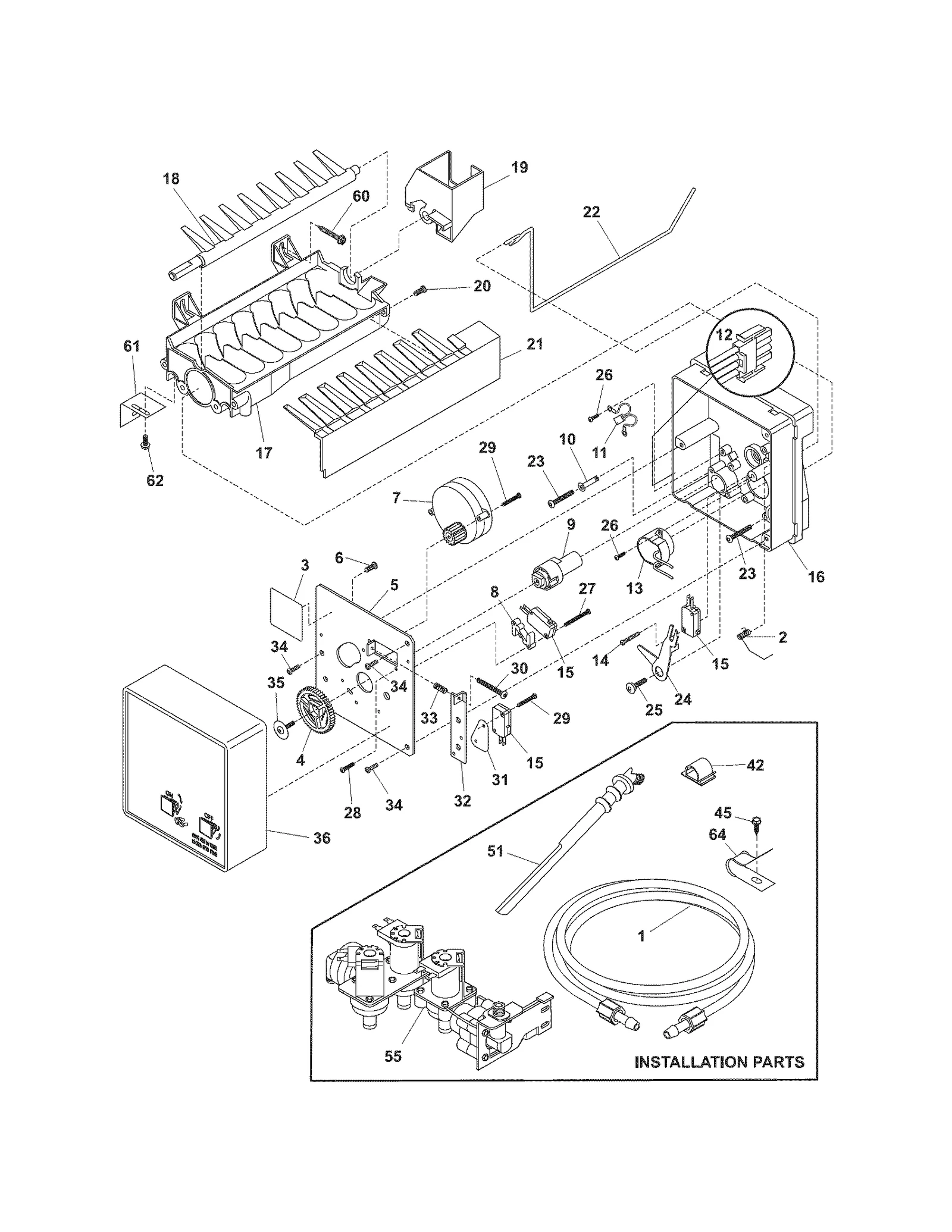

ICE MAKER
Parts in ICE MAKER
60 parts

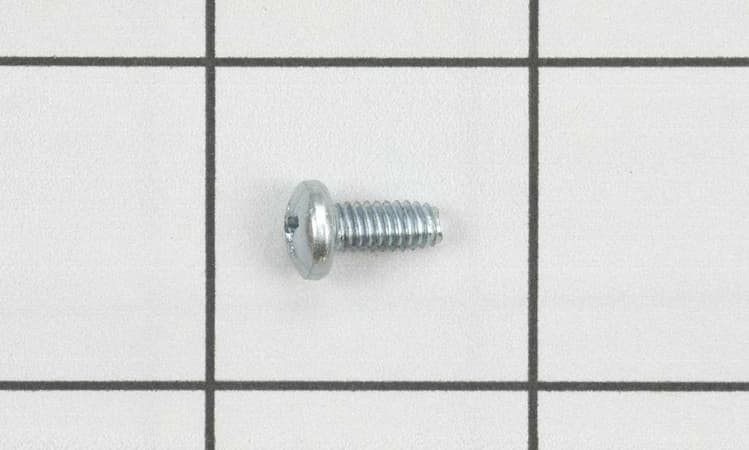

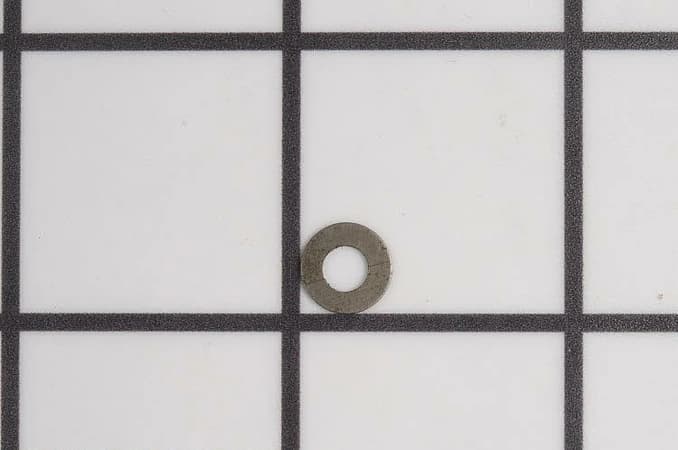

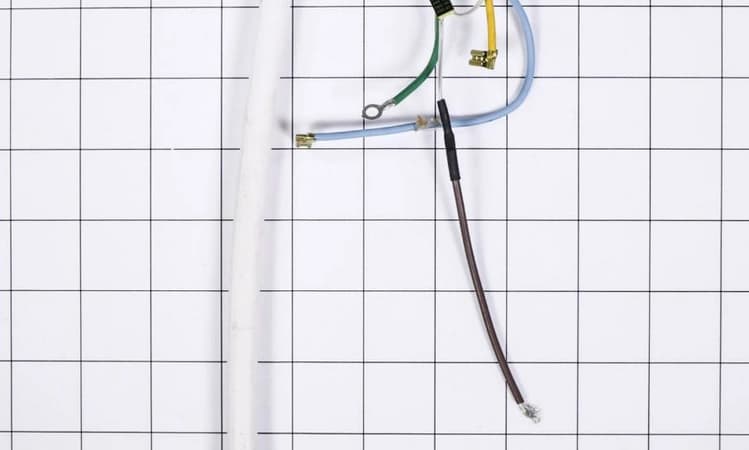

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Water Tubing | $34.86 Part Advantage |
| 2 |  | Shut-Off Spring | Discontinued |
| 3 |  | Nameplate | - |
| 4 |  | 5304469403replaces 5304456658 Gear | $14.14 Parts Dr |
| 5 |  | Mounting Plate | $33.60 ApplianceParts Pro |
| 6 | | Screw | - |
| 7 |  | 241798231replaces 5304445222 Ice Maker Motor | $67.90 Part Advantage |
| 8 | | 5304469404replaces 5304456661 Spacer Holder | $7.59 RepairClinic |
| 9 | | Cam | Discontinued |
| 10 |  | Washer | - |
| 11 | | Thermal Cuto | - |
| 12 |  | Refrigerator Wire Harness | - |
| 13 |  | Refrigerator Ice Maker Thermostat | $58.39 Parts Dr |
| 14 | | Screw | - |
| 15 |  | Refrigerator Ice Maker On/Off Switch | $57.85 Parts Dr |
| 16 |  | Refrigerator Ice Maker Module Housing | - |
| 17 | | 241798231replaces 5304456669 Ice Maker Mold | $67.90 Part Advantage |
| 18 | | 5304469384replaces 5304456670 Ice Ejector | - |
| 19 | | 241798231replaces 5304456671 Refrigerator Ice Maker Fill Cup | $67.90 Part Advantage |
| 20 |  | Screw | $10.95 ApplianceParts Pro |
| 21 | | 241798231replaces 5304456672 Refrigerator Ice Cube Ejector | $67.90 Part Advantage |
| 22 | | Shut-Off Arm | Discontinued |
| 23 |  | Screw | $8.73 RepairClinic |
| 24 |  | Refrigerator Ice Maker Shut-Off Arm Lever | $49.35 ApplianceParts Pro |
| 25 | | Screw | $15.34 ApplianceParts Pro |
| 26 | | Screw-ther | - |
| 27 | – | 5304456677 Screw | - |
| 28 |  | Screw | - |
| 29 |  | Refrigeration Appliance Screw, #3-3 x 12-mm | - |
| 30 |  | Timing Screw | - |
| 31 | | 5304469406replaces 5304456680 Insulator | - |
| 32 |  | Refrigerator Ice Maker Water Valve Switch Mounting Bracket | $15.20 RepairClinic |
| 33 | | 5304469401replaces 5304456682 Spring | - |
| 34 |  | 241679901replaces 5304456683 Screw | $10.94 ApplianceParts Pro |
| 35 |  | Screw | $12.67 RepairClinic |
| 36 | | 5304469385replaces 5304456685 Ice Maker Cover | $17.47 RepairClinic |
| 42 |  | Refrigerator Toe Grille Clip | $21.95 ApplianceParts Pro |
| 45 |  | Refrigerator Screw, #8-15 x 0.625-in | $10.31 Parts Dr |
| 51 |  | 241796405replaces 241523501 Refrigerator Ice Maker Fill Tube | $10.65 Part Advantage |
| 55 |  | 242252702replaces 240531101 Refrigerator Water Inlet Valve Assembly | $35.68 Parts Dr |
| 60 |  | 5304455852replaces 5303207328 Refrigerator Ice Maker Mounting Screw | $9.63 ApplianceParts Pro |
| 61 |  | 218721500replaces 5304456686 Refrigerator Ice Maker Leveling Bracket | $53.95 ApplianceParts Pro |
| 62 | – | 5304456687 Screw Ice Maker Bracket | - |
| 64 | | 75304455846replaces 5303001549 Clamp | $6.15 Part Advantage |
| NI |  | Refrigerator Screw, #10-32 x 0.5-in | $5.31 RepairClinic |
| NI |  | Universal/Multiflex (Frigidaire) Refrigerator Inlet Valve to Ice Maker Water Tubing | $52.61 Parts Dr |
| NI |  | Refrigerator Water Tubing | $71.06 Parts Dr |
| NI | | 218976907NLA Refrigerator Water Tubing | Discontinued |
| NI | | Refrigerator Wiring Harness | Discontinued |
| NI |  | Screw-should | $11.35 ApplianceParts Pro |
| NI |  | Refrigerator Water Inlet Valve Cap | $10.53 Parts Dr |
| NI |  | Refrigerator Water Tubing Seal | $11.89 Part Advantage |
| NI | | 241798231replaces 241642501 Refrigerator Ice Maker Assembly | $67.90 Part Advantage |
| NI | | Beam Spring | - |
| NI | | Refrigerator Wiring Harness | Discontinued |
| NI | | Terminal | - |
| NI | | Label | - |
| NI | | Washer | - |
| NI | | Nut | - |
| NI | | 5304456689replaces 5304456737 Washer | - |
