Model
Kenmore 253.57188604
Refrigerator (Kenmore 25357188604)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57188604Refrigerator (Kenmore 25357188604)
9 diagrams285 parts
Parts Sections (9)
Diagram

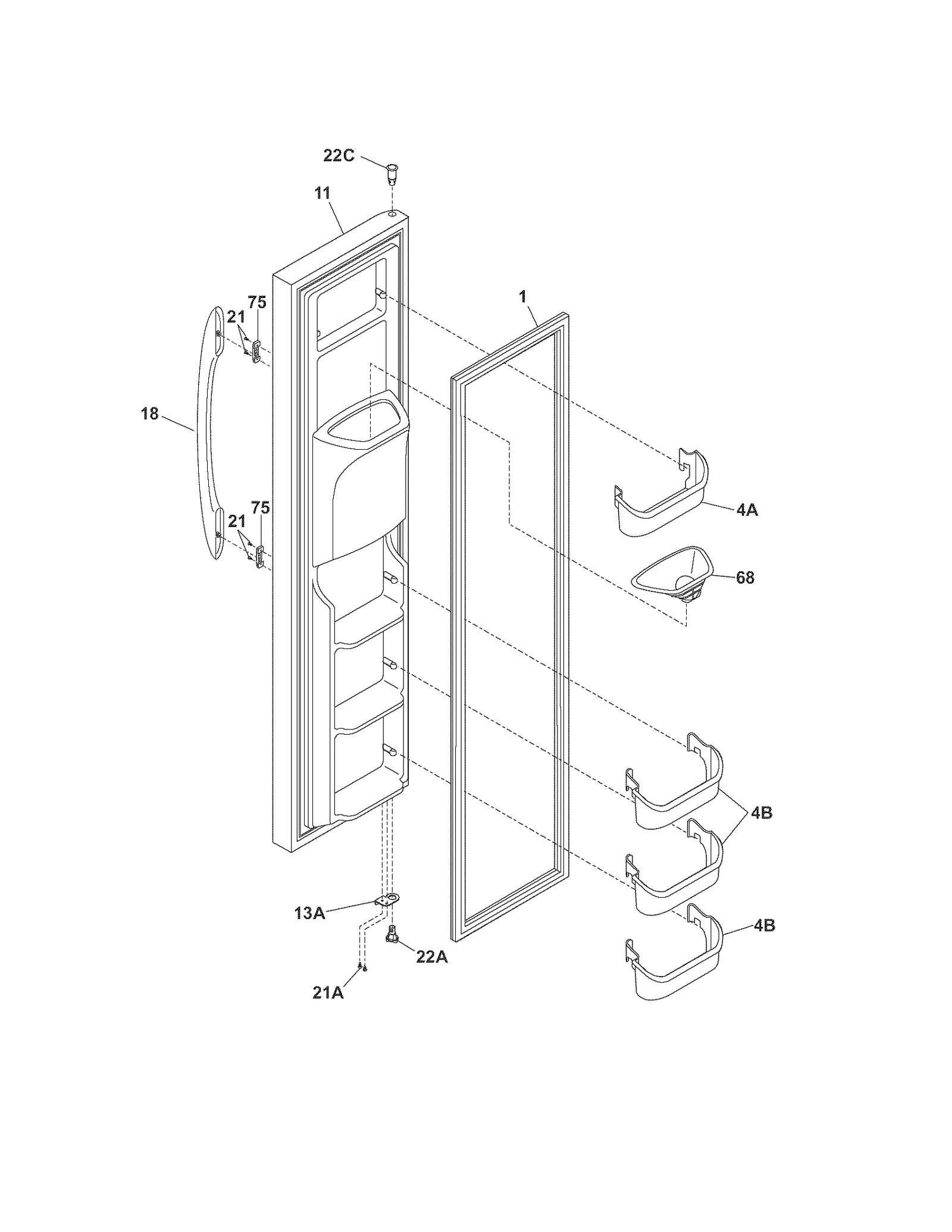

FREEZER DOOR
Parts in FREEZER DOOR
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 241786016replaces 241786008 Frigidaire Kenmore Refrigerator Freezer Door Gasket (Black) | $52.43 ApplianceParts Pro |
| 4A |  | Refrigerator Freezer Door Bin, Upper | $29.29 Parts Dr |
| 4B |  | Refrigerator Freezer Door Shelf Rail | $32.76 Part Advantage |
| 11 | – | 241526796 Refrigerator Freezer Door | - |
| 13A |  | Refrigerator Freezer Door Stop (Black) | $42.24 Part Advantage |
| 18 | | Refrigerator Door Handle | - |
| 21 |  | 216858001replaces 241696001 Refrigerator Screw | $9.94 ApplianceParts Pro |
| 21A |  | 5303323137replaces 240598402 Refrigerator Freezer Door Stop Screw | $8.39 ApplianceParts Pro |
| 22A |  | 242000502replaces 240328204 Refrigerator Hinge Bearing (Black) | $5.99 ApplianceParts Pro |
| 22C |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 68 |  | Refrigerator Dispenser Ice Chute | $56.95 ApplianceParts Pro |
| 75 | | 241696101NLA Refrigerator Handle Clip | Discontinued |
| NI | | Refrigerator Dispenser Cover Clip | - |
| NI |  | Refrigerator Screw | $2.67 ApplianceParts Pro |
| NI | | 5304521763replaces 240552101 Refrigerator Freezer Door Wire Harness | $32.69 Parts Dr |
| NI |  | Refrigerator Water Tube Fitting | $39.76 Part Advantage |
| NI |  | Refrigerator Dispenser Heater | $315.20 Parts Dr |
