Model
Kenmore 253.57189601
Refrigerator (Kenmore 25357189601)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57189601Refrigerator (Kenmore 25357189601)
9 diagrams323 parts
Parts Sections (9)
Diagram

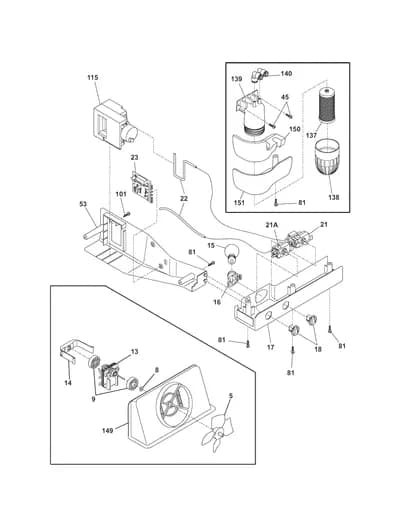

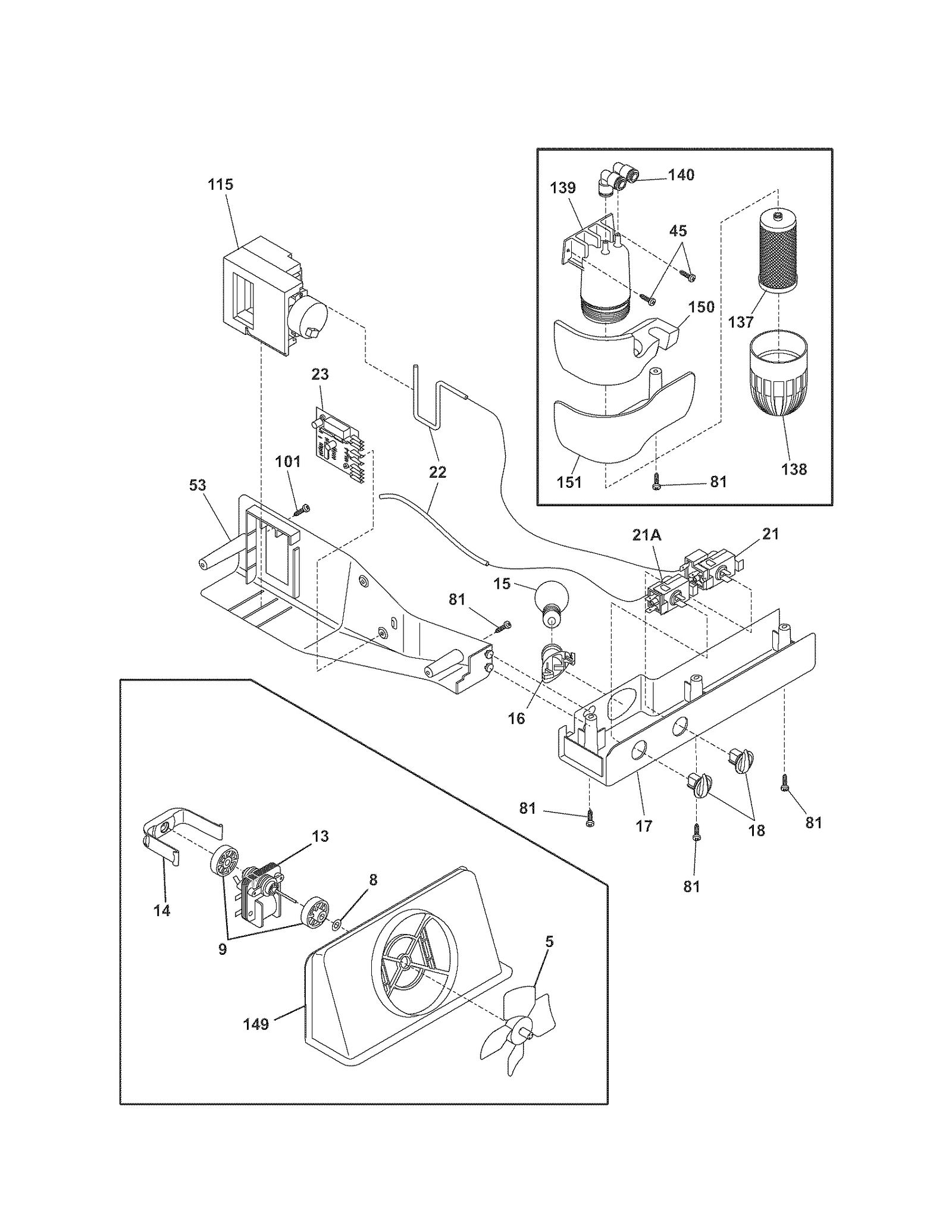

CONTROLS
Parts in CONTROLS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 8 |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| 9 |  | Refrigerator Evaporator Motor Mount Bushing | $12.63 Parts Dr |
| 13 |  | 5303918549replaces 240369702 Refrigerator Evaporator Motor | $41.09 Part Advantage |
| 14 |  | 242135301replaces 241517701 Refrigerator Clip | $6.48 RepairClinic |
| 15 |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | 218906802replaces 241513901 Light Socket | $10.24 Part Advantage |
| 17 | – | 240374007 Box-control,front | - |
| 18 |  | 240360801NLA Refrigerator Temperature Control Knob | Discontinued |
| 21 |  | 241537104replaces 241586501 Refrigerator Thermostat | $111.86 Part Advantage |
| 21A |  | 5304496561replaces 5304421067 Refrigerator Temperature Control | $80.91 Part Advantage |
| 22 |  | Crosley Refrigerator Temperature Sensor Cover | - |
| 23 |  | 242011001replaces 241736601 Refrigerator Control | $66.79 Parts Dr |
| 45 |  | Refrigerator Evaporator Cover Screw | $7.48 ApplianceParts Pro |
| 53 |  | Crosley Refrigerator Electronic Control Board Housing | - |
| 81 |  | Refrigerator Screw, #8-15 x 0.625-in | $10.31 Parts Dr |
| 101 |  | Refrigerator Control Box Screw | $6.16 ApplianceParts Pro |
| 115 |  | 241600906replaces 241600905 Refrigerator Damper Assembly | $52.38 Part Advantage |
| 137 |  | Refrigerator Water Filter Wrench | $2.66 Part Advantage |
| 137 |  | WFCBreplaces 9910 Genuine Kenmore Refrigerator Water Filter | $25.07 Parts Dr |
| 138 |  | Refrigerator Water Filter Cup O-Ring | $7.48 Part Advantage |
| 138 |  | 240434401replaces 240434403 Refrigerator Water Filter Cap | $43.88 Part Advantage |
| 139 |  | Refrigerator Water Filter Housing | $43.04 Part Advantage |
| 140 |  | Refrigerator Water Tube Fitting | $42.65 Part Advantage |
| 149 |  | 241528303replaces 241528305 Refrigerator Seal | $14.99 Parts Dr |
| 149 |  | 242204505replaces 241563401 Fan Shroud | - |
| 150 |  | 240394102NLA Refrigerator Water Filter Cover Insulation | Discontinued |
| 151 |  | Refrigerator Water Filter Cover | - |
| NI | | 241735702NLA Refrigerator Electronic Harness | Discontinued |
| NI |  | Refrigerator Screw | $12.95 ApplianceParts Pro |
