Model
Kenmore 253.57388602
Refrigerator (Kenmore 25357388602)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57388602Refrigerator (Kenmore 25357388602)
9 diagrams327 parts

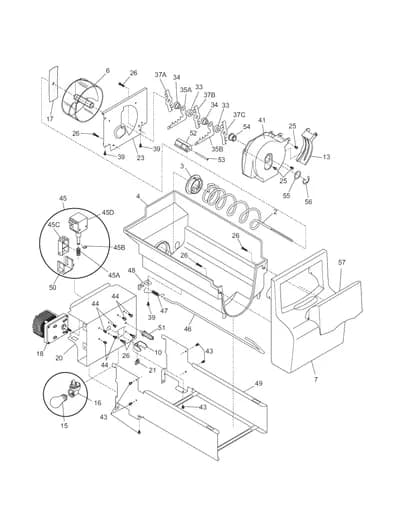

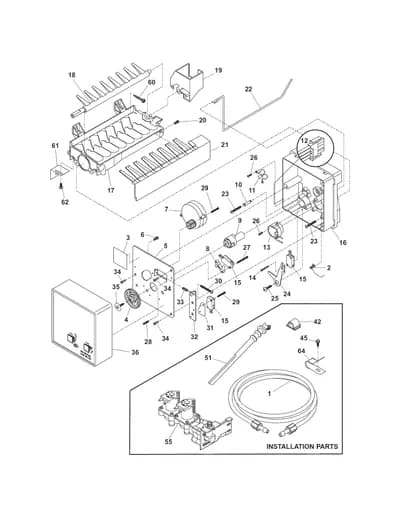

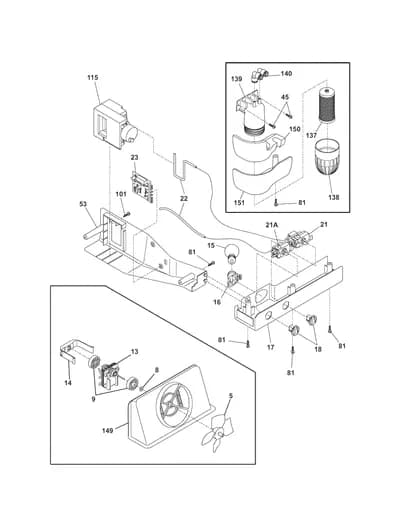

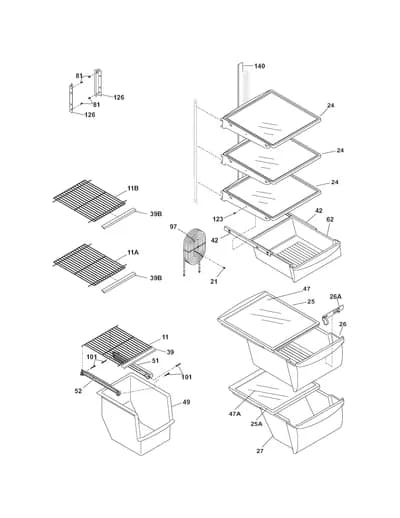

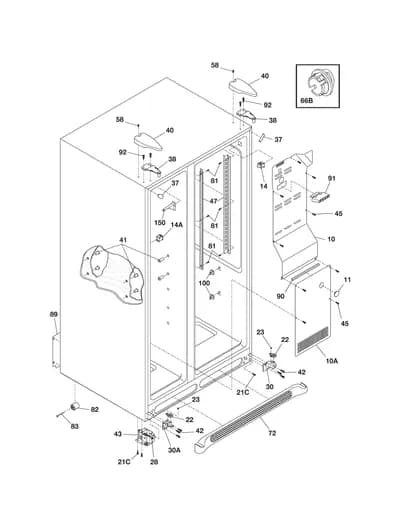

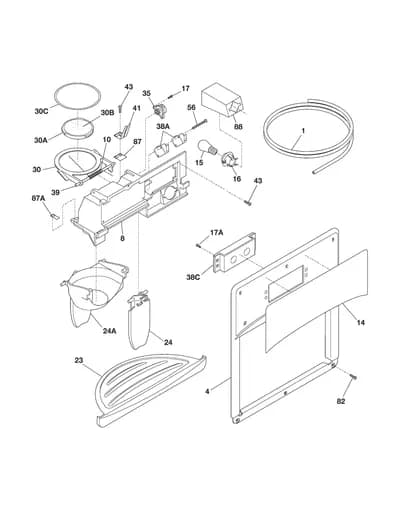

Parts Sections (9)
Diagram

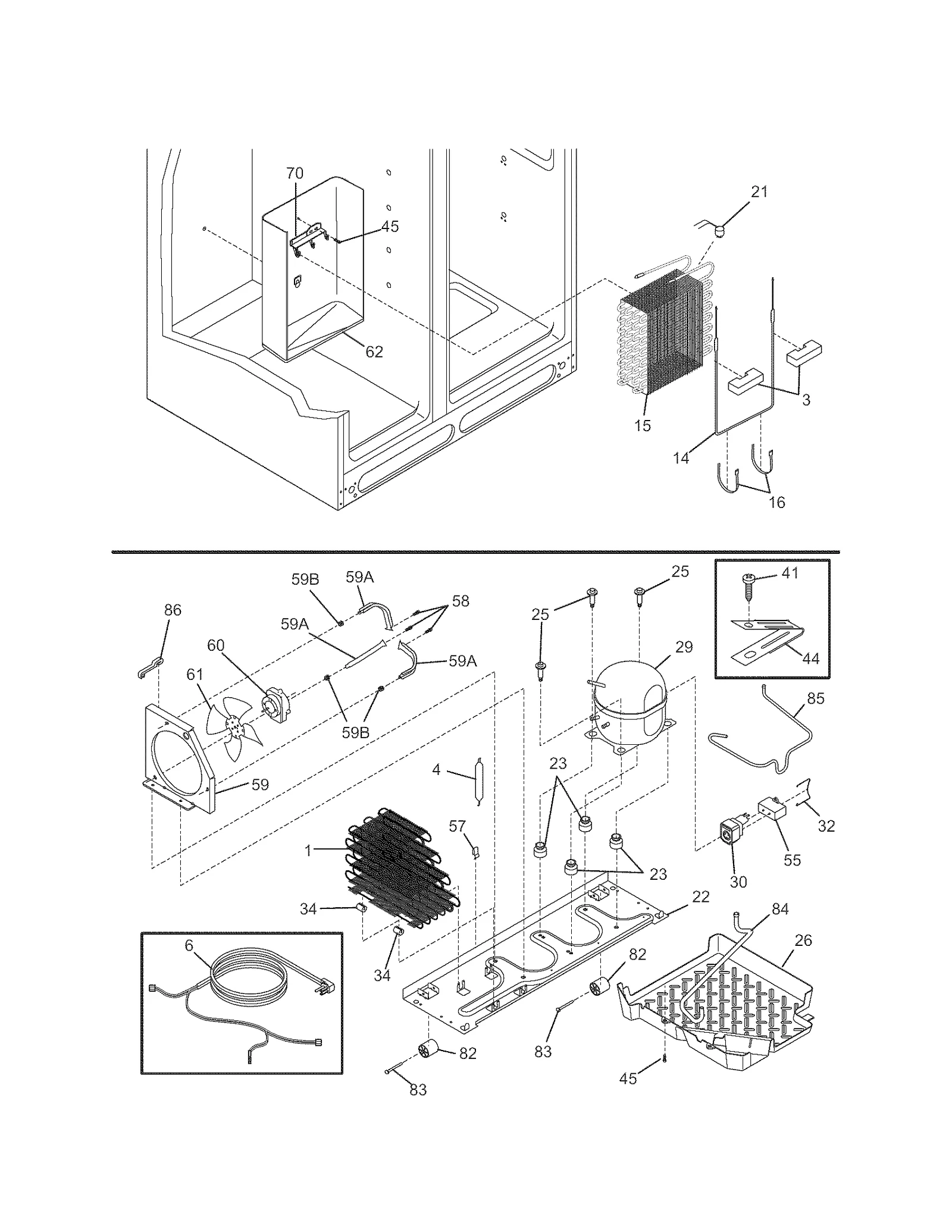

SYSTEM
Parts in SYSTEM
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304526057replaces 240333603 Refrigerator Condenser | $89.78 Parts Dr |
| 3 |  | 218679614replaces 218679607 Block Evaporator | $10.28 Parts Dr |
| 4 |  | 5303305677replaces 218944001 Refrigerator Filter Drier | $13.17 Parts Dr |
| 6 |  | 241586801NLA Refrigerator Wire Harness | Discontinued |
| 14 |  | 242044113replaces 240316107 Refrigerator Defrost Heater | $59.22 Part Advantage |
| 15 |  | Refrigerator Evaporator | $295.43 Parts Dr |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 21 |  | Refrigerator Defrost Bi-Metal Thermostat | $14.83 Part Advantage |
| 22 |  | Refrigerator Base Plate | $91.62 ApplianceParts Pro |
| 23 |  | 218513300replaces 241659701 Complete Grommet | $24.59 Part Advantage |
| 25 | | 240491503NLA Freezer Compressor Mounting Bolt | Discontinued |
| 26 |  | 241697603replaces 241697601 Refrigerator Defrost Pan | $50.49 Parts Dr |
| 29 |  | 5304475098replaces 5303918329 Refrigerator Compressor | $343.94 Part Advantage |
| 30 |  | Refrigerator Compressor Start Relay | $45.10 Part Advantage |
| 32 |  | Refrigerator Compressor Start Relay Cover Clip | $8.56 ApplianceParts Pro |
| 34 |  | Refrigerator Condenser Coil Grommet | $15.28 ApplianceParts Pro |
| 41 |  | Refrigerator Screw, #8-32-in | $7.77 Part Advantage |
| 44 |  | 5303001199replaces 215174700 Refrigerator Clamp | - |
| 45 |  | Refrigerator Screw, #8-15 x 0.625-in | $10.31 Parts Dr |
| 55 |  | 5304464438replaces 218909913 Chest Freezer Run Capacitor | $18.41 Part Advantage |
| 57 |  | Refrigerator Wire Harness Clip | - |
| 58 |  | 241953902replaces 240433203 Refrigerator Condenser Motor Bracket Screw | $9.89 Part Advantage |
| 59 |  | 241946105replaces 240315502 Refrigerator Shroud Condenser | - |
| 59A |  | Refrigerator Condenser Fan Motor Bracket | $8.74 RepairClinic |
| 59B | | Grommet Bracket | - |
| 60 |  | 297279500replaces 241584301 Motor | $78.33 Parts Dr |
| 61 |  | 241639502replaces 241639501 Refrigerator Condenser Fan Blade | $10.33 Part Advantage |
| 62 |  | 5304481642replaces 240429402 Trough-dra | - |
| 70 |  | Bracket Evaporator | - |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | Refrigerator Roller Wheel Axle Pin | $22.41 Parts Dr |
| 84 |  | 241957901replaces 5304421068 Refrigerator Drain Tube | $41.01 Parts Dr |
| 85 |  | 241856901replaces 241719501 Refrigerator Tube | $53.95 ApplianceParts Pro |
| 86 |  | Refrigerator Condenser Motor Spacer | $46.72 ApplianceParts Pro |
| NI |  | Refrigerator Screw | $10.30 Parts Dr |
| NI |  | Tappan Refrigerator Foam Tape | $21.46 Parts Dr |
| NI |  | Screw-fan Sh | - |
| NI | | 241651601NLA Refrigerator Wire Harness | Discontinued |
| NI | | 241735702NLA Refrigerator Electronic Harness | Discontinued |
| NI | | 5303918222NLA Refrigerator Hot Tube Repair Kit | Discontinued |
| NI |  | Refrigerator Heat Exchanger | $204.47 Part Advantage |
