Model
Kenmore 253.57677791
Side-By-Side Refrigerator (Kenmore 25357677791)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.57677791Side-By-Side Refrigerator (Kenmore 25357677791)
10 diagrams385 parts

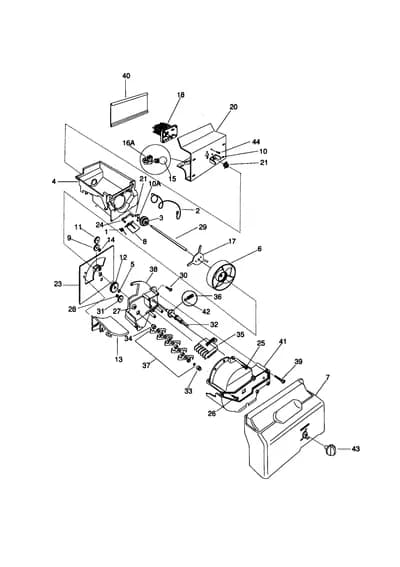

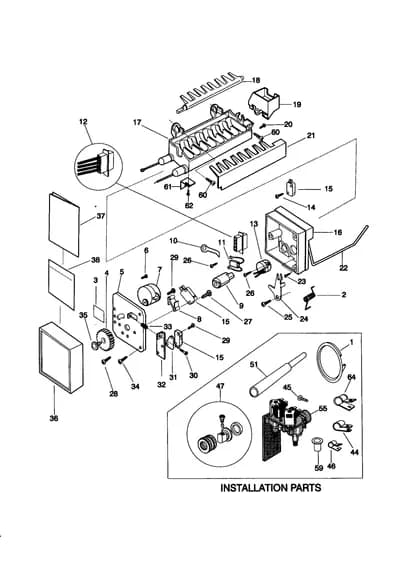

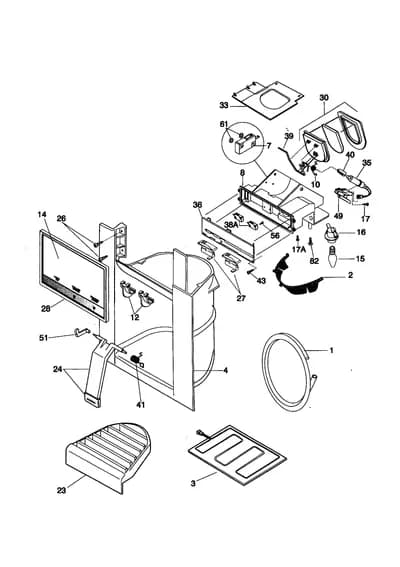

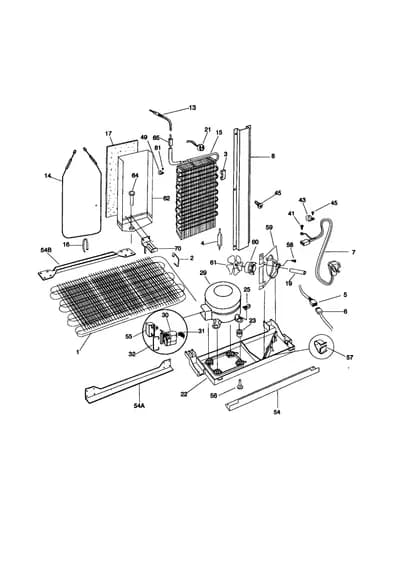

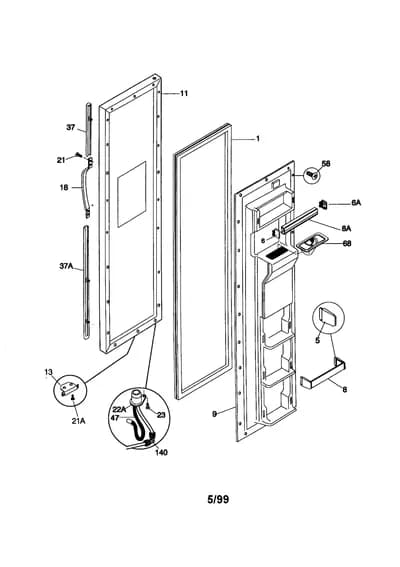

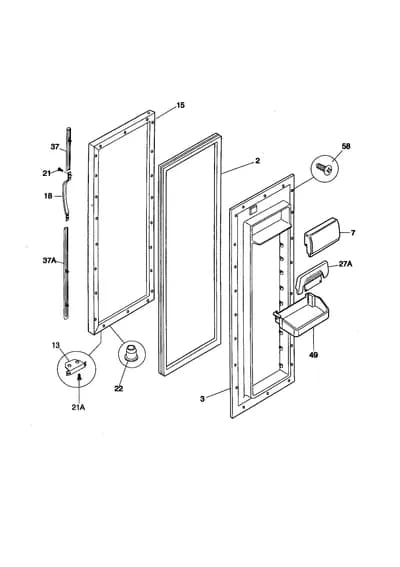

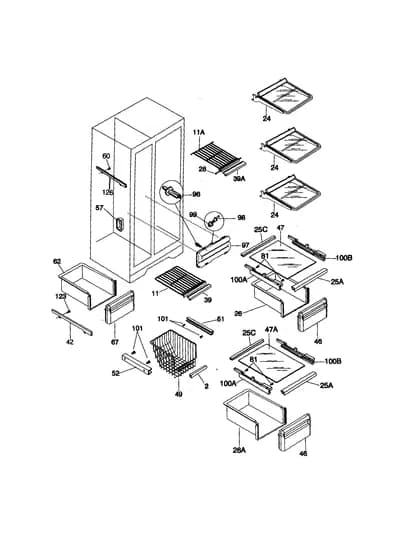

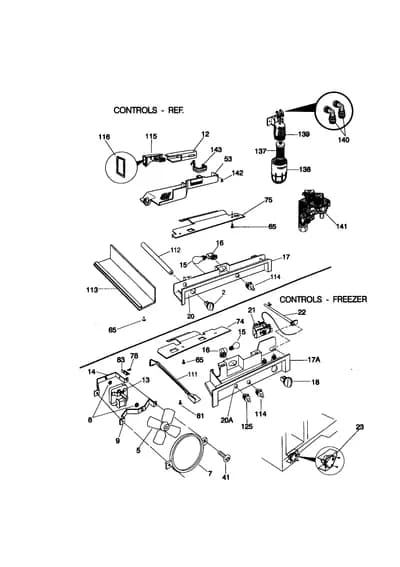

Parts Sections (10)
Diagram

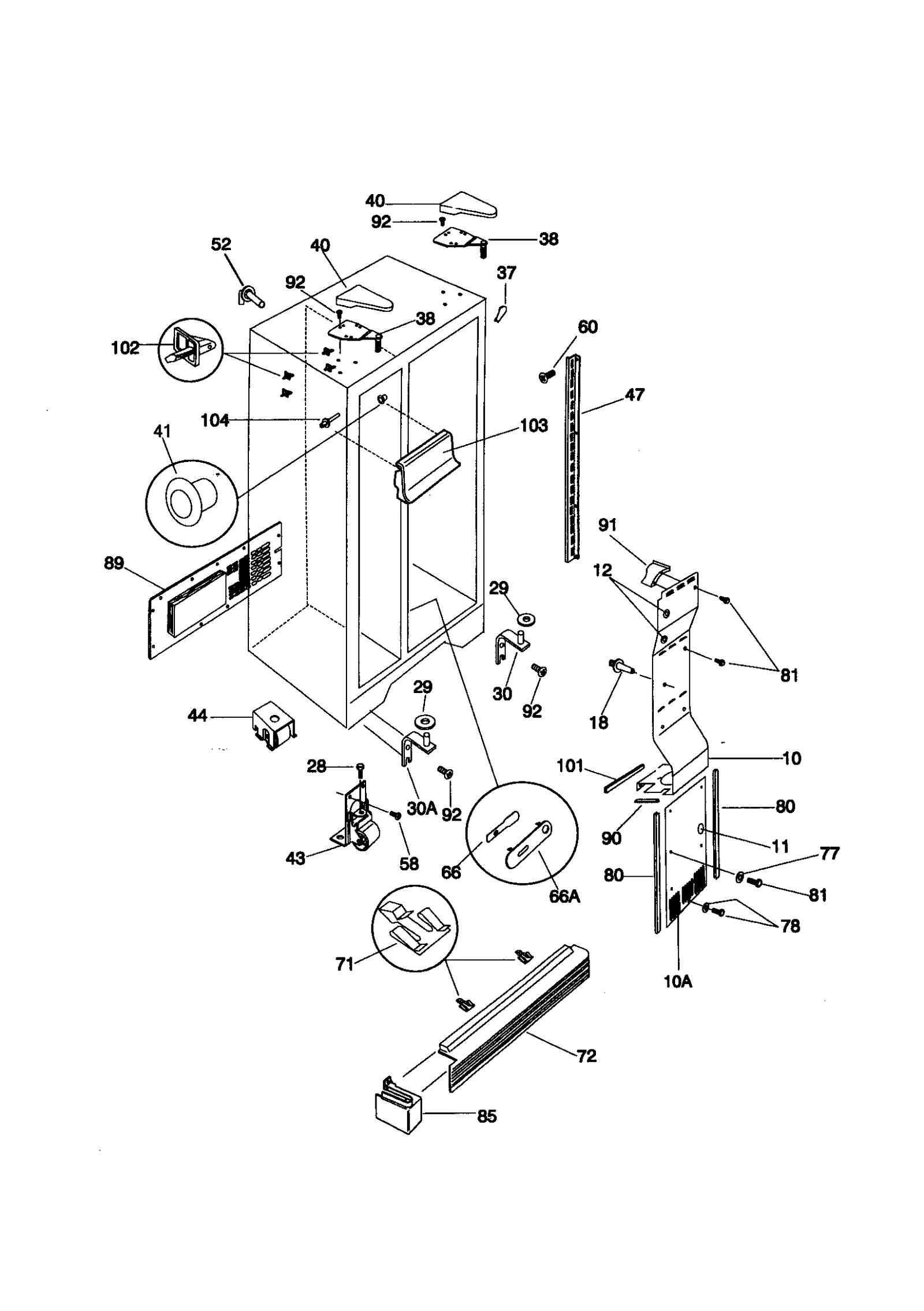

MACHINE COMPARTMENT COVER
Parts in MACHINE COMPARTMENT COVER
54 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | 215637602 Refrigerator Air Duct Cover | - |
| 10A | – | 215637400 Refrigerator Control Cover Evaporator | - |

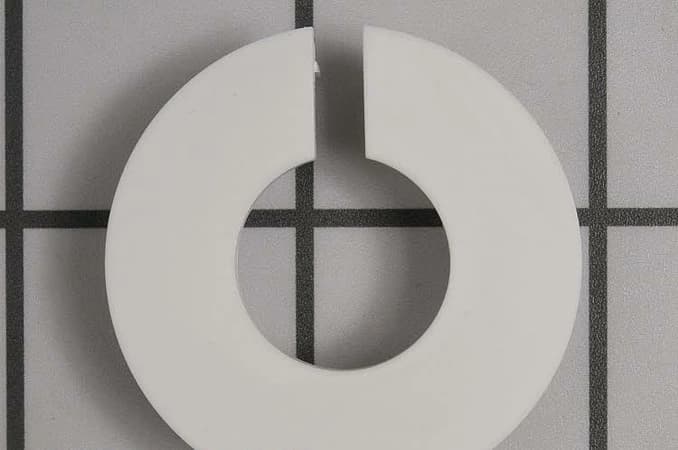

| 11 |  | Refrigerator Cabinet Hole Plug | $24.61 Part Advantage |
| 12 |  | 5303001147replaces 215230400 Plug Harness | $8.87 RepairClinic |
| 18 |  | Air Support | - |
| 18A | – | 5303289044 Air Support | - |
| 28 | | Refrigerator Bolt Roller | - |
| 29 | | Refrigerator Washer | - |
| 29A | – | 215314300 Washer | - |
| 29B | | 215598900NLA Flat Washer | Discontinued |
| 30 |  | 218993801replaces 215008900 L Low Hinge | - |
| 30A |  | 218993601replaces 215009100 Refrigerator Lower Bracket | - |
| 30B | | Tapping Plate | - |
| 30C | | Refrigerator Door Left Hinge Plate | - |
| 30D | | Washer | - |
| 37 | | 5303321081NLA Refrigerator Corner Trim | Discontinued |
| 37A |  | Refrigerator Corner Trim (Almond) | - |
| 38 | – | 218215219 Bracket-uppe | - |
| 38A | – | 218215217 Bracket-uppe | - |
| 38B | – | 218215222 Bracket-uppe | - |
| 38C | | 218215224NLA Bracket-uppe | Discontinued |
| 40 | | Refrigerator Door Hinge Cover, Upper (White) | - |
| 40A | | Refrigerator Door Hinge Cover, Upper (Almond) | - |
| 41 |  | 5304509705replaces 5303001609 Refrigerator Shelf Mounting Grommet | $5.41 Part Advantage |
| 43 | | 218615300NLA Refrigerator Roller | Discontinued |
| 43A | | Refrigerator Screw | - |
| 44 | | Refrigerator Roller | - |
| 47 |  | Refrigerator Shelf Support | - |
| 52 |  | Refrigerator Ice Maker Fill Tube | $77.85 PartSelect |
| 58 |  | 5304455651replaces 5308002748 Refrigerator Screw | $7.77 Part Advantage |
| 60 |  | 5304455852replaces 5303207328 Refrigerator Ice Maker Mounting Screw | $9.63 ApplianceParts Pro |
| 66 | | Meat Damper | - |
| 66A | | Meat Keeper Cover | - |
| 71 | | Refrigerator Toe Grille Clip | - |
| 71A | – | 215608400 Screw-clip/g | - |
| 72 | | Refrigerator Toe Grille | - |
| 72A | | 5303295758NLA Refrigerator Toe Grille (Almond) | Discontinued |
| 77 | – | 5303001216 Washer | - |
| 78 | | 5304455651replaces 5303274237 Refrigerator Bracket Screw | $7.77 Part Advantage |
| 78A | – | 5308009617 Washer | - |
| 80 | | Complete Seal Coil | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 85 | | Lo Hinge Cov | - |
| 85A | | Lower Hinge Cover | - |
| 89 | – | 215176300 Cover-machin | - |
| 90 | – | 215022602 Refrigerator Foam Seal | - |
| 90A | – | 5303322647 Refrigerator Foam Tape | - |
| 91 | | Air Deflector | $8.30 RepairClinic |
| 92 |  | 241710601replaces 5303001479 Screw | $7.79 Part Advantage |
| 101 | | Refrigerator Foam Seal | - |
| 102 | | Support Motor | - |
| 103 |  | Door-ice Acc | - |
| 104 | | Special Support | - |
| 104A | – | 3001212 Divider Screw | - |
