Kenmore 253.58082897
Side-By-Side Refrigerator (Kenmore 25358082897)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58082897Side-By-Side Refrigerator (Kenmore 25358082897)
10 diagrams386 parts

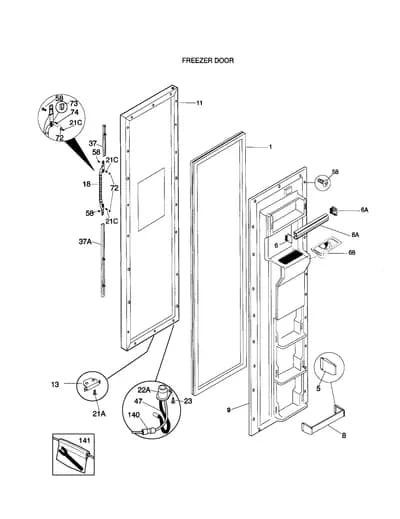

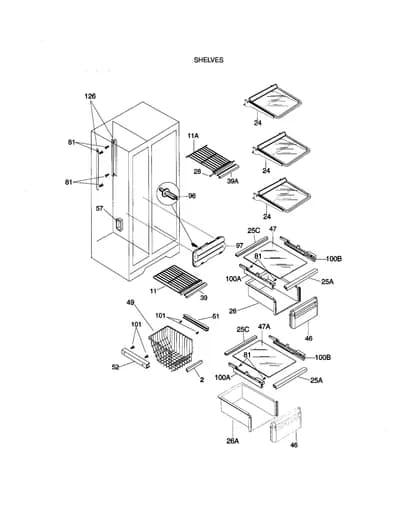

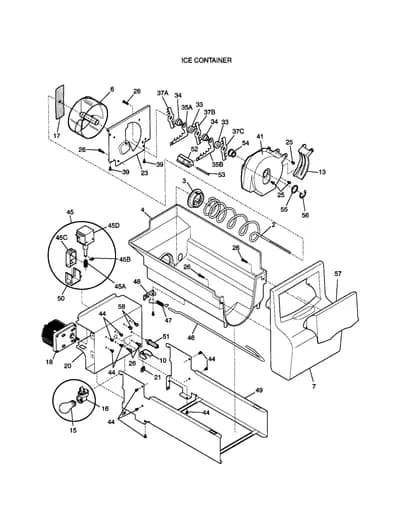

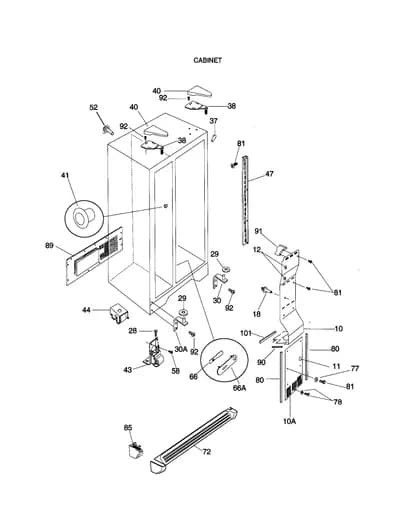

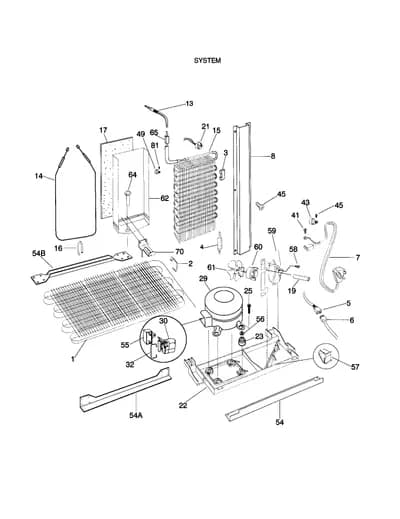

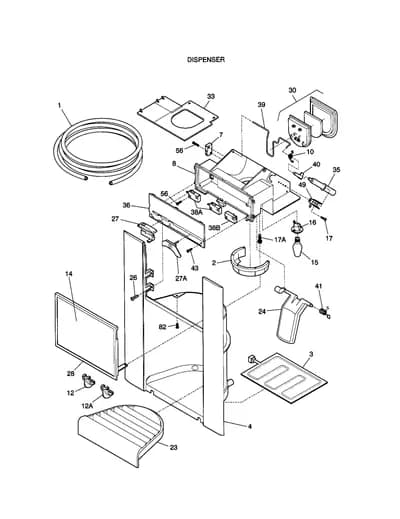

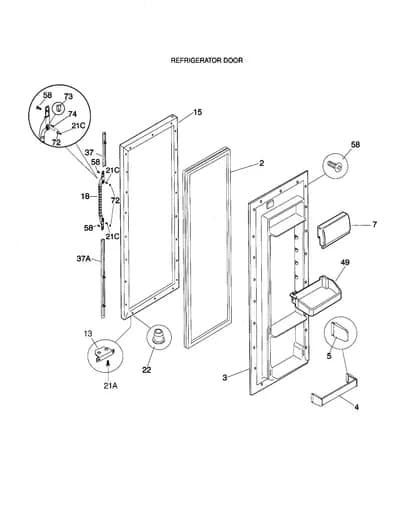

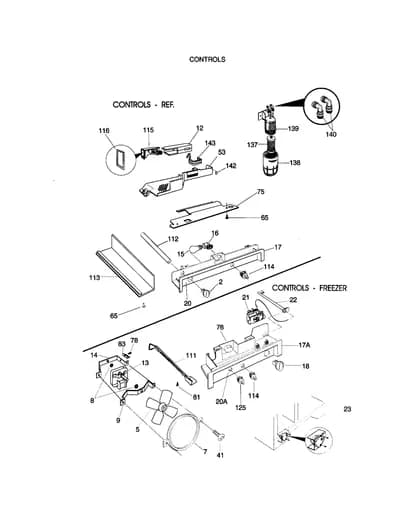

Parts Sections (10)
Diagram

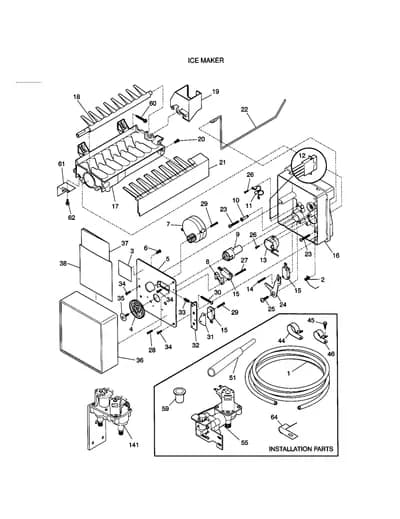

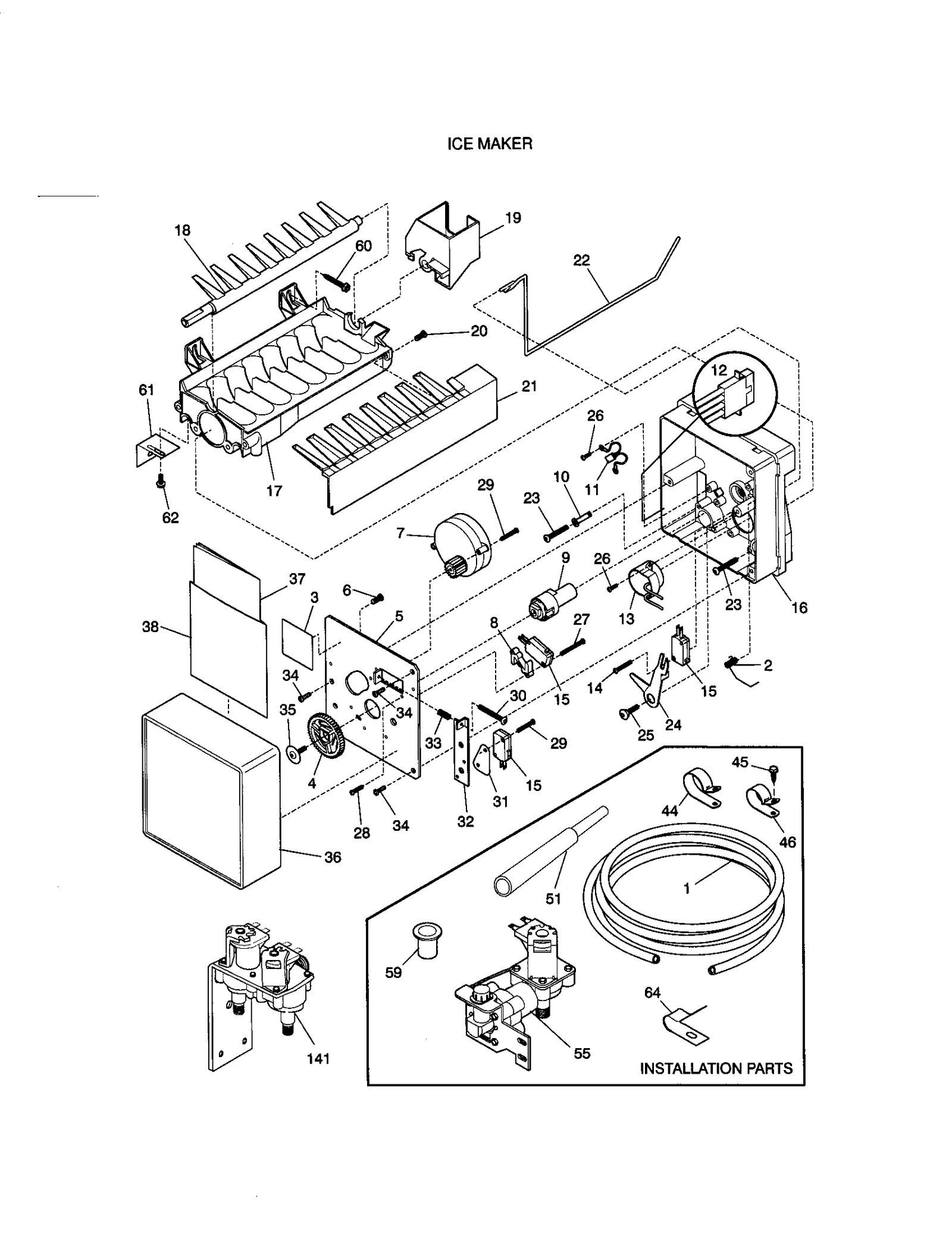

ICE MAKER
Parts in ICE MAKER
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308010366replaces 5318582501 Water Tube | $9.40 Part Advantage |
| 1A |  | 5304423969replaces 218832302 Water Tube | - |
| 1B | | 5304423967replaces 218859901 Water Tube | - |
| 1C | | Refrigerator Tubing | - |
| 2 | | Spring | Discontinued |
| 3 | – | 3206299 Refrigerator Ice Maker Decal | - |
| 4 | – | 3203601 Refrigerator Gear | - |
| 5 | – | 3206303 Refrigerator Ice Maker Cover Bracket | - |
| 6 |  | 218359202replaces 3206305 Screw | $8.52 Parts Dr |
| 7 |  | 5303918277replaces 3206306 Refrigerator Ice Maker Assembly | $47.66 Part Advantage |
| 8 | | 5304469404replaces 3206312 Spacer | $7.59 RepairClinic |
| 9 | | Cam | Discontinued |
| 10 | | Clamp | $12.63 RepairClinic |
| 11 |  | Kenmore Pro Refrigerator Ice Maker Thermal Cut-Off | - |
| 12 | | 3206349NLA Refrigerator Ice Maker Wire Harness | Discontinued |
| 12A | | Refrigerator Ice Maker Wire Harness Connector | - |
| 13 |  | Refrigerator Ice Maker Thermostat | $51.82 RepairClinic |
| 14 | – | 3206323 Refrigerator Ice Maker Motor Screw | - |
| 15 |  | 5304456667replaces 3206324 Switch | $57.85 Parts Dr |
| 16 | | Support | - |
| 17 |  | 241798231replaces 5303320545 Ice Maker Mold | $67.90 Part Advantage |
| 18 | | 5304469384replaces 3206328 Ejector | - |
| 19 | | Bearing | - |
| 20 | – | 3206331 Screw | - |
| 21 | | Ice Stripper | Discontinued |
| 22 | | Arm | Discontinued |
| 23 | – | 3206334 Screw | - |
| 24 |  | 5304456675replaces 3206335 Arm | $49.35 ApplianceParts Pro |
| 25 | | 5304456676replaces 3206336 Screw | $15.34 ApplianceParts Pro |
| 26 | – | 3206337 Screw | - |
| 27 | – | 3206338 Screw | - |
| 28 | – | 3206339 Screw | - |
| 29 | – | 3206340 Screw | - |
| 30 | – | 3206341 Screw | - |
| 31 | | 5304469406replaces 3206342 Insulator | - |
| 32 |  | Refrigerator Ice Maker Fill Switch Bracket | $9.34 RepairClinic |
| 33 | | 5304469401replaces 3206344 Spring | - |
| 34 | – | 3206345 Screw | - |
| 36 | | 5304469385replaces 3206347 Cover | $17.47 RepairClinic |
| 37 | – | 5303320544 Technical Data Sheet | - |
| 38 | – | 5303207445 Envelope | - |
| 44 | | Refrigerator Water Tubing Clamp | $20.37 PartSelect |
| 45 |  | 5304455651replaces 5303001343 Screw | $7.77 Part Advantage |
| 46 |  | Refrigerator Water Tubing Clamp | - |
| 51 |  | Fill Tube | Discontinued |
| 55 |  | Refrigerator Water Inlet Valve | $47.19 Part Advantage |
| 55A |  | 240542901replaces 218873001 Cap-water Va | $10.53 Parts Dr |
| 59 |  | Sleeve | - |
| 60 |  | 5304455852replaces 5303207328 Refrigerator Ice Maker Mounting Screw | $9.63 ApplianceParts Pro |
| 61 |  | Electrolux Refrigerator Ice Maker Leveling Bracket | $53.95 ApplianceParts Pro |
| 62 |  | 240555002replaces 218737900 Screw | $7.77 Part Advantage |
| 64 | | 75304455846replaces 5303001549 Clamp | $6.15 Part Advantage |
| 141 |  | Refrigerator Water Inlet Valve Assembly | $58.32 Parts Dr |
