Model
Kenmore 253.58085897
Side-By-Side Refrigerator (Kenmore 25358085897)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58085897Side-By-Side Refrigerator (Kenmore 25358085897)
10 diagrams386 parts
Parts Sections (10)
Diagram

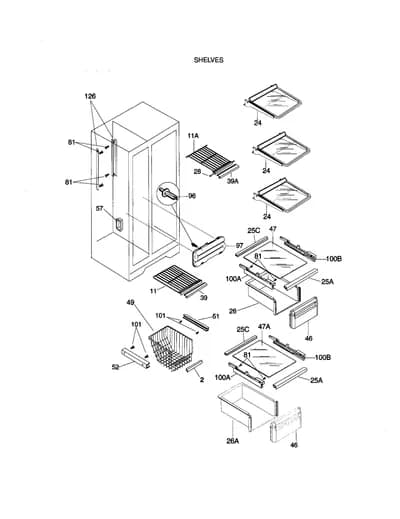

SHELVES
Parts in SHELVES
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 5303300707 Refrigerator Basket Trim | - |
| 11 |  | Refrigerator Freezer Wire Shelf | - |
| 11A | | Refrigerator Freezer Shelf | - |
| 11AA | | Refrigerator Spacer | - |
| 24 | – | 218746204 Spill Safe S | - |
| 25A | | 218015301NLA Refrigerator Crisper Drawer Trim | Discontinued |
| 25C | | 218015401NLA Refrigerator Pan Cover Trim | Discontinued |
| 26 |  | Refrigerator Crisper Drawer | $93.65 Part Advantage |
| 26A |  | 5303288968NLA Refrigerator Crisper Drawer | Discontinued |
| 28 | | Refrigerator Cap | $2.35 RepairClinic |
| 39 | | Refrigerator Freezer Shelf Trim | - |
| 39A | | Trim-frzr Sh | - |
| 46 | | Refrigerator Crisper Drawer Window | - |
| 46A | – | 5303423114 Lo Store Pan | - |
| 46B | | Refrigerator Trim | - |
| 47 | – | 218498151 Refrigerator Glass Shelf | - |
| 47A | | 215723551NLA Refrigerator Glass Shelf | Discontinued |

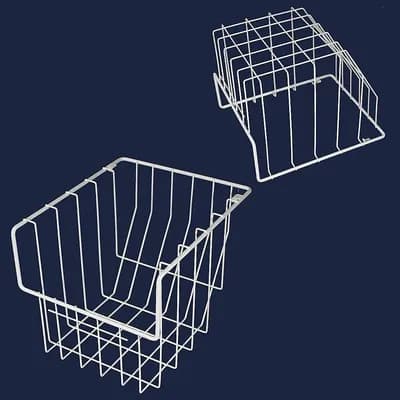

| 49 |  | Refrigerator Sliding Basket | - |
| 51 |  | Refrigerator Hanger Basket | - |
| 52 |  | Refrigerator Hanger Basket | - |
| 57 | | Inner Ferrule | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 96 |  | Refrigerator Water Reservoir Support | - |
| 97 |  | 5303918258replaces 218871301 Refrigerator Water Tank | $69.61 Part Advantage |
| 100A |  | 218015501NLA Refrigerator Crisper Drawer Cover Support | Discontinued |
| 100B | | 218015601NLA Refrigerator Crisper Drawer Shelf Frame Support | Discontinued |
| 101 | | 5304455650replaces 215005000 Refrigerator Screw | $10.31 Parts Dr |
| 126 |  | 241674401replaces 218867401 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126A |  | 241674402replaces 218867402 Refrigerator Channel | - |
