Model
Kenmore 253.58085899
Side-By-Side Refrigerator (Kenmore 25358085899)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58085899Side-By-Side Refrigerator (Kenmore 25358085899)
10 diagrams380 parts
Parts Sections (10)
Diagram

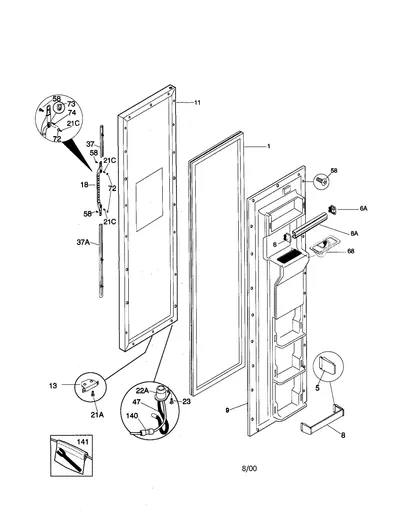

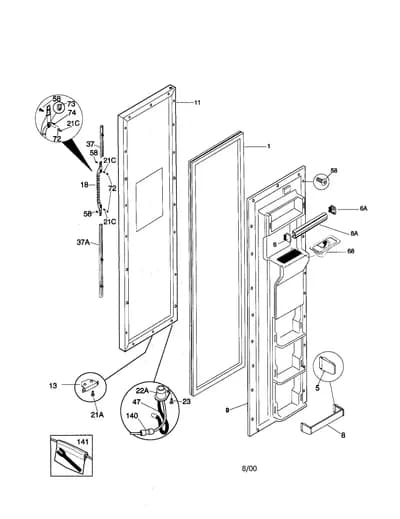

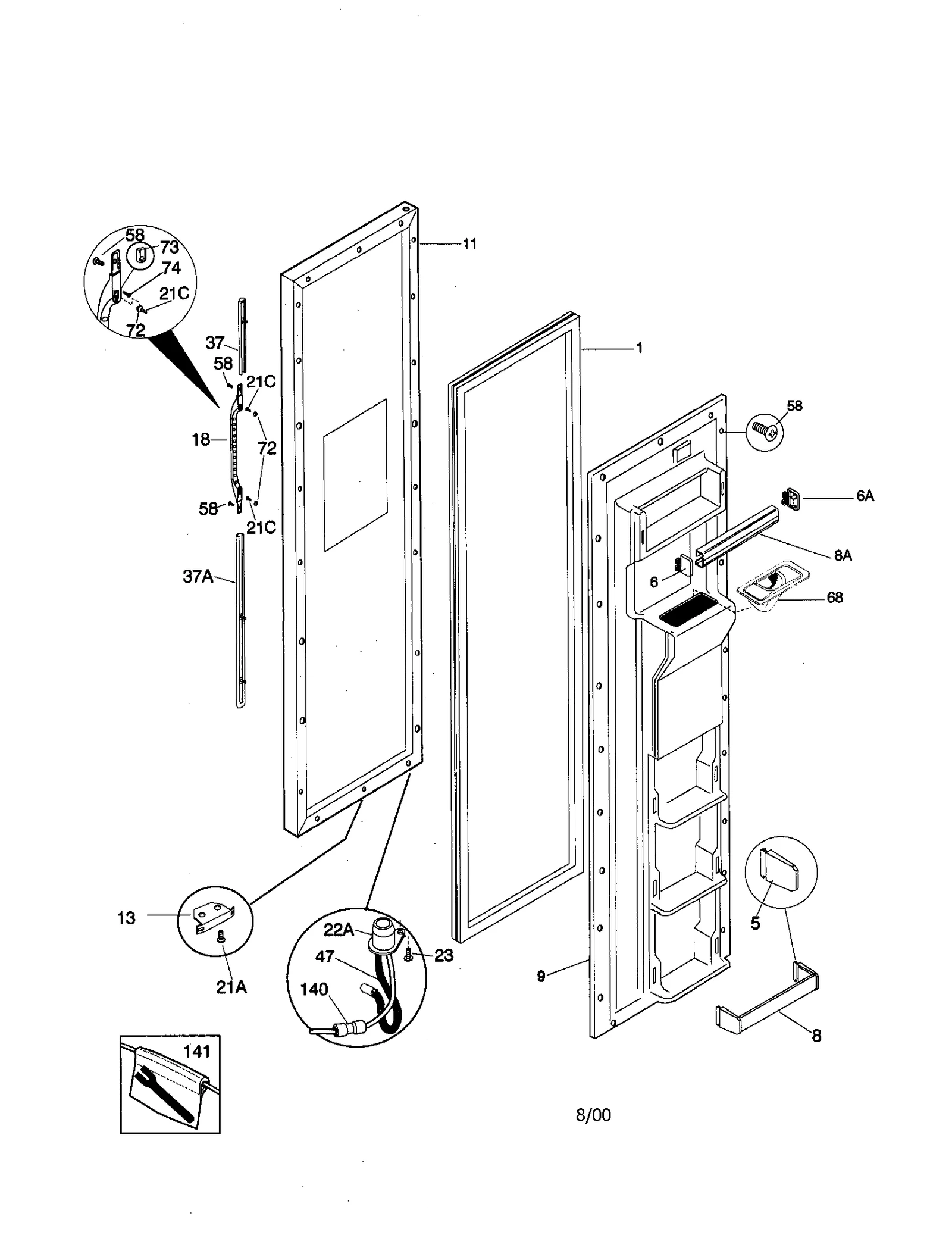

FREEZER DOOR
Parts in FREEZER DOOR
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303288954replaces 215734311 Refrigerator Freezer Gasket | - |
| 1A | | Refrigerator Freezer Gasket | - |
| 5 |  | 215473602replaces 215473601 Refrigerator Door Support | $2.57 Part Advantage |
| 6 |  | 3206166replaces 5303324303 Lh Rack Asm | $5.72 Part Advantage |
| 6A |  | 3206165replaces 5303324321 Rh Rack Sup | $4.42 Part Advantage |
| 8 |  | Refrigerator Freezer Door Rack | - |
| 8A | – | 215806341 Refrigerator Door Rack | - |
| 9 | – | 218748601 Refrigerator Inner Panel | - |
| 11 | – | 5303918098 Wt Fz Dr Pnl | - |
| 11A | – | 5303918129 Panel-ext Fr | - |
| 11B | – | 5303918099 Panel-ext Fr | - |
| 13 | | Refrigerator Door Stop | - |
| 18 |  | 297272500replaces 218803901 Upright Freezer Door Handle (White) | $45.51 Part Advantage |
| 18A | | Refrigerator Door Handle (Gray) | Discontinued |
| 18B | | 218803902NLA Ald Dr Handl | Discontinued |
| 21A |  | Refrigerator Door Stop Screw, #10-16 x 3/4-in | - |
| 21C |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| 22A | | 215615300NLA Refrigerator Door Bushing | Discontinued |
| 23 |  | Refrigerator Door Hinge Bushing | - |
| 37 | | Refrigerator Door Handle Trim, Upper (White) | - |
| 37A | | Refrigerator Handle Trim | - |
| 37AA | – | 218779306 Lo Hand Trim | - |
| 37AB | – | 218779305 Refrigerator Trim | - |
| 37AC | | 218776501replaces 218776600 Tri Snap | - |
| 37B | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 37C | | 218779308NLA Up Trim Hand | Discontinued |
| 47 | | 218922901NLA Refrigerator Wiring Harness | Discontinued |
| 58 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 68 | | Refrigerator Dispenser Ice Chute | - |
| 72 |  | Refrigerator Door Handle Mounting Grommet | - |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 140 | | Refrigerator Water Tube Fitting | - |
| 141 | | 218975801replaces 218929601 Push Complete Tool | $18.85 |
