Model
Kenmore 253.58677892
Side-By-Side Refrigerator (Kenmore 25358677892)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58677892Side-By-Side Refrigerator (Kenmore 25358677892)
10 diagrams377 parts

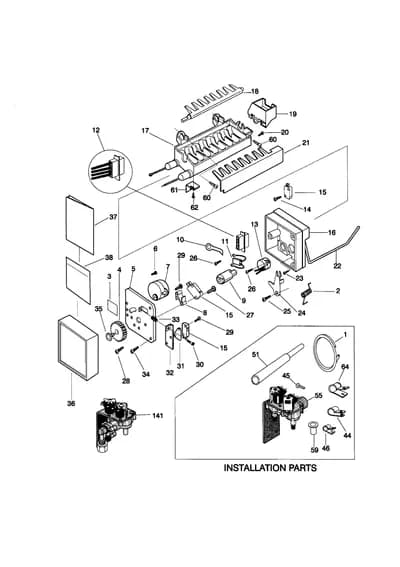

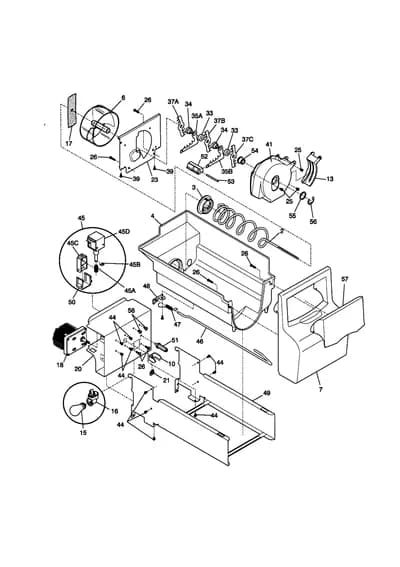

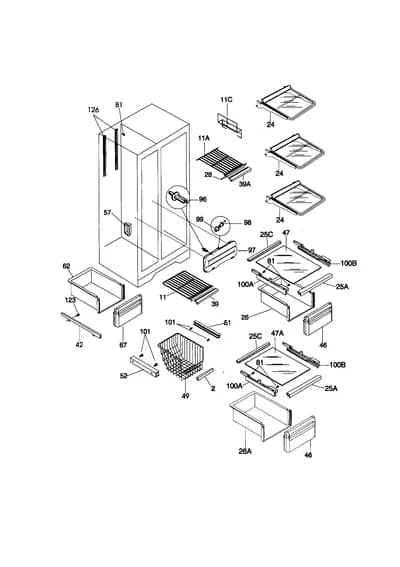

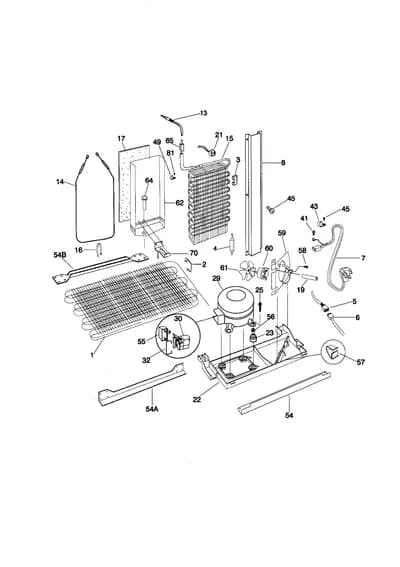

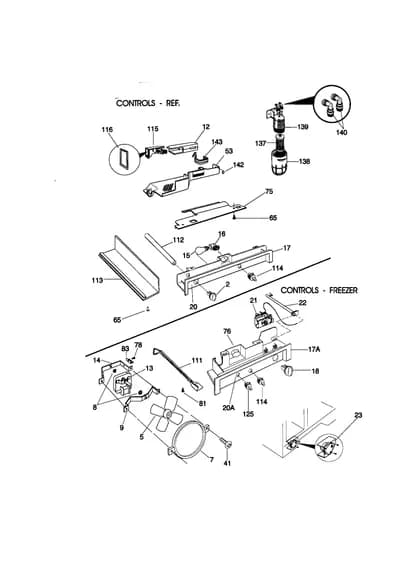

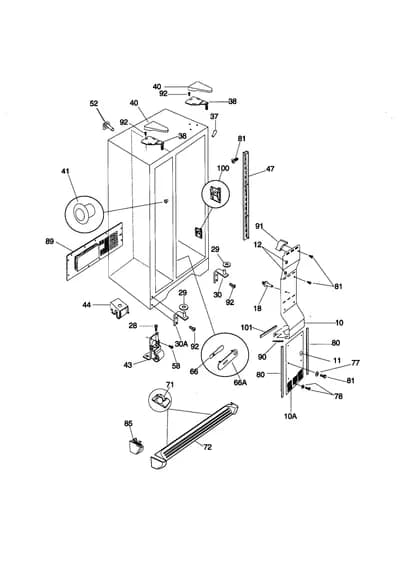

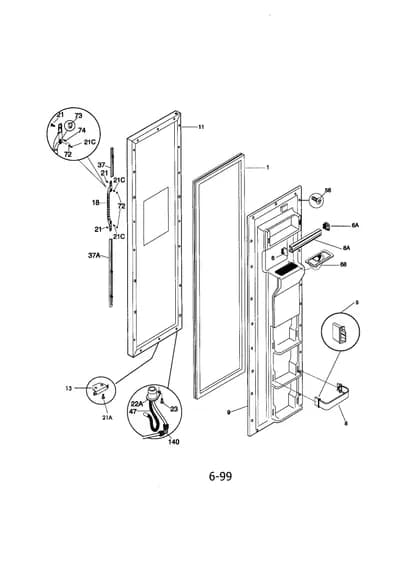

Parts Sections (10)
Diagram

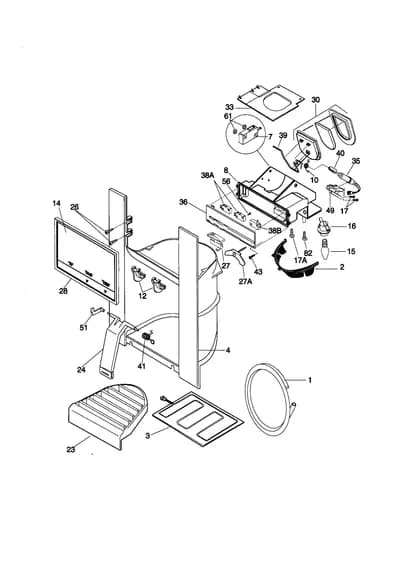

DISPENSER
Parts in DISPENSER
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Cut-to-Length Water Tubing | $9.40 Part Advantage |
| 1A |  | Refrigerator Water Tubing | - |
| 1B | | 218658301NLA Refrigerator Ice Maker Water Tubing | Discontinued |
| 1C |  | Refrigerator Water Inlet Tube | - |
| 2 | | 218505301NLA Deflector-ic | Discontinued |
| 2A | | Refrigerator Deflector | - |
| 3 | | Refrigerator Door Heater | - |
| 4 | | 215922301NLA Housing Dispenser | Discontinued |
| 4A | | Housing Dispenser | - |
| 7 | – | 218264800 SWITCH - ACTUATOR, MICRO | - |
| 8 |  | Refrigerator Dispenser Ice Chute | - |
| 10 | | 5304401779replaces 218209800 Refrigerator Dispenser Spring | - |
| 12 | | Refrigerator Select Knob | - |
| 12A | | Refrigerator Selector Knob | - |
| 14 | – | 218416173 Refrigerator Module Cover | - |
| 14A | – | 218416174 Cover Label Module | - |
| 15 |  | 5304519036replaces 218284900 Refrigerator Bulb | $40.25 Parts Dr |
| 16 |  | 240548901replaces 215284900 Refrigerator Light Socket | $34.43 Part Advantage |
| 17 | | Dispenser Screw | $6.21 RepairClinic |
| 17A | | 5304449336replaces 215840700 Refrigerator Screw | - |
| 17AA | – | 215823400 WASHER - FLAT | - |
| 23 | | Refrigerator Drip Tray | - |
| 23A | | Refrigerator Drip Tray | - |
| 24 | | Refrigerator Dispenser Actuator | - |
| 24A | | Refrigerator Actuator | - |
| 26 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 27 |  | Slide Cam | $52.95 ApplianceParts Pro |
| 27A |  | Refrigerator Dispenser Rocker Switch | - |
| 28 | | Refrigerator Module Cover | - |
| 28A | | Refrigerator Module Cover | - |
| 30 | – | 215753600 Door Assy-ic | - |
| 33 | | 218870201replaces 218849801 Heater Dispenser | - |
| 35 |  | 218740003NLA Refrigerator Ice Dispenser Door Heat Motor | Discontinued |
| 36 | | Refrigerator Selector Switch Cover | - |
| 38A |  | Refrigerator Dispenser Switch | - |
| 38B |  | 241689106replaces 218835401 Refrigerator Micro-Switch | $4.62 Part Advantage |
| 39 |  | 5304401778replaces 218284600 Wire-ice Doo | - |
| 40 |  | Refrigerator Dispenser Ice Chute Door Motor Yoke | $13.90 RepairClinic |
| 41 | | 215917800NLA Spring-actua | Discontinued |
| 43 | | Refrigerator Screw | - |
| 49 |  | Heat Bracket | - |
| 51 | | Refrigerator Dispenser Switch Cam | - |
| 56 | | 5300809864replaces 218434300 Micro Screw | - |
| 61 | | Refrigerator Retainer Ring | $14.11 RepairClinic |
| 82 |  | Refrigerator Screw | Discontinued |
