Model
Kenmore 253.58677894
Side-By-Side Refrigerator (Kenmore 25358677894)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58677894Side-By-Side Refrigerator (Kenmore 25358677894)
10 diagrams375 parts
Parts Sections (10)
Diagram

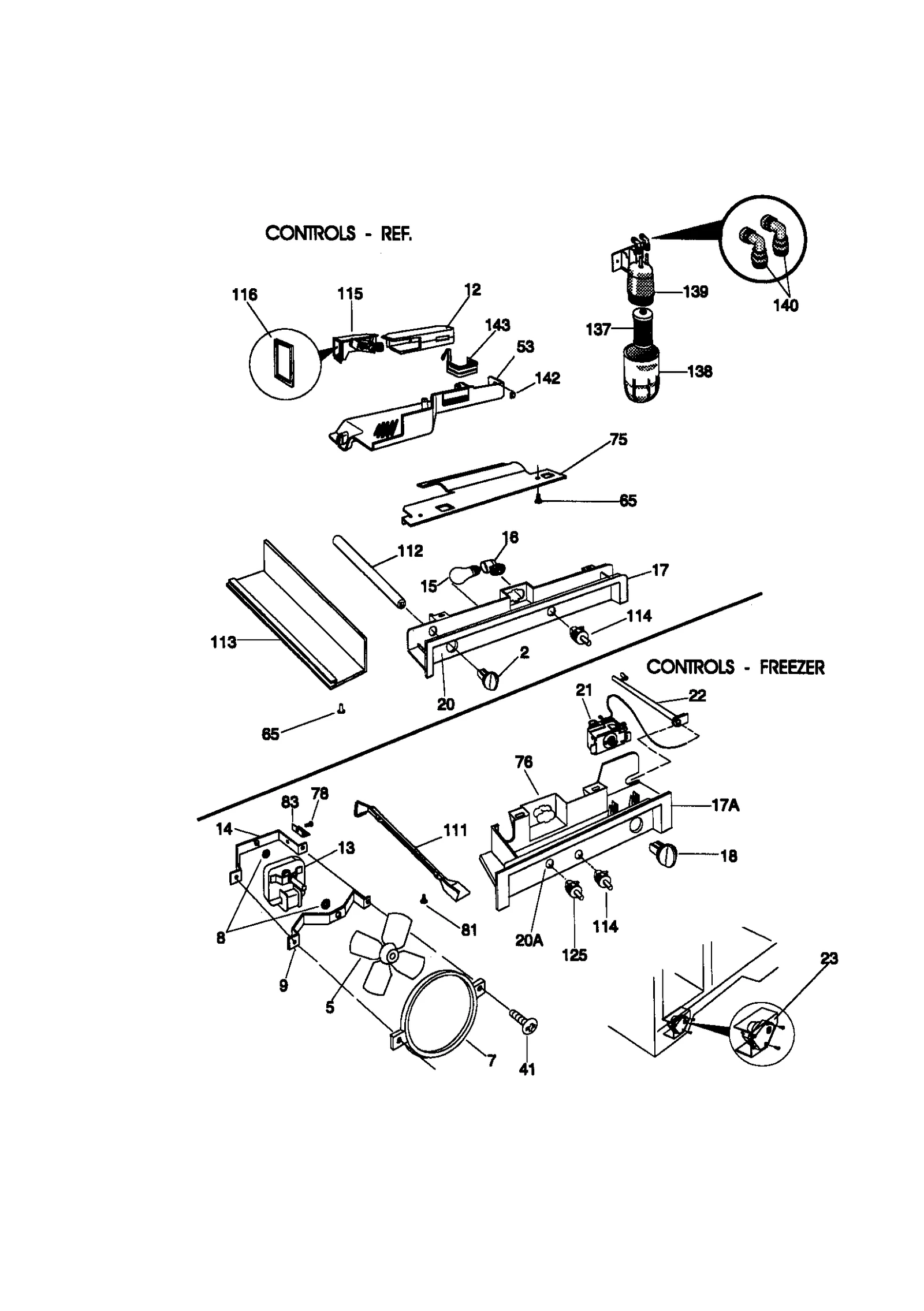

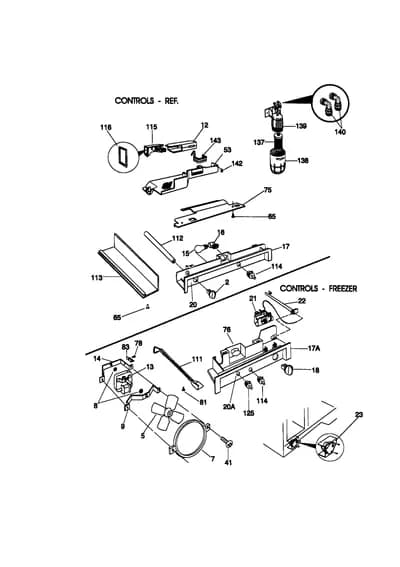

CONTROLS
Parts in CONTROLS
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 5303323264 Refrigerator Knob Damper | - |
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 7 |  | 5308000124NLA Refrigerator Evaporator Fan Ring | Discontinued |
| 8 |  | Refrigerator Bushing | Discontinued |
| 9 | | 5304414684replaces 5303205118 Refrigerator Bracket | - |
| 12 | | Refrigerator Air Diffuser | - |
| 13 | | 215426200NLA Refrigerator Motor | Discontinued |
| 13A |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| 14 | | 5303322992replaces 5303205119 Refrigerator Bracket | - |
| 15 |  | 316538904replaces 5303001179 Appliance Light Bulb, 40-watt | $9.61 Part Advantage |
| 16 |  | 241559801replaces 5303289050 Refrigerator Light Socket | $46.99 Parts Dr |
| 17 | – | 5303289513 Refrigerator Control Box | - |
| 17A | | Refrigerator Freezer Control Box | - |
| 18 | | 5303323263NLA Refrigerator Temperature Complete Knob | Discontinued |
| 20 | – | 5303323266 Refrigerator Label Control | - |
| 20A | – | 5303323269 Refrigerator Label Control | - |
| 21 |  | 5303300027NLA Refrigerator Temperature Control Thermostat | Discontinued |
| 22 |  | Temperature Housing | - |
| 22A | | 218731104replaces 218731102 Refrigerator Tube | - |
| 23 |  | 215846602replaces 5303321133 Timer-def 8h | $15.65 Part Advantage |
| 23A |  | Defrost Cover | $11.83 RepairClinic |
| 23B |  | 5304455649replaces 5303001259 Refrigerator Screw | $12.95 ApplianceParts Pro |
| 23C |  | Defrost Shield | - |
| 41 |  | Refrigerator Evaporator Motor Screw | $9.95 ApplianceParts Pro |
| 53 | | 215809509NLA Box Damper Control | Discontinued |
| 65 | | Refrigerator Push Pin | - |
| 75 | | Refrigerator Light Shield | - |
| 76 | | Refrigerator Light Cover | $7.14 RepairClinic |
| 78 |  | 5304455651replaces 5303274237 Refrigerator Bracket Screw | $7.77 Part Advantage |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 83 | | 5308000107NLA Refrigerator Bracket | Discontinued |
| 111 | – | 5303297842 Wireway | - |
| 112 | | Refrigerator Extension Rod Damper | - |
| 113 | – | 5303296580 Cover-dmpr R | - |
| 114 |  | Refrigerator Door Switch | - |
| 115 | | Refrigerator Air Damper Control Assembly | - |
| 116 | | 215011400NLA Seal Damper | Discontinued |
| 125 | | Refrigerator Auger Kill Switch | - |
| 137 |  | WFCBreplaces 9906 Genuine Kenmore Refrigerator Water Filter | $25.07 Parts Dr |
| 138 | – | 218657404 Refrigerator Filter Cup | - |
| 138A |  | 218720100NLA Refrigerator Water Filter Cup O-Ring | Discontinued |
| 139 |  | Refrigerator Filter Housing | Discontinued |
| 140 |  | 218518700NLA Refrigerator Water Line Elbow Fitting | Discontinued |
| 142 | | 218657701NLA Refrigerator Indicator Knob | Discontinued |
| 143 | | 218696700NLA Refrigerator Water Heater | Discontinued |
