Model
Kenmore 253.58689895
Side-By-Side Refrigerator (Kenmore 25358689895)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.58689895Side-By-Side Refrigerator (Kenmore 25358689895)
10 diagrams366 parts
Parts Sections (10)
Diagram

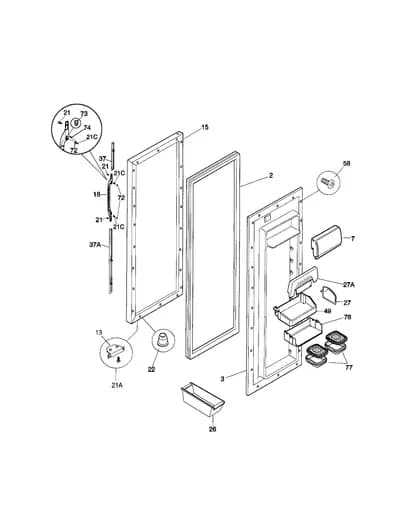

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 215734324NLA Refrigerator Freezer Door Gasket (Black) | Discontinued |
| 3 | | Refrigerator Door Panel | - |
| 7 |  | 5303308608replaces 5303323265 Refrigerator Dairy Door | $135.27 PartSelect |
| 13 | | Refrigerator Door Stop | - |
| 15 | | Ff Door Panl | - |
| 18 | | Refrigerator Door Handle (Gray) | Discontinued |
| 21 |  | 218843801replaces 5303001001 Refrigerator Screw | - |
| 21A |  | Refrigerator Door Stop Screw, #10-16 x 3/4-in | - |
| 21C | – | 218871701 Screw/pan Hd | - |
| 22 |  | 5303289320NLA Refrigerator Door Hinge Bushing | Discontinued |
| 26 |  | Refrigerator Egg Bin | $81.84 PartSelect |
| 27 | | Refrigerator Door Bin Divider | - |
| 27A | | Refrigerator Tall Bottle Retainer | - |
| 37 | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 37A | – | 218779306 Lo Hand Trim | - |
| 49 | | 218592317NLA Refrigerator Door Bin | Discontinued |
| 58 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 72 |  | Refrigerator Door Handle Mounting Grommet | - |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 76 |  | Refrigerator Microwave Dishrack | - |
| 77 | | 218423501NLA Mw Dishes | Discontinued |
