Kenmore 253.59482991
Side-By-Side Refrigerator (Kenmore 25359482991)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.59482991Side-By-Side Refrigerator (Kenmore 25359482991)
10 diagrams388 parts
Parts Sections (10)
Diagram

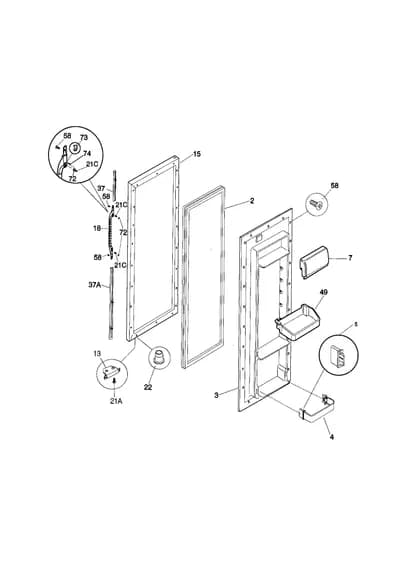

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Refrigerator Door Gasket | - |
| 2A |  | 215734304NLA Refrigerator Gasket | Discontinued |
| 2B | | 215734324NLA Refrigerator Freezer Door Gasket (Black) | Discontinued |
| 3 | | 215390401NLA Refrigerator Inner Panel | Discontinued |
| 4 | | 218807029replaces 218807002 Refrigerator Rack | - |
| 5 |  | Refrigerator Door Shelf Retainer Clip | - |
| 7 | | Refrigerator Dairy Door | - |
| 13 | | Refrigerator Door Stop | - |
| 15 | – | 5303918103 Ff Out Panel | - |
| 15A | – | 5303918104 Dr Pnl Almd | - |
| 15B | – | 5303918105 Blk Dr Panel | - |
| 18 |  | 297272500replaces 218803901 Upright Freezer Door Handle (White) | $45.51 Part Advantage |
| 18A | | 218803902NLA Ald Dr Handl | Discontinued |
| 18B | | Refrigerator Door Handle (Gray) | Discontinued |
| 21A |  | Refrigerator Door Stop Screw, #10-16 x 3/4-in | - |
| 21C |  | 218252201replaces 218252200 Upright Freezer Door Handle Screw | $10.30 Parts Dr |
| 22 |  | 5303289320NLA Refrigerator Door Hinge Bushing | Discontinued |
| 37 | | Refrigerator Door Handle Trim, Upper (White) | - |
| 37A | | Refrigerator Handle Trim | - |
| 37AA | – | 218779305 Refrigerator Trim | - |
| 37AB | – | 218779306 Lo Hand Trim | - |
| 37AC | | 218776501replaces 218776600 Tri Snap | - |
| 37B | | 218779308NLA Up Trim Hand | Discontinued |
| 37C | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 49 | | Refrigerator Door Bin | - |
| 58 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 72 |  | Refrigerator Door Handle Mounting Grommet | - |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
