Kenmore 253.59683992
Side-By-Side Refrigerator (Kenmore 25359683992)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.59683992Side-By-Side Refrigerator (Kenmore 25359683992)
10 diagrams355 parts

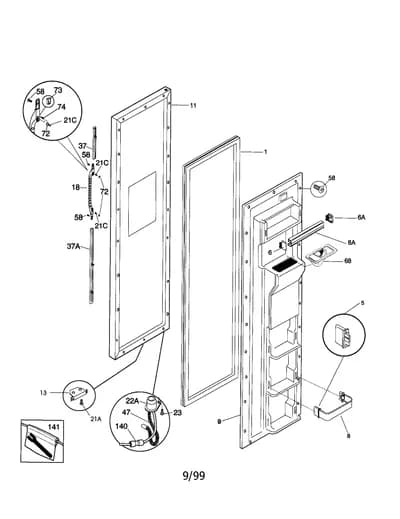

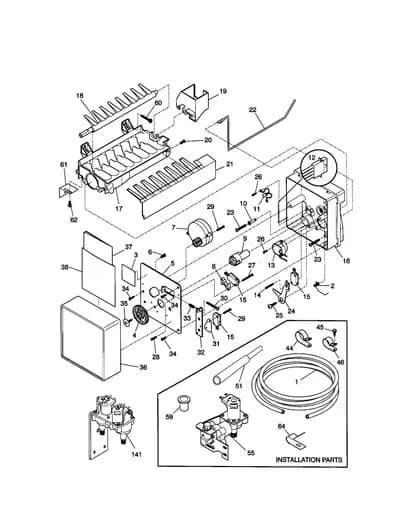

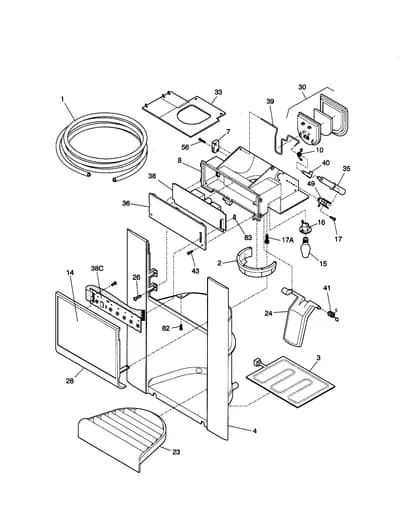

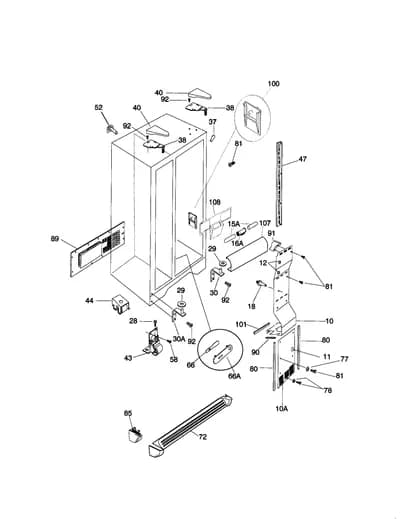

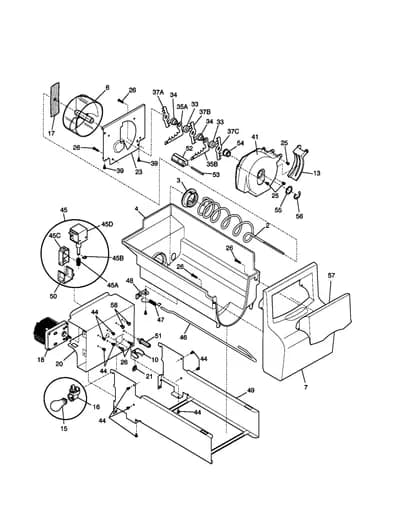

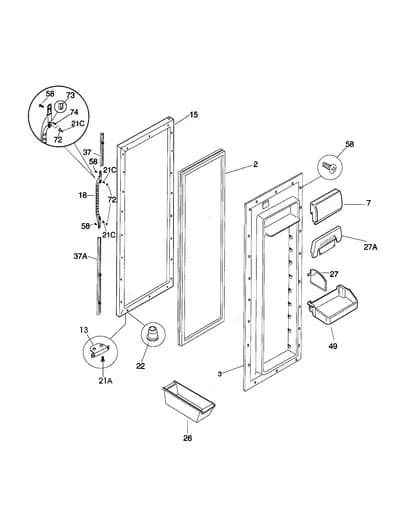

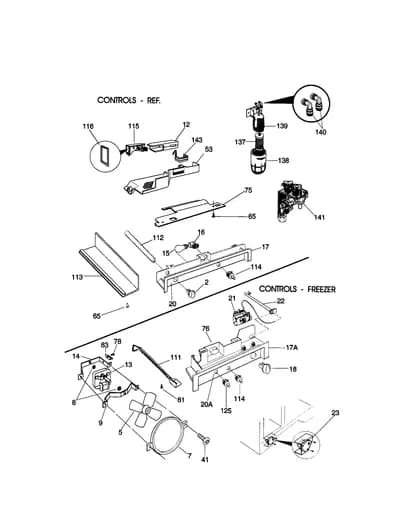

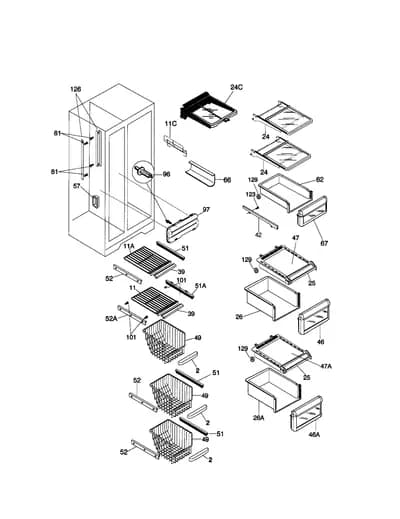

Parts Sections (10)
Diagram

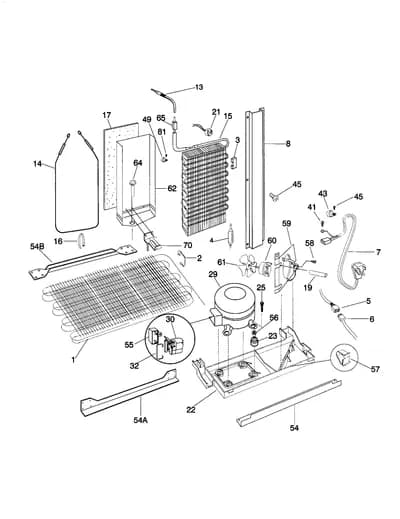

SYSTEM
Parts in SYSTEM
55 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Condenser Coil | - |
| 1A | | Refrigerator Spacer Tube | - |
| 1B | – | 5303289026 Refrigerator Spacer Tube | - |
| 2 | – | 5303289029 Clip-cond Mt | - |
| 3 | – | 218679603 Refrigerator Control Block Evaporator | - |
| 4 |  | 5303305677replaces 218541000 Drier-r12 | $13.17 Parts Dr |
| 5 | | 218959901NLA Refrigerator Wiring Harness | Discontinued |
| 5A | | Refrigerator Wiring Harness | - |
| 5B | – | 218463600 Refrigerator Wiring Harness | - |
| 5C | | 218646000NLA Refrigerator Wiring Harness | Discontinued |
| 5D | – | 218815101 Refrigerator Freezer Harness | - |
| 6 | | Refrigerator Wiring Harness | - |
| 7 |  | Refrigerator Power Cord | - |
| 8 | – | 218803400 Refrigerator Wiring Cover | - |
| 13 | | Refrigerator Heat Exchange | - |
| 14 |  | White-Westinghouse Refrigerator Defrost Heater Assembly | $71.39 Part Advantage |
| 15 | | 218691301NLA Refrigerator Evaporator | Discontinued |
| 15A | | Refrigerator Inlet Tube | - |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 17 | | Refrigerator Insulator Evaporator | - |
| 19 | | Refrigerator Spacer Tube | - |
| 21 |  | 5303917954replaces 5316269001 Refrigerator Thermostat | $16.43 Part Advantage |
| 22 | | Comp Mountng | Discontinued |
| 23 |  | Refrigerator Compressor Grommet | $24.59 Part Advantage |
| 25 | | Bolt Compres | - |
| 29 |  | 5304475102replaces 218894802 Refrigerator Compressor | $280.36 Parts Dr |
| 30 |  | 5304410951replaces 218721106 Refrigerator PTC Starter | $80.53 Part Advantage |
| 32 | | Bale Wire | - |
| 41 |  | Refrigerator Evaporator Motor Screw | $9.95 ApplianceParts Pro |
| 43 |  | 5303001199replaces 215174700 Refrigerator Clamp | - |
| 43A | | Refrigerator Wire Harness Clamp | - |
| 43B | | Refrigerator Water Tubing Clamp | $20.37 PartSelect |
| 45 |  | 5304455651replaces 5303001343 Screw | $7.77 Part Advantage |
| 45A | – | 218754500 Wiring Screw | - |
| 45B |  | 5304455852replaces 5300141713 Refrigerator Screw | $9.63 ApplianceParts Pro |
| 49 | | Refrigerator Bracket Evaporator | - |
| 54 | – | 5303289027 Cabinet Rail | - |
| 54A | – | 5303289311 Rail-compr S | - |
| 54B | – | 5303289292 Cabinet Rail | - |
| 54C | – | 215732700 Refrigerator Screw | - |
| 55 | | 218909902NLA Refrigerator Run Capacitor | Discontinued |
| 55A | – | 518897001 SCREW, HEX WASHER HEAD, 8-32 X 1/4 | - |
| 56 | | Compressor Insert | - |
| 57 | – | 218547300 CLIP-WIRING HARNESS | - |
| 58 |  | 240555002replaces 215004600 Screw-cond F | $7.77 Part Advantage |
| 59 | – | 5303289031 Refrigerator Shroud Condenser | - |
| 60 |  | 215501901NLA Refrigerator Condenser Fan Motor | Discontinued |
| 61 | | 5303289032NLA Blade-cond F | Discontinued |
| 61A | | Refrigerator Nut | - |
| 61B | | Grommet | - |
| 62 | – | 215048701 Refrigerator Drain Trough | - |
| 64 |  | 241957901replaces 5303289063 Refrigerator Drain Tube | $41.01 Parts Dr |
| 65 | | Refrigerator Spacer Tube | $13.72 RepairClinic |
| 70 | – | 5303289041 Refrigerator Bracket Evaporator | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
