Model
Kenmore 253.59689990
Side-By-Side Refrigerator (Kenmore 25359689990)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.59689990Side-By-Side Refrigerator (Kenmore 25359689990)
10 diagrams392 parts

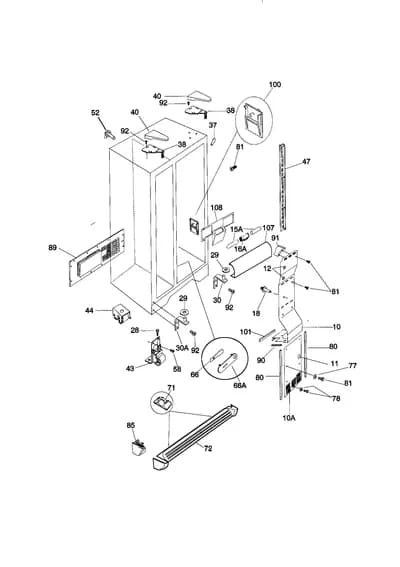

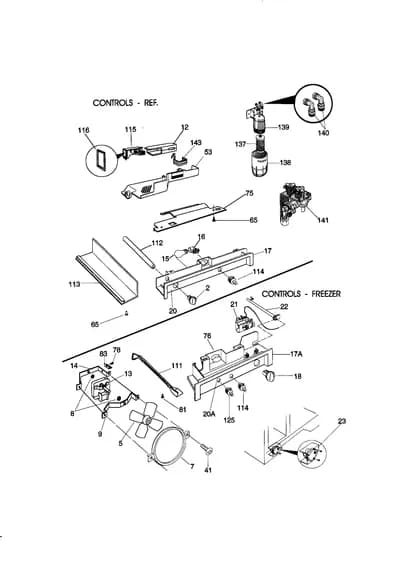

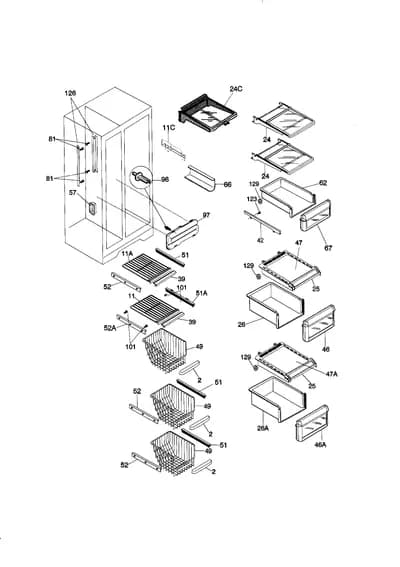

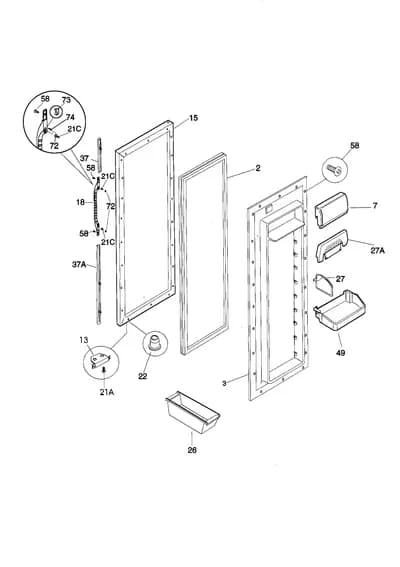

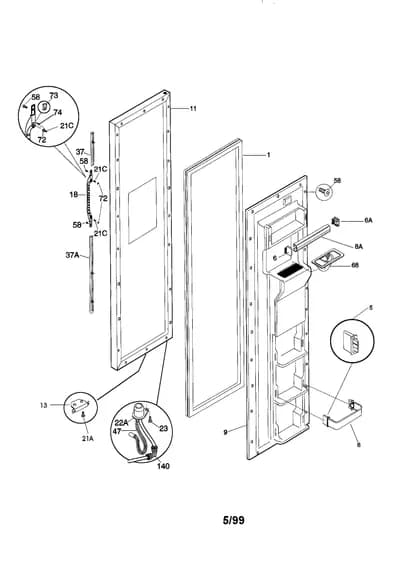

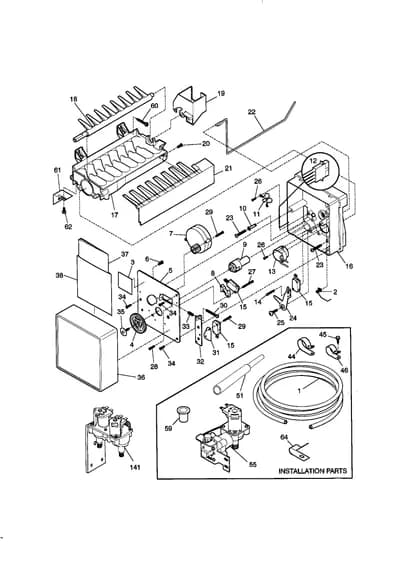

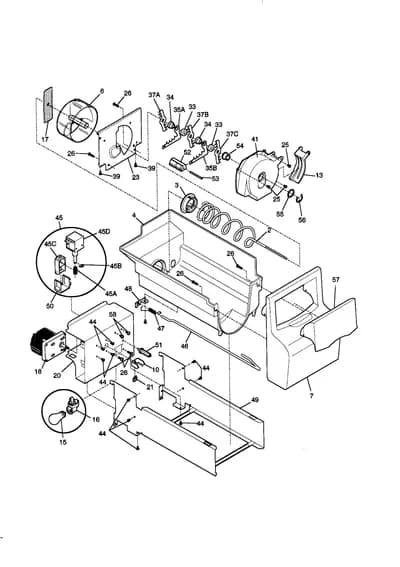

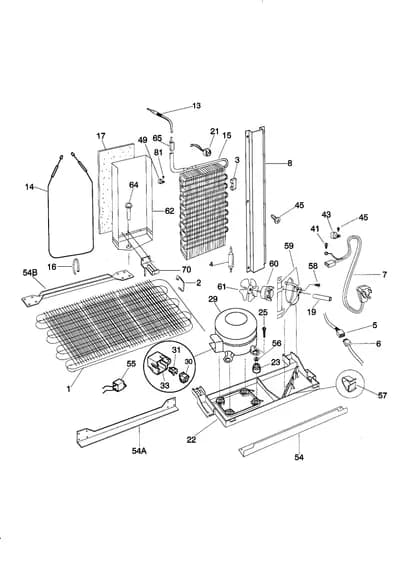

Parts Sections (10)
Diagram

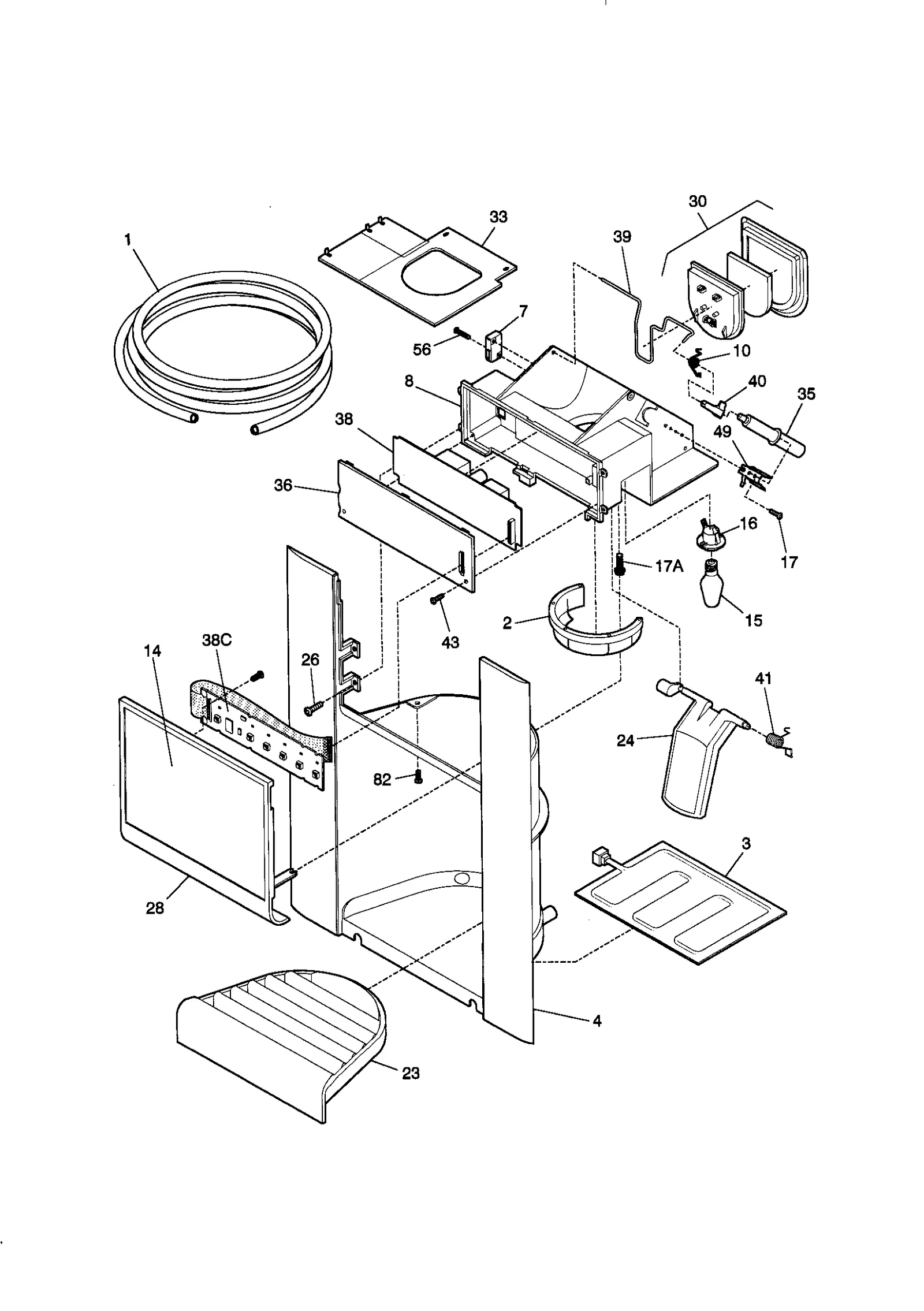

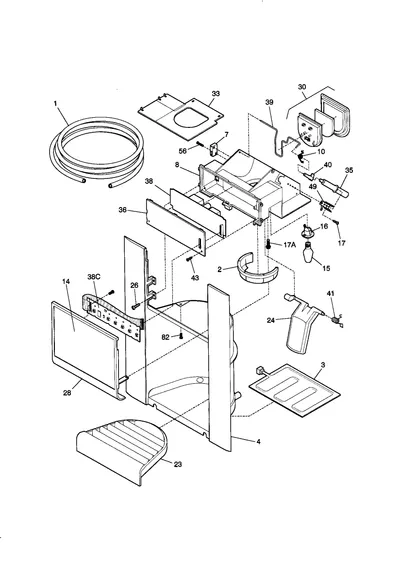

DISPENSER
Parts in DISPENSER
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308010366replaces 5318582501 Water Tube | $9.40 Part Advantage |
| 1A |  | 5304423968replaces 218832301 Water Tube | - |
| 1B | | Refrigerator Water Tubing | - |
| 2 | | 218505301NLA Deflector-ic | Discontinued |
| 2A | | Refrigerator Deflector | - |
| 2B | | Refrigerator Deflector | - |
| 3 | | Refrigerator Door Heater | - |
| 4 | | Refrigerator Dispenser Housing | - |
| 4A | | Housing Dispenser | - |
| 4B | | Housing Dispenser | - |
| 7 |  | 5303917595replaces 218284800 Refrigerator Switch | - |
| 8 | | Refrigerator Dispenser Module | - |
| 10 | | 5304401779replaces 218209800 Refrigerator Dispenser Spring | - |
| 14 |  | 218903704replaces 218903701 Label Wht | - |
| 14A | – | 218903702 Refrigerator Dispenser Control Cover (Almond) | - |
| 14B |  | 218903703NLA Refrigerator Dispenser Control Overlay | Discontinued |
| 15 |  | 5304519036replaces 218284900 Refrigerator Bulb | $40.25 Parts Dr |
| 16 |  | 240548901replaces 215284900 Refrigerator Light Socket | $34.43 Part Advantage |
| 17 | | Dispenser Screw | $6.21 RepairClinic |
| 17A | | 5304449336replaces 215840700 Refrigerator Screw | - |
| 17AA | | Flat Washer | - |
| 23 |  | 5303297844NLA Refrigerator Dispenser Drip Tray | Discontinued |
| 23A |  | 5303297845NLA Refrigerator Dispenser Drip Tray (Almond) | Discontinued |
| 23B |  | 5303299660NLA Refrigerator Dispenser Drip Tray | Discontinued |
| 24 | | Refrigerator Dispenser Lever | - |
| 24A | | 218921302NLA Refrigerator Dispenser Lever Actuator (Almond) | Discontinued |
| 24B | | 218921303NLA Actuator Arm | Discontinued |
| 26 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 28 | | Refrigerator Dispenser Selector Cover (White) | - |
| 28A | | Cover-select | - |
| 28B | | 218891403NLA Refrigerator Switch Cover | Discontinued |
| 30 | – | 215753600 Door Assy-ic | - |
| 33 | | Refrigerator Dispenser Heater | - |
| 35 |  | 218740004NLA Refrigerator Dispenser Ice Chute Door Actuator | Discontinued |
| 36 | | Refrigerator Module Cover | $11.42 RepairClinic |
| 38 | – | 218906601 Refrigerator Control Board | - |
| 38C | | Refrigerator Electronic Control Board | - |
| 39 |  | 5304401778replaces 218284600 Wire-ice Doo | - |
| 40 |  | Refrigerator Dispenser Ice Chute Door Motor Yoke | $13.90 RepairClinic |
| 41 | | 215917800NLA Spring-actua | Discontinued |
| 43 | | Refrigerator Screw | - |
| 49 |  | Heat Bracket | - |
| 56 | | 5300809864replaces 218434300 Micro Screw | - |
| 82 |  | Refrigerator Screw | Discontinued |
