Model
Kenmore 2535462240A
Refrigerator (Kenmore 2535462240A)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
2535462240ARefrigerator (Kenmore 2535462240A)
9 diagrams331 parts
Parts Sections (9)
Diagram

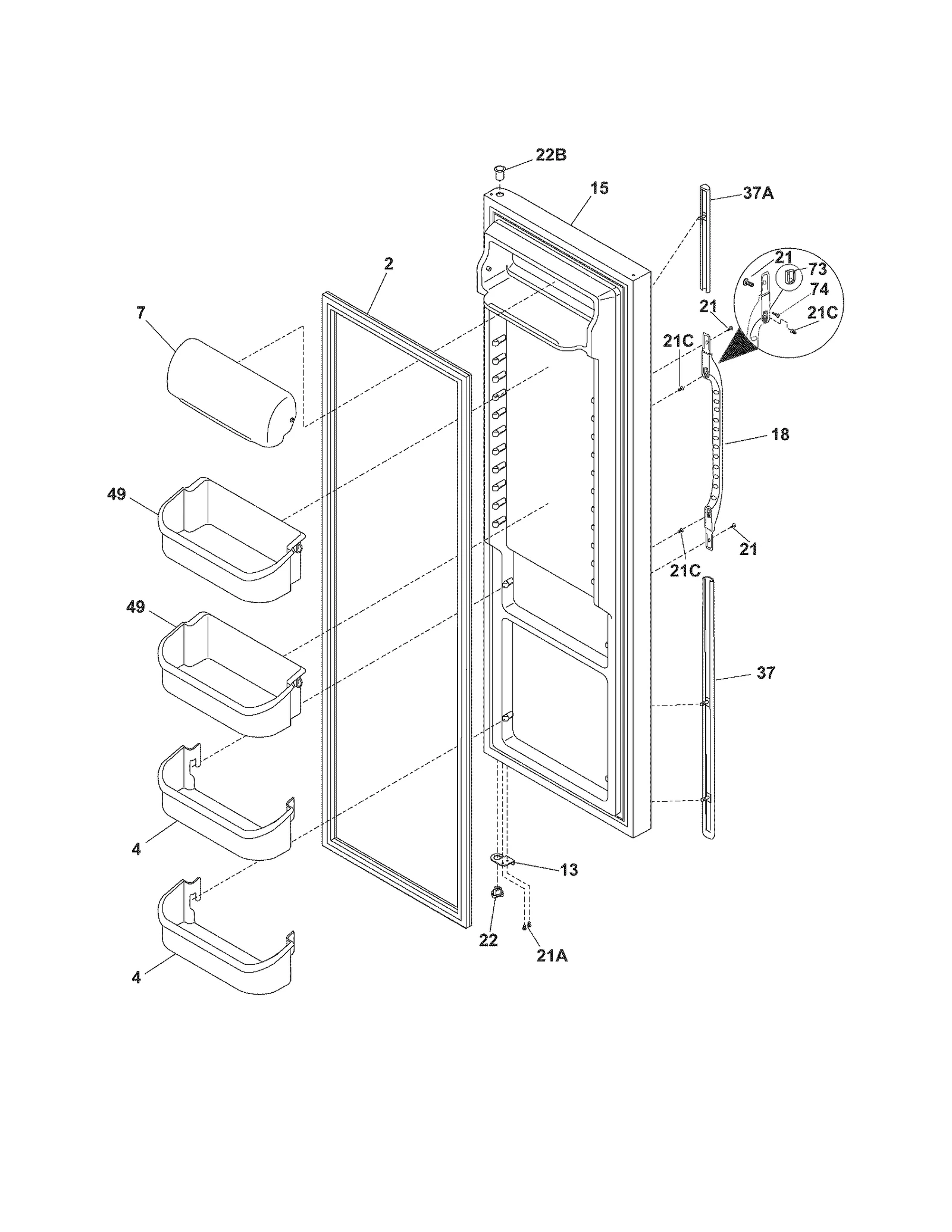

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241786013replaces 241569801 Refrigerator Gasket | $54.70 Parts Dr |
| 2 | | 241786013replaces 241569805 Refrigerator Gasket | $54.70 Parts Dr |
| 4 |  | Kenmore Refrigerator Door Bin | $17.34 Part Advantage |
| 7 |  | Refrigerator Dairy Door | Discontinued |
| 13 |  | Refrigerator Door Stop | $30.01 Parts Dr |
| 13 | | 240581903NLA Refrigerator Door Stop (White) | Discontinued |
| 13 |  | Refrigerator Door Stop (Black) | $34.87 Part Advantage |
| 15 | | 240451903NLA Refrigerator Door Assembly (White) | Discontinued |
| 15 | – | 240451907 Refrigerator Door | - |
| 15 | – | 240451928 Refrigerator Door Assembly | - |
| 15 | | 241534526NLA Refrigerator Door Assembly | Discontinued |
| 18 |  | 297272500replaces 218803901 Upright Freezer Door Handle (White) | $45.51 Part Advantage |
| 18 | | Refrigerator Door Handle (Gray) | Discontinued |
| 18 | – | 218803904 Handle Ff &f | - |
| 21 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 21A |  | 5303323137replaces 240598401 Refrigerator Freezer Door Handle Screw | $8.39 ApplianceParts Pro |
| 21C | | 240521302NLA Refrigerator Freezer Door Handle Screw | Discontinued |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B |  | Refrigerator Door Hinge Bushing | $15.28 ApplianceParts Pro |
| 22B |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 37 |  | Freezer Door Handle Trim, Lower | - |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37 | | Refrigerator Freezer Door Handle Trim, Lower (Bisque) | - |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | Refrigerator Door Handle Trim, Upper (White) | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 37A | | Refrigerator Handle Trim | - |
| 49 |  | 240356401replaces 240356405 Refrigerator Door Bin | $47.14 Part Advantage |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
