Model
Kenmore 2535568940B
Refrigerator (Kenmore 2535568940B)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
2535568940BRefrigerator (Kenmore 2535568940B)
9 diagrams351 parts
Parts Sections (9)
Diagram

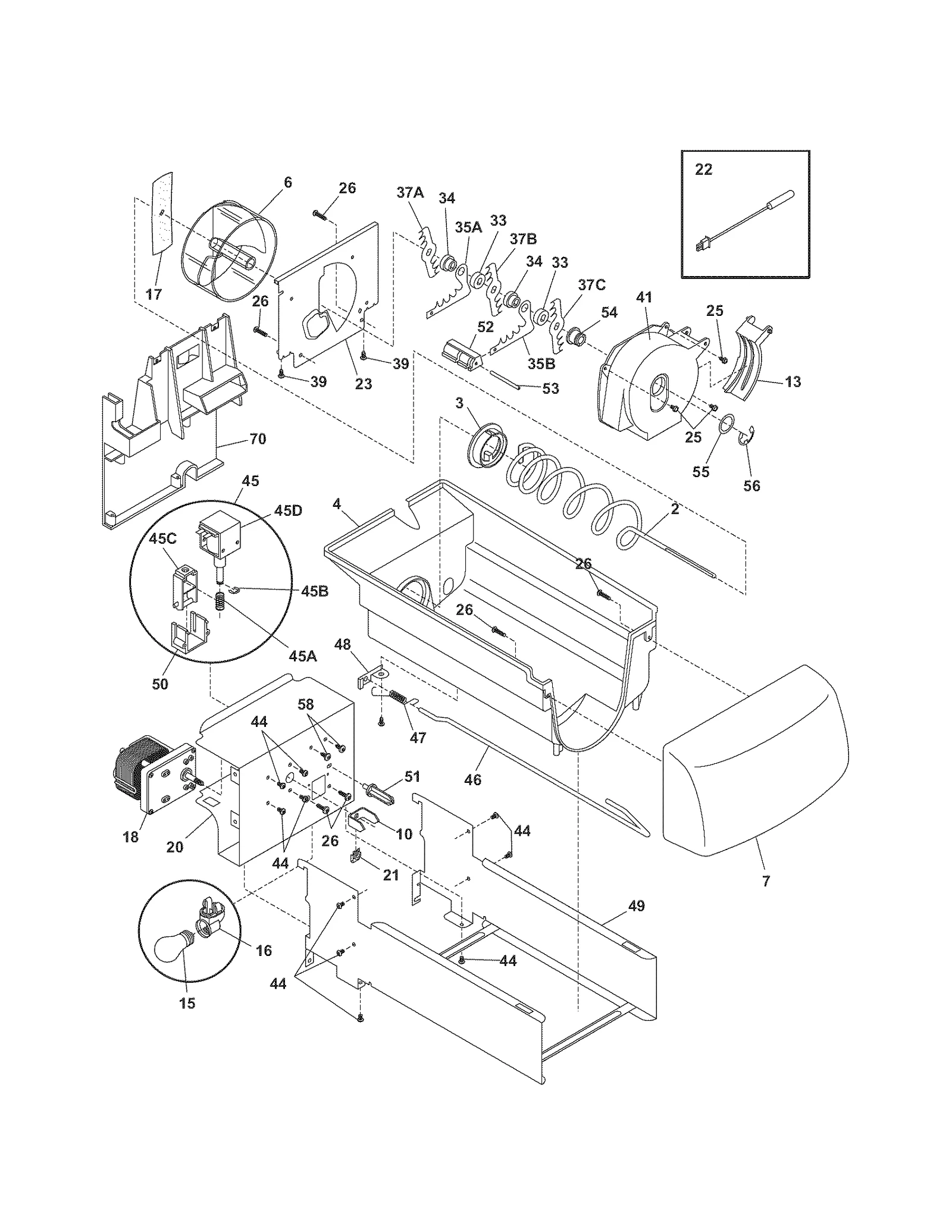

ICE CONTAINER
Parts in ICE CONTAINER
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241716101replaces 5304428402 Refrigerator Ice Auger | $75.17 Parts Dr |
| 3 |  | 241685201replaces 5304404343 Refrigerator Drive Cam | $28.59 Parts Dr |
| 4 |  | 241561302replaces 241561301 Refrigerator Ice Container | $74.74 ApplianceParts Pro |
| 6 |  | 241685101replaces 5304404346 Refrigerator Dispenser Drum | $29.93 Part Advantage |
| 7 |  | 241561402replaces 241561401 Refrigerator Ice Container Front Cover | $59.32 ApplianceParts Pro |
| 10 |  | 241726501replaces 241624801 Refrigerator Bar | $34.02 Part Advantage |
| 13 |  | 241885001replaces 5304404359 Refrigerator Gate | $43.89 Part Advantage |
| 15 |  | 316538904replaces 241555401 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | Refrigerator Light Socket | $46.99 Parts Dr |
| 17 |  | 241684503replaces 5304404345 Refrigerator Blade Drive | $9.40 Part Advantage |
| 18 |  | 5304462594replaces 5304440392 Refrigerator Auger Motor | $185.07 Parts Dr |
| 20 |  | 241675502replaces 5304404332 Refrigerator Motor Cover | - |
| 21 | | 241726501replaces 215285100 Drive Nut | $34.02 Part Advantage |
| 22 |  | 240597220replaces 240597201 Refrigerator Sensor | $2.76 Part Advantage |
| 23 |  | 241684001replaces 5304404347 Refrigerator Plate | $86.78 Parts Dr |
| 25 |  | 240555002replaces 5304404362 Screw | $7.77 Part Advantage |
| 26 |  | Screw-ther | - |
| 33 |  | 241684802replaces 5304404351 Refrigerator Spacer | $4.89 Part Advantage |
| 34 |  | 241689802replaces 5304404349 Refrigerator Spacer | $4.50 Part Advantage |
| 35A |  | 241684303replaces 5304404353 Round Blade | $9.40 Part Advantage |
| 35B |  | 241684203replaces 5304404352 Fixed Blade | - |
| 37A |  | 241684107replaces 5304404348 Refrigerator Ice Crusher First Blade | $15.50 RepairClinic |
| 37B |  | 241684108replaces 5304404350 Crusher Blade | $14.54 Parts Dr |
| 37C |  | 241684109replaces 5304404356 Crusher Blade | $29.95 ApplianceParts Pro |
| 39 |  | 241690501replaces 5304404365 Refrigerator Screw | $12.95 ApplianceParts Pro |
| 41 | | 241885001replaces 5304404358 Refrigerator Ice Crusher Housing | $43.89 Part Advantage |
| 44 |  | 218359202replaces 218359200 Refrigerator Screw | $8.52 Parts Dr |
| 45 |  | 241675704replaces 5304404333 Refrigerator Solenoid | $33.40 Part Advantage |
| 45A |  | 241675902replaces 5304406816 Solenoid Spring | - |
| 45B |  | 241676001replaces 5304406817 Refrigerator E-Ring | - |
| 45C |  | 241676101replaces 5304406818 Actuator-sol | $37.31 Part Advantage |
| 45D | | 241675704replaces 5304406819 Refrigerator Solenoid | $33.40 Part Advantage |
| 46 | | 5304404341NLA Refrigerator Control Rod | Discontinued |
| 47 | | Refrigerator Rod Spring | Discontinued |
| 48 |  | 241684602replaces 5304404340 Refrigerator Ice Maker Control Rod Bracket | $78.90 PartSelect |
| 49 |  | 241734501replaces 5304404329 Refrigerator Rail Assembly | $111.24 Parts Dr |
| 50 |  | 241675601replaces 5304404334 Refrigerator Solenoid Guide | $59.32 ApplianceParts Pro |
| 51 | | Rotation Stop | Discontinued |
| 52 |  | 241684901replaces 5304404354 Fixed Blades | $23.58 RepairClinic |
| 53 |  | 241690402replaces 5304404355 Refrigerator Pin | - |
| 54 |  | 241685001replaces 5304404357 Auger Nut | $11.47 Part Advantage |
| 55 |  | 241690306replaces 5304404360 Washer | $28.71 Part Advantage |
| 56 |  | 241690201replaces 5304404361 Refrigerator E-Ring | $13.56 Parts Dr |
| 58 | | Solenoid Screw | - |
| 70 | | 242195602replaces 241561502 Refrigerator Mounting Plate | - |
| NI |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| NI | | 241551602replaces 241551601 Refrigerator Screw | - |
| NI |  | 241860804replaces 241561601 Refrigerator Ice Container | $156.25 Parts Dr |
| NI | | 241578401NLA Refrigerator Wire Harness | Discontinued |
| NI | – | 5304404364 Refrigerator Bracket Screw | - |
