Model
Tappan 47-2707-23-01
Dryer, Electric
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
47-2707-23-01Dryer, Electric
4 diagrams122 parts
Parts Sections (4)
Diagram

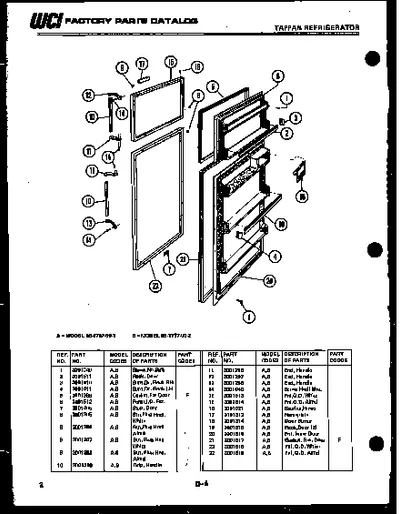

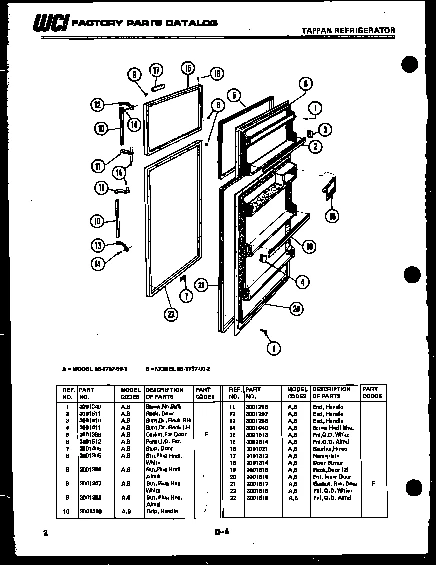

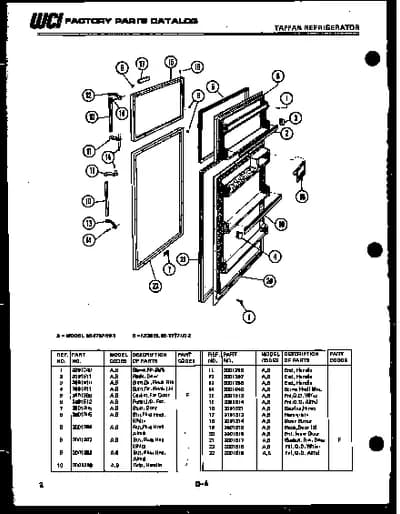

CABINET AND COMPONENT PARTS
Parts in CABINET AND COMPONENT PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 131825900replaces 3281008 BEARING (PARTS CONTAINED IN REAR BEARING KIT.) | $2.55 Part Advantage |
| 1A |  | 5303281153replaces 3281153 REAR BEARING KIT (INCLUDES BEARING, SCREWS, BRACKETS, SHAFT, SPEEDNUT STRIP, BALL) (NON-ILLUSTRATED) | $12.40 Part Advantage |
| 2 |  | 131724301replaces 3281023 BRACKET BEARING SUPPORT (PARTS CONTAINED IN REAR BEARING | $7.36 Part Advantage |
| 3 |  | 5303010202replaces 3281024 SCREW (2) | - |
| 4 |  | 134101400replaces 3281025 TERMINAL BLOCK | $37.94 Parts Dr |
| 6 | | 5303010202replaces 3281026 SCR-COUPLING (2) | - |
| 8 |  | 5303931781replaces 3281009 SHAFT (PARTS CONTAINED IN REAR BEARING KIT.) | $81.44 Part Advantage |
| 9 | | SCREW (3) (PARTS CONTAINED IN REAR BEARING KIT.) | Discontinued |
| 10 | | 5303207393replaces 3281029 SCREW, BAFFLE | - |
| 11 |  | 3204254replaces 3281030 BAFFLE | $74.95 Parts Dr |
| 12 | – | 3281031 BASKET, SPINNER | - |
| 13 | | 5300615892replaces 3281010 VANE-FRONT (2) | - |
| 13A | – | 3281011 VANE-REAR (1) (NON-ILLUSTRATED) | - |
| 13B | – | 3281028 SCREW (9) (NON-ILLUSTRATED) | - |
| 14 |  | 5303281154replaces 3281154 BELT (1) | $7.25 Part Advantage |
| 15 | – | 3281032 FOOT BOLT (4) | - |
| 16 | | GROMMET (4) | - |
| 17 |  | 131205400replaces 3281033 SCREW (2) (PARTS CONTAINED IN REAR BEARING KIT.) | $9.83 ApplianceParts Pro |
| 19 | – | 3281034 THERMOSTAT | - |
| 20 | – | 3281035 SCREW (2) (INCLUDED IN REAR BEARING KIT.) | - |
| 21 |  | 134417000replaces 3281013 SEAL (INCLUDED IN NO. 10 GLIDE KIT) | $11.01 Parts Dr |
| 22 | – | 3281036 SCREW (4) | - |
| 23 | – | 3281014 FAN HOUSING ASSEMBLY | - |
| 24 | – | 3281015 GASKET (1) | - |
| 25 | – | 3281037 DUCT, THERMO | - |
| 26 | – | 3281038 DUCT, EXHAUST | - |
| 27 | – | 3281016 BODY - ALMOND | - |
| 28 | | 5303010202replaces 3281026 SCR-COUPLING (2) | - |
| 29 | – | 3281035 SCREW (2) (INCLUDED IN REAR BEARING KIT.) | - |
| 30 | | SPEEDNUT (2) | - |
| 31 | – | 3281018 COVER PLATE (1) | - |
| 32 | – | 3281035 SCREW (2) (INCLUDED IN REAR BEARING KIT.) | - |
| 33 | | 5303281153replaces 3281020 NUT FLAT (PARTS CONTAINED IN REAR BEARING KIT.) | $12.40 Part Advantage |
| 34 | | 5303281153replaces 3281019 BALL (PARTS CONTAINED IN REAR BEARING KIT.) | $12.40 Part Advantage |
| 35 | – | 3281040 BRACKET-CORD | - |
| 36 | – | 3281041 SCREW (2) (NON-ILLUSTRATED) | - |
| 37 | – | 3281042 TERMINAL BLOCK COVER (1) | - |
| 38 | – | 3281043 SCREW (2) | - |
| 39 | – | 3281021 SHIELD-TIMER (NON-ILLUSTRATED) | - |
| *49195 | – | 3281022 RATCHET FASTENER-SHIELD (NON-ILLUSTRATED) | - |
