Model
Tappan 61-1082-10-00
Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
61-1082-10-00Dishwasher
7 diagrams164 parts
Parts Sections (7)
Diagram

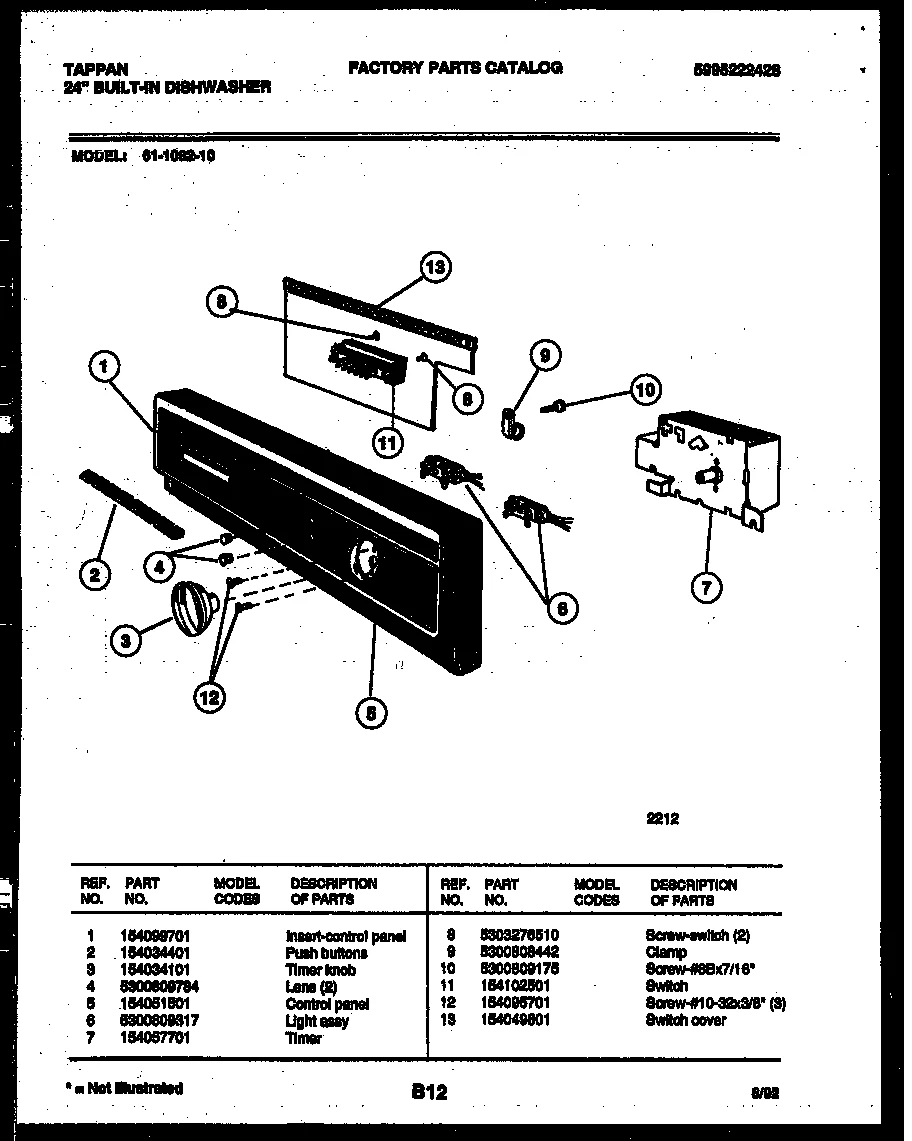

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 154099701 INSERT-CONTROL PANEL | - |
| 2 |  | PUSH BUTTONS-BLACK (8) | - |
| 3 | | 154034101NLA TIMER KNOB-BLACK | Discontinued |
| 4 | | LENS-LIGHT, AMBER | - |
| 5 | – | 154051501 CONTROL PANEL-BLACK | - |
| 6 | | LIGHT ASSEMBLY-PILOT | - |
| 7 | – | 154057701 TIMER | - |
| 8 | – | 5303276510 SCREW-SWITCH MOUNTING (2) (NON-ILLUSTRATED) | - |
| 9 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 10 | | SCREW 8B X 7/16`` | - |
| 11 | | SWITCH | - |
| 12 | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| 13 | – | 154049601 COVER-SWITCH | - |
