Model
Tappan 61-1140-00
Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
61-1140-00Dishwasher
7 diagrams161 parts
Parts Sections (7)
Diagram

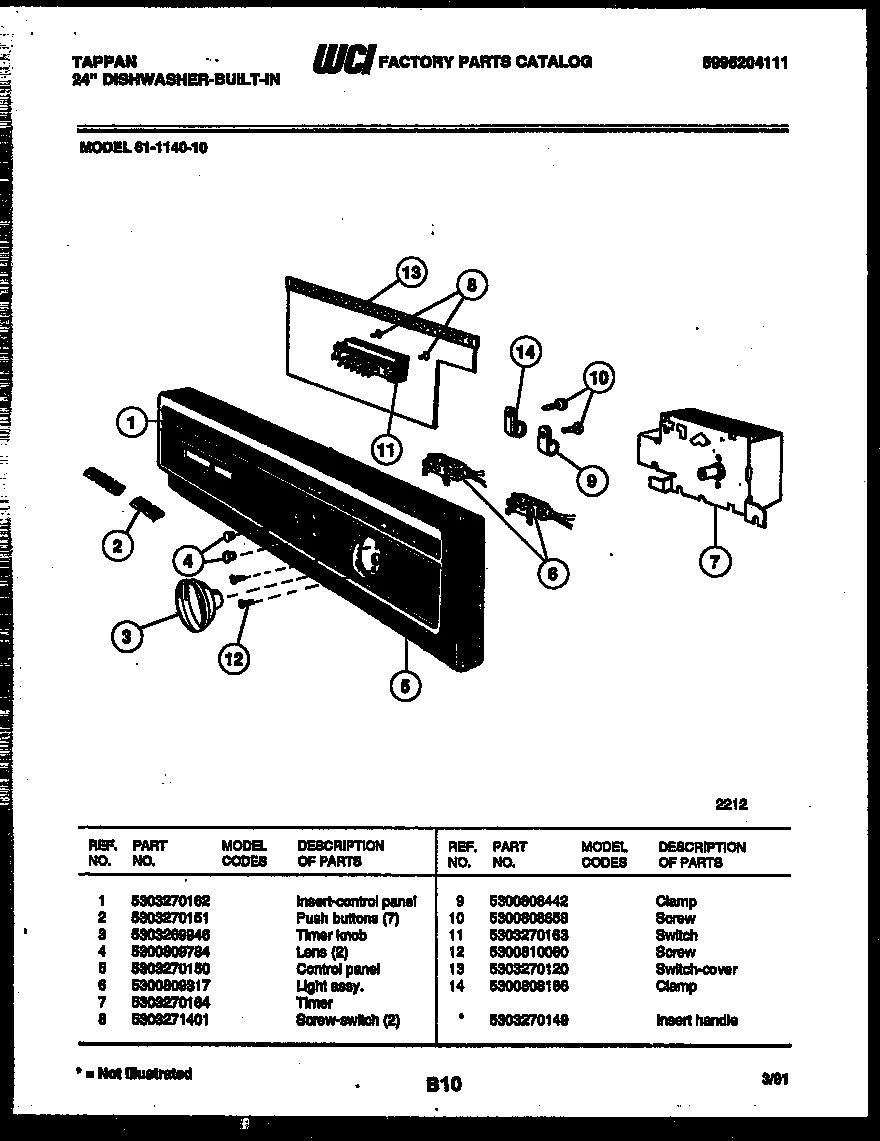

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303270162 INSERT-CONTROL PANEL | - |
| 2 |  | 154034401replaces 5303270151 PUSH BUTTONS (7) | - |
| 3 | – | 5303269946 TIMER KNOB | - |
| 4 | | LENS-LIGHT, AMBER | - |
| 5 | – | 5303270150 CONTROL PANEL | - |
| 6 | | LIGHT ASSEMBLY-PILOT | - |
| 7 | – | 5303270164 TIMER | - |
| 8 | | 154095701replaces 5303271401 SCREW-TIMER GROUND (NON-ILLUSTRATED) | - |
| 9 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 10 |  | 154419403replaces 5300808658 SCREW NO. 8 X 3/8`` LG. C.R. HEX WASHER HD., BLACK | $9.69 ApplianceParts Pro |
| 11 | – | 5303270163 SWITCH | - |
| 12 | – | 5300810060 SCREW-TIMER MOUNTING (NON-ILLUSTRATED) | - |
| 13 | – | 5303270120 SWITCH-COVER | - |
| 14 | | 5364154013replaces 5300808186 HOSE CLAMP (NON-ILLUSTRATED) | - |
| *41950 | – | 5303270149 INSERT-HANDLE (NON-ILLUSTRATED) | - |
