Model
Tappan 76-4967-66-13
Range/Micro Combo, Over/Under, Gas, Freestanding
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
76-4967-66-13Range/Micro Combo, Over/Under, Gas, Freestanding
10 diagrams298 parts
Parts Sections (10)
Diagram

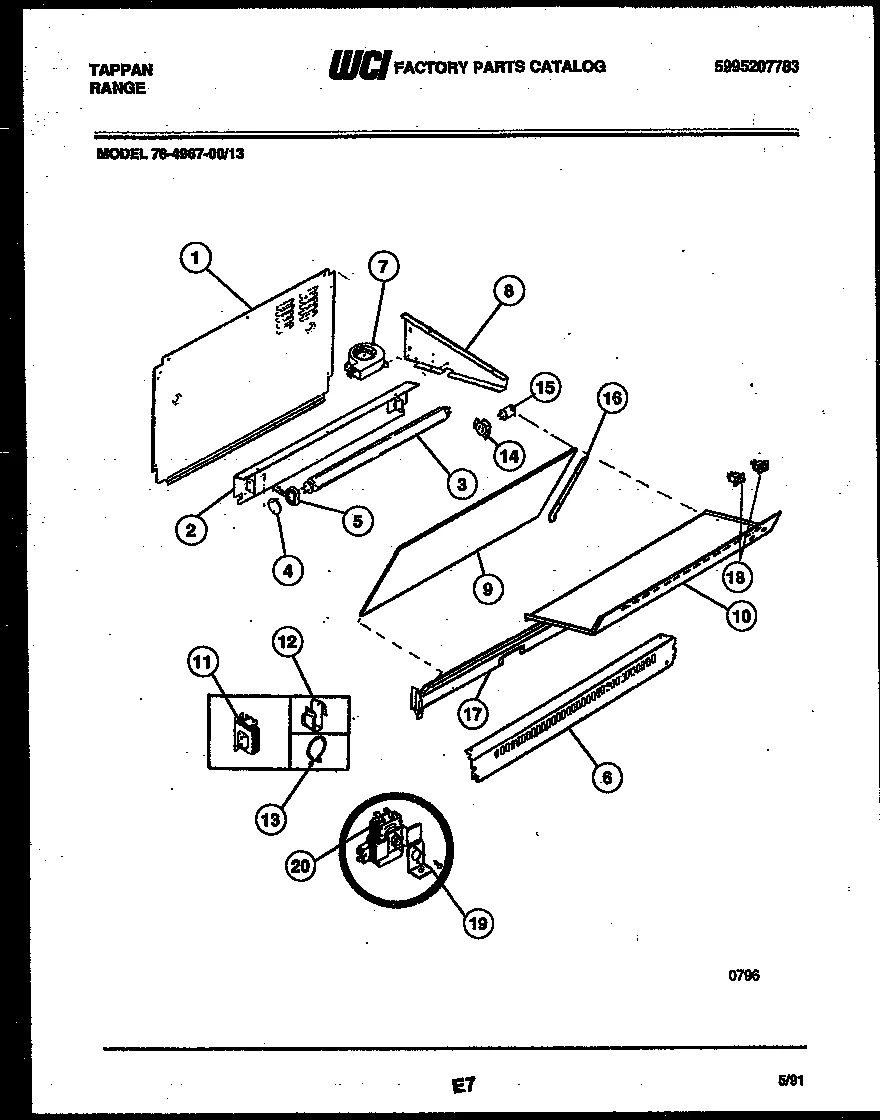

SPLASHER CONTROL
Parts in SPLASHER CONTROL
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 08067729 BACK, O/U MID WALL | - |
| 2 | – | 5303208612 REFLECTOR, WORK LIGHT | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | – | 3014927 INSUL FLUOR LITE RECEPT (2) | - |
| 5 | – | 597T047S01 RECEPTACLE-FLUOR LIGHT (2) | - |
| 6 | – | 5303269816 TRIM-VENT | - |
| 7 | | BLOWER-MOTOR ASSEMBLY | - |
| 8 | – | 08067830 GUSSET-MVW SUPPT. (LH) | - |
| 8A | – | 08067737 GUSSET-MVW SUPPT. (RH) | - |
| 9 | | 3200496NLA GLASS-SPLASHER-O/U | Discontinued |
| 10 | – | 5303209065 PNL - SPLASHER (UPPER) | - |
| 11 |  | 316099800replaces 5303051115 BALLAST-FLUOR LT | - |
| 12 | | 5303311565replaces 08067733 FASNTR-CABLE CLAMP (NON-ILLUSTRATED) | - |
| 13 | – | 5308008992 FSTNR-PURSE LOCK (1) | - |
| 14 | | 5303282715replaces 3204842 RECEPTACLE, STARTER | - |
| 15 | | 3206218NLA STARTER-FLUOR LIGHT BLACK | Discontinued |
| 16 | – | 5303269815 TRIM-SPLASHER, LH (NOT ILLUSTRATED) | - |
| 16A | – | 08010549 TRIM-O/U SPLASHER GLASS FILLER | - |
| 17 | | 318002800replaces 5303209039 TRIM-O/U SPLASHER GLASS FILLER | - |
| 18 |  | 5308015487replaces 5303208662 SWITCH-FLUO LIGHT-OVEN LIGHT (2) | $42.52 ApplianceParts Pro |
| 19 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 20 | | 08067928NLA SUPPORT, FRONT RH (4) | Discontinued |
| *50830 | – | 08067732 COVER OUTLET O/U HOOD | - |
