Model
Tappan 76-8967-66-02
Range/Micro Combo, Over/Under, Gas, Freestanding
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
76-8967-66-02Range/Micro Combo, Over/Under, Gas, Freestanding
10 diagrams289 parts
Parts Sections (10)
Diagram

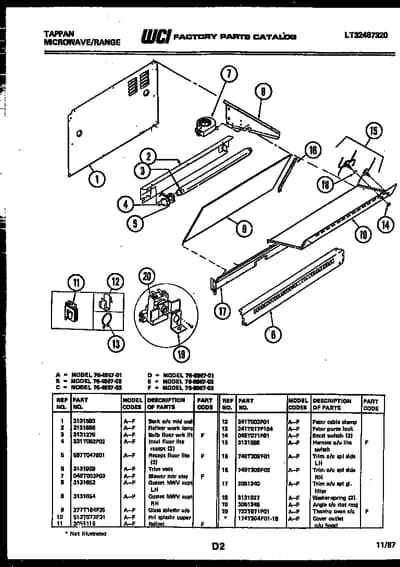

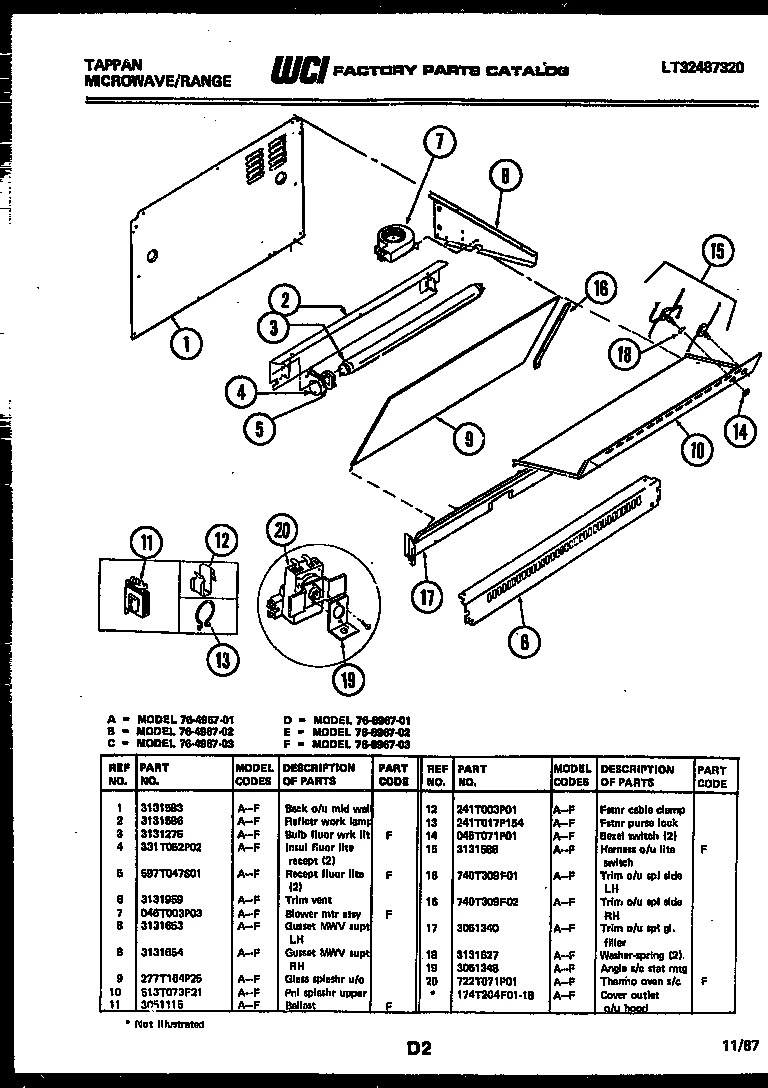

SPLASHER CONTROL
Parts in SPLASHER CONTROL
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3131583 BACK O/U MID WALL | - |
| 2 | – | 3131586 REFLECTOR, WORK LAMP | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | – | 331T052P02 INSULATOR, FLUORESCENT LITE RECEPTACLE (2) | - |
| 5 | – | 597T047S01 RECEPTACLE-FLUOR LIGHT (2) | - |
| 6 | – | 3131959 TRIM VENT | - |
| 7 | | 08010396replaces 046T003P03 BLOWER MOTOR ASSEMBLY | - |
| 8 | – | 3131653 GUSSET-MICRO SUPPORT LH | - |
| 8 | – | 3131654 GUSSET-MICRO SUPPORT RH | - |
| 9 | – | 277T164P25 GLASS, SPLASHER UPPER | - |
| 10 | – | 513T073F21 PNL - SPLASHER (UPPER) | - |
| 11 |  | 316099800replaces 3051115 BALLAST | - |
| 12 | | 5303311565replaces 241T003P01 FASTNR-CABLE CLMP LOT 1-6 | - |
| 13 | – | 241T017P154 FASTENER PURSELOCK 3/8`` D | - |
| 14 | | 5303011507replaces 045T071P01 BEZEL, SWITCH | - |
| 15 | | HARNESS, UPPER OVEN, LITE SWITCH | - |
| 16 | – | 740T309F01 TRIM, UPPER OVEN, SPLASH, LEFT HAND | - |
| 16 | – | 740T309F02 TRIM, UPPER OVEN, SPLASH, RIGHT HAND | - |
| 17 | | 318002800replaces 3051340 TRIM-O/U SPLASHER GLASS FILLER | - |
| 18 | – | 3131627 WASHER - SPRING (LIGHT SWITCH) | - |
| 19 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 20 | – | 722T071P01 THERMOSTAT, OVEN, SELF-CONTAINED | - |
| *83634 | – | 174T204F01-18 COVER OUTLET O/U HOOD | - |
