Model
Tappan 77-4950-00-02
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
77-4950-00-02Range/Micro Combo, Over/Under, Electric, Freestanding
11 diagrams251 parts
Parts Sections (11)
Diagram

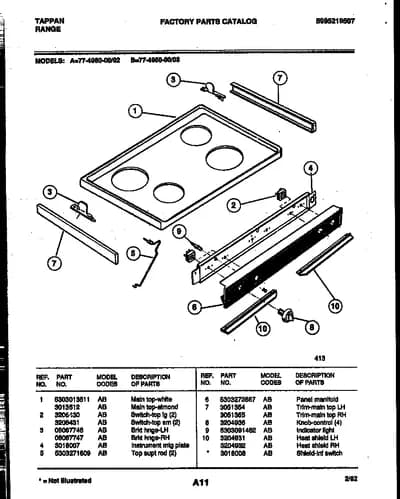

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303013511NLA MAIN TOP (WHITE) | Discontinued |
| 2 |  | 5303935086replaces 3206430 SWITCH-TOP ELEMENT 2100W (2) | $25.83 Part Advantage |
| 2A | | 5303935086replaces 3206431 SWITCH-TOP ELEMENT 1250W (2) | $25.83 Part Advantage |
| 3 |  | BRACKET-MAIN TOP HINGE (LEFT HAND) | - |
| 3A |  | BRACKET-MAIN TOP HINGE (RIGHT HAND) | - |
| 4 | – | 3018007 PLATE-INSTRUMENT MTG | - |
| 5 | | ROD MAIN TOP SUPPORT (2) | Discontinued |
| 6 | – | 5303272667 PANEL MANIFOLD | - |
| 7 | | TRIM, MAIN TOP, LH | - |
| 7A | | BRACKET - MAIN TOP RH | - |
| 8 | – | 3204936 KNOB-CONTROL (4) | - |
| 9 | | LIGHT/LAMP, INDICATOR, CLEAR, 250 V, (2) (NOT ILLUSTRATED) | - |
| 10 | – | 3204931 HEAT SHIELD LH | - |
| 10A | – | 3204932 HEAT SHIELD RH | - |
| *65839 | | 5304492249replaces 3018008 SHIELD-INF SW S/U (2) (NON-ILLUSTRATED) | - |
