Model
Tappan 77-4987-00-06
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
77-4987-00-06Range/Micro Combo, Over/Under, Electric, Freestanding
9 diagrams272 parts

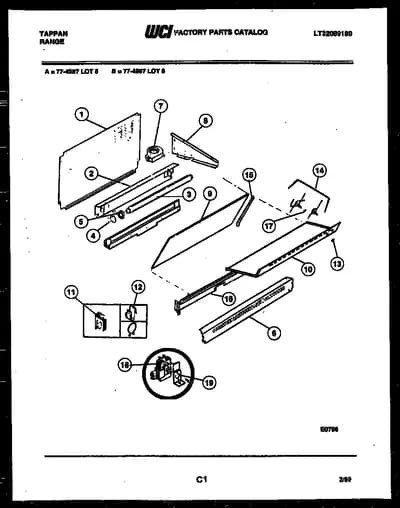

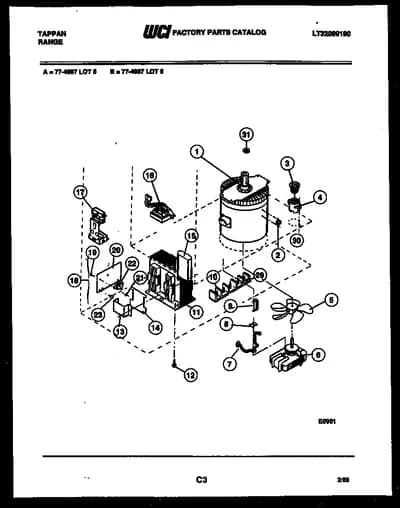

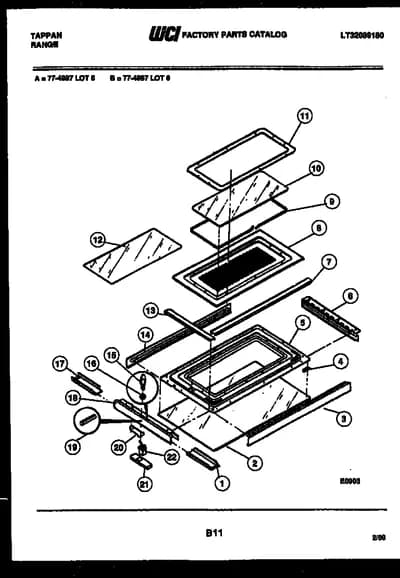

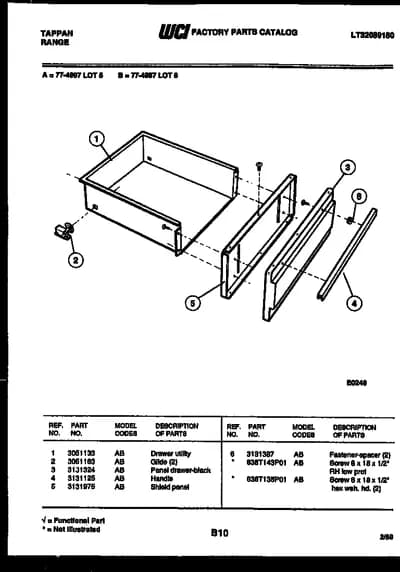

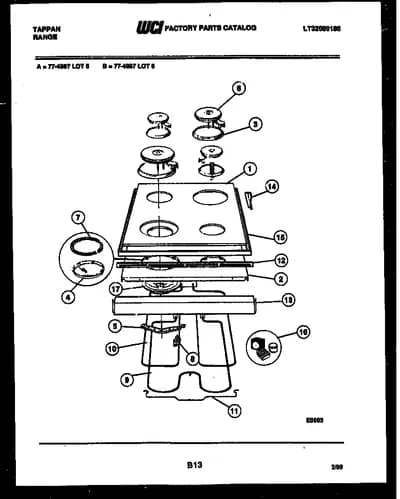

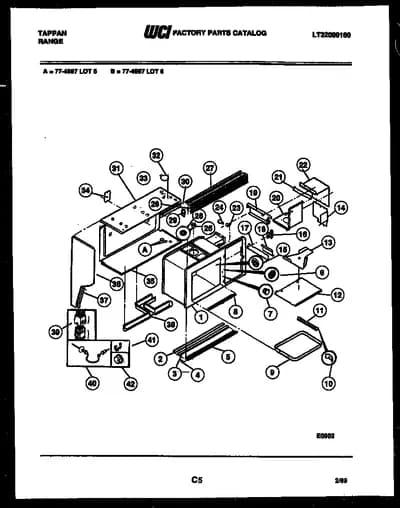

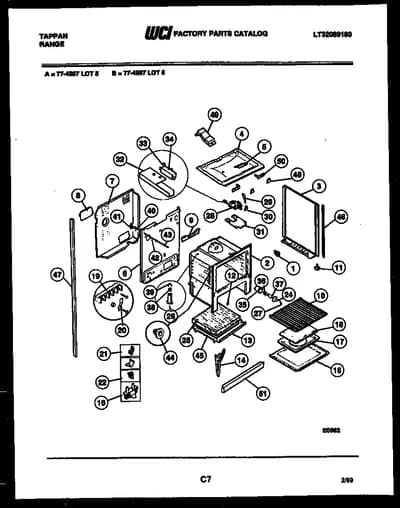

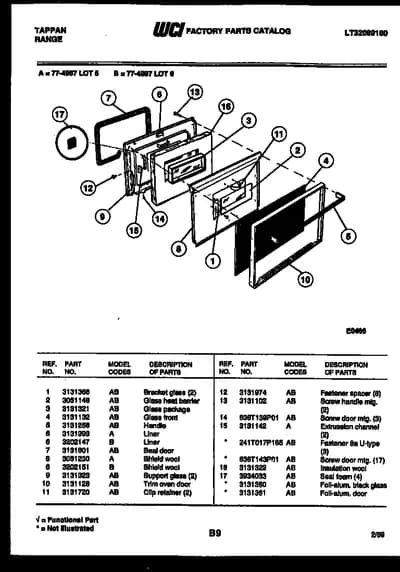

Parts Sections (9)
Diagram

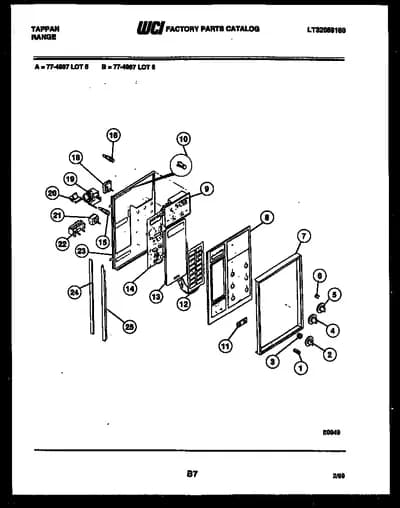

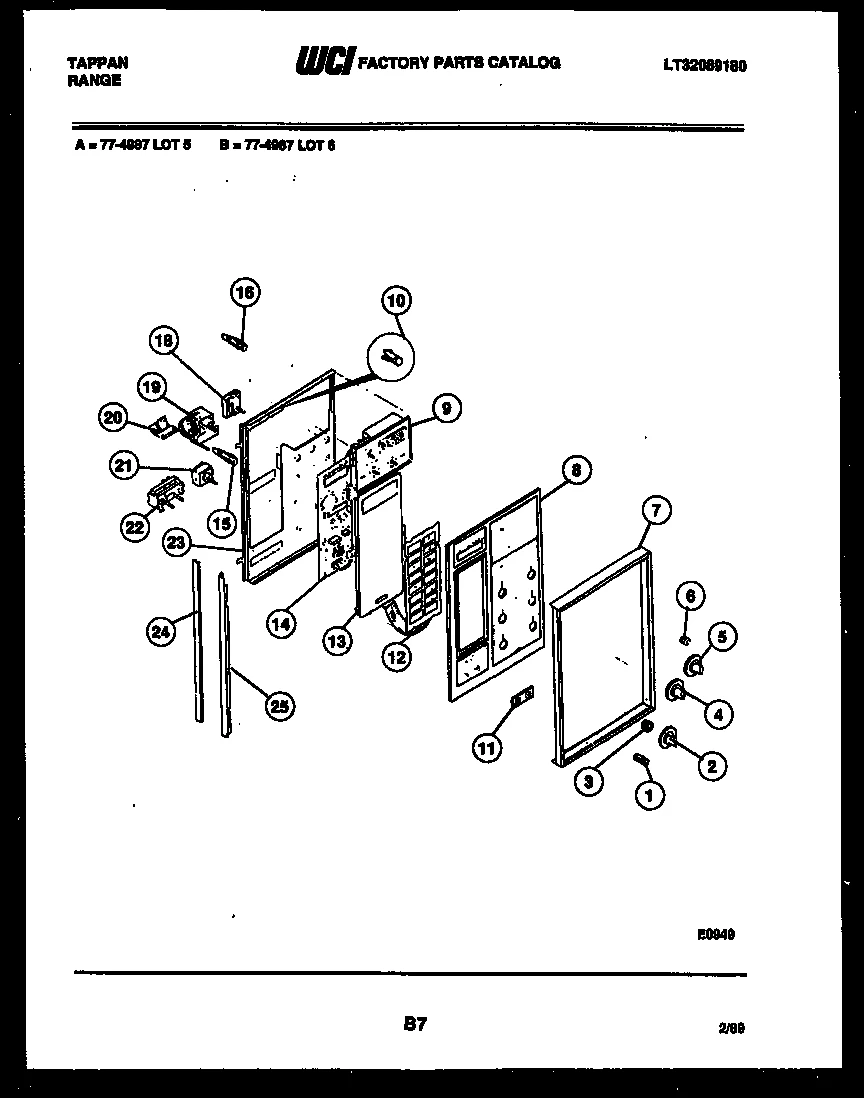

CONTROL PANEL
Parts in CONTROL PANEL
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3091544 BUTTON-PUSH ON-OFF (2) | - |
| 2 |  | KNOB, SWITCH, SURFACE UNIT (4) | Discontinued |
| 3 | – | 102T019P01 BUSHING GLASS (2) (NON-ILLUSTRATED) | - |
| 4 | – | 3051442 KNOB, THERMOSTAT, LOWER | - |
| 5 | – | 3091406 KNOB-SELECTOR SWITCH TEMPERATURE CONTROL | - |
| 5A |  | KNOB-SELECTOR SWITCH 6 POS. | Discontinued |
| 6 | – | 358T201P01 KNOB-ELECTRIC CLOCK | - |
| 7 | – | 740T406P04 TRIM, CONTROL PANEL | - |
| 8 | – | 277T204S15 GLASS-CONTROL PANEL ASSEMBLY | - |
| 9 | – | 3091385 CLOCK DIGITAL | - |
| 10 |  | 154026601replaces 241T017P228 FASTENER-CLOCK MTG. TWIST NUT (3) | - |
| 11 | | 5303011507replaces 045T071P01 BEZEL, SWITCH | - |
| 12 | – | 3091395 SWITCH TOUCH MEMBRANE | - |
| 13 | – | 511T048P01 PANEL, SWITCH MOUNTING | - |
| 14 | – | 115T139P01 CIRCUIT BOARD PRINTED | - |
| 15 | – | 318T023P11 INDICATOR LIGHT, SWITCH (3) | - |
| 16 | – | 318T023P12 LIGHT - IND 250 V (OV) | - |
| 18 | | 5303051315replaces 3051315 SWITCH-SELECTOR 6 POS. LOWER | - |
| 19 | – | 3051320 THERMOSTAT, OVEN LOWER | - |
| 20 | – | 558T032P01 PLUG-DISCONNECT 9 PIN | - |
| 21 | | SWITCH-TOP ELEMENTS (4) | Discontinued |
| 22 | | 5308008910replaces 697T047P04 SWITCH, SELECTOR (2 POS) | - |
| 23 | – | 3091468 CONTROL PANEL | - |
| 24 | – | 643T013P01 SEAL, MICROWAVE | - |
| 25 | – | 3200599 COVER-MICROWAVE SEAL | - |
| *18719 | | 5303013874replaces 636T046P02 SCRW 8A X 3/8`` PH. TR. HD.-DR ASSY (3) (NON-ILLUSTRATED) | - |
| *18719 | – | 636T096P01 SCREW-8-32 X 1/4 PH BD HD-TERMINAL BLOCK MTG | - |
| *18719 | – | 636T090P51 SCREW CIRCUIT BRD MTG (4) (NON-ILLUSTRATED) | - |
| *18719 | – | 665T175P01 SPACER CONTROL PANEL (2) (NON-ILLUSTRATED) | - |
