Model
Tappan 95-1437-45-02
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1437-45-02Refrigerator, Top Mount
3 diagrams90 parts
Parts Sections (3)
Diagram

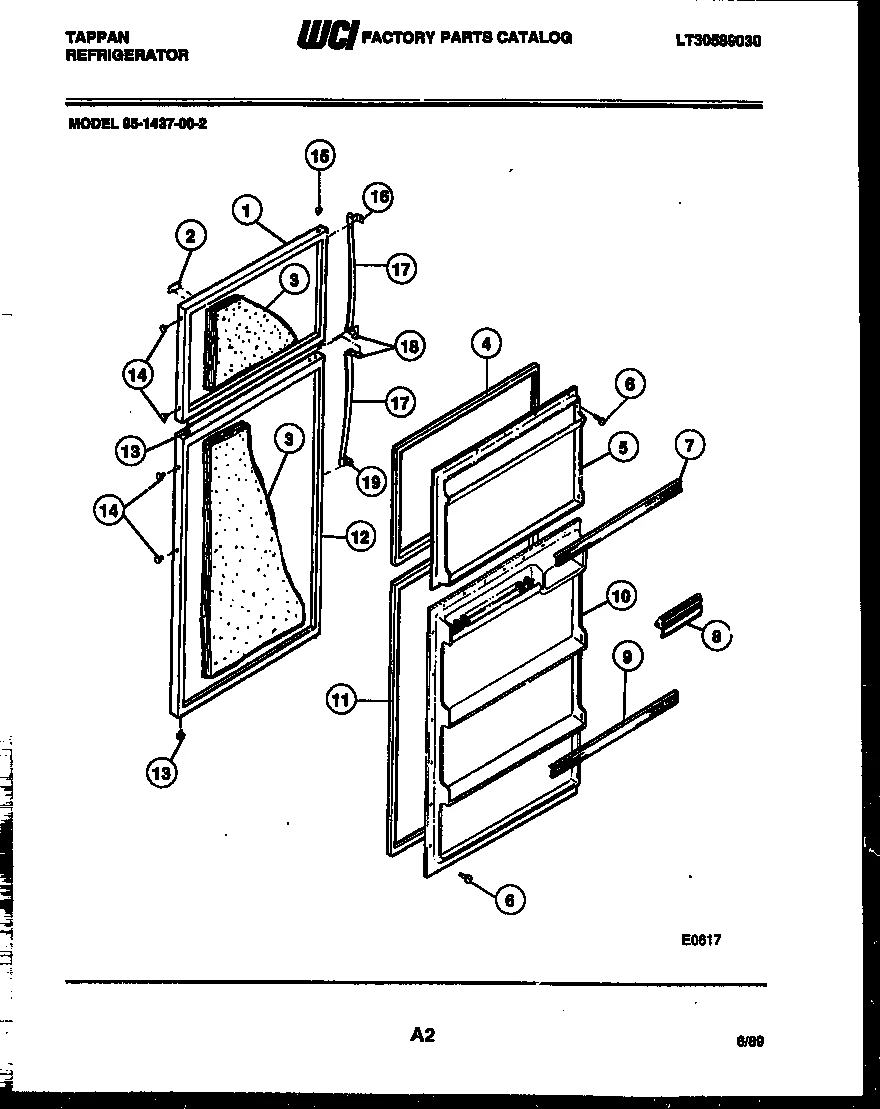

DOOR PARTS
Parts in DOOR PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3016774 PANEL FREEZER-COFFEE | - |
| 2 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 3 |  | INSULATION (BULK) ``FIBERGLASS`` (NON-ILLUSTRATED) | Discontinued |
| 4 |  | GSK. DOOR UPPER (BEIGE) | Discontinued |
| 5 | – | 3001528 INNER PANEL-FREEZER | - |
| 6 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 7 | – | 3001511 RACK-FREEZER DOOR | - |
| 8 | – | 3001538 BUTTER DOOR | - |
| 9 | – | 3001539 DOOR RACK-REFRIGERATOR (2) | - |
| 10 | | 5317839402replaces 3001540 INNER PANEL-REFRIGERATOR | - |
| 11 | – | 3001398 GASKET-REFRIGERATOR | - |
| 12 | – | 3016777 PANEL-REFRIGERATOR-COFFEE | - |
| 13 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | 3001654 BUTTON-PLUG HANDLE HOLE-COFFEE (4) | - |
| 15 | – | 3001657 BUTTON-PLUG HINGE HOLE-COFFEE | - |
| 16 | – | 3001297 END-HANDLE TOP | - |
| 17 | | HANDLE-DOOR, (2) | - |
| 18 | | END-HANDLE (2) | - |
| 19 | – | 3001295 END-HANDLE BOTTOM | - |
