Model
Tappan 95-1437-45-03
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1437-45-03Refrigerator, Top Mount
3 diagrams93 parts
Parts Sections (3)
Diagram

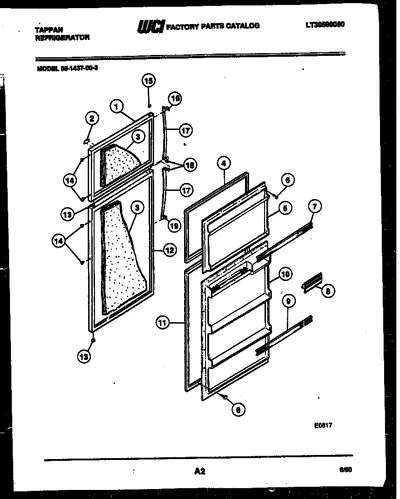

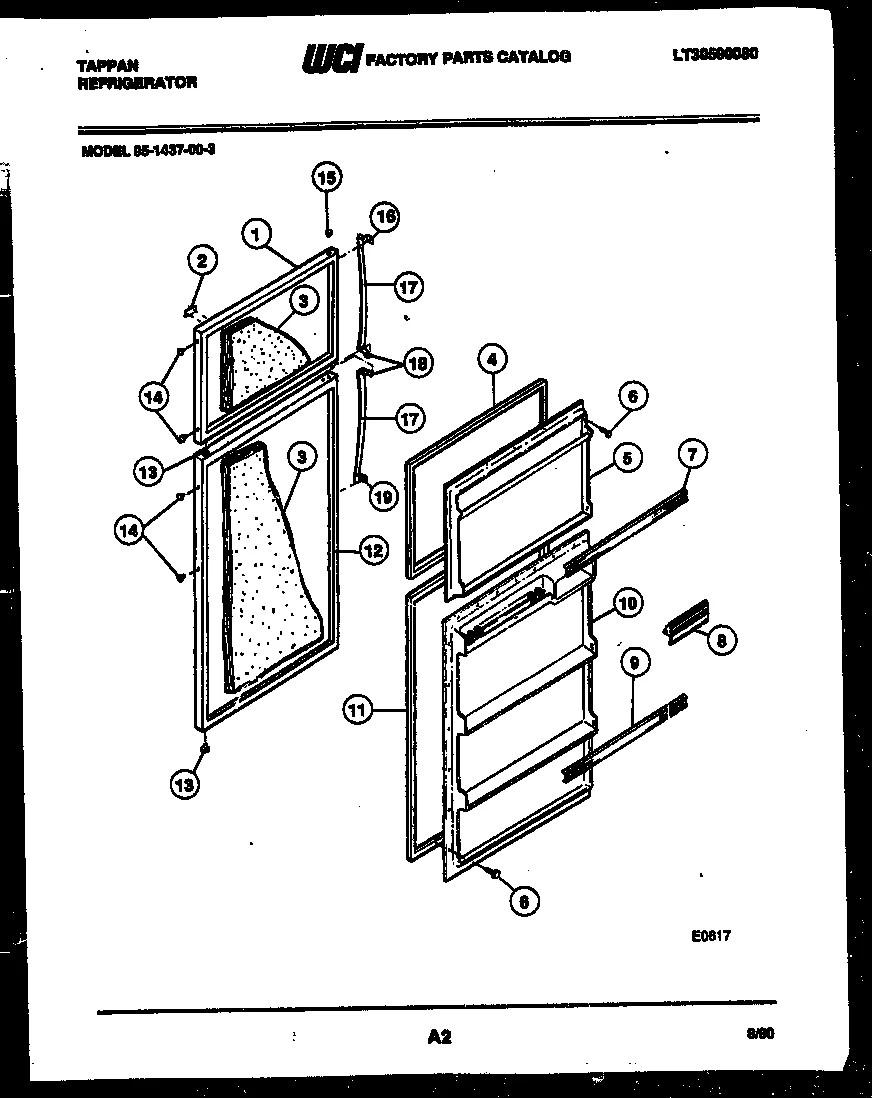

DOOR PARTS
Parts in DOOR PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5318622110 PANEL-FREEZER (COFFEE) | - |
| 2 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 3 |  | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
| 4 | | 5303001399NLA GASKET-FRZR DOOR, MAGNETIC, BEIGE | Discontinued |
| 5 | – | 3001528 INNER PANEL-FREEZER | - |
| 6 |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 7 | – | 3001511 RACK-FREEZER DOOR | - |
| 8 | – | 3001538 BUTTER DOOR | - |
| 9 | – | 3001539 DOOR RACK-REFRIGERATOR (2) | - |
| 10 | | 5317839402replaces 3001540 INNER PANEL-REFRIGERATOR | - |
| 11 | – | 5303001398 GASKET-REFR DOOR, BEIGE, MAGNETIC | - |
| 12 | – | 5318623410 PANEL-REFRIG (COFFEE) | - |
| 13 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | 5308000178 PLUG-BUTTON, COFFEE, HANDLE/DR STOP | - |
| 15 | – | 5303001657 PLUG-BUTTON, COFFEE, HINGE BRG HOLE | - |
| 16 |  | HANDLE END TOP | - |
| 17 | | HANDLE-DOOR, (2) | - |
| 18 |  | END-HANDLE BOTTOM | - |
| 19 |  | BOTTOM HANDLE END CAP | - |
| *38342 | | SCREW | - |
