Model
Tappan 95-1487-00-1
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1487-00-1Refrigerator, Top Mount
3 diagrams117 parts
Parts Sections (3)
Diagram

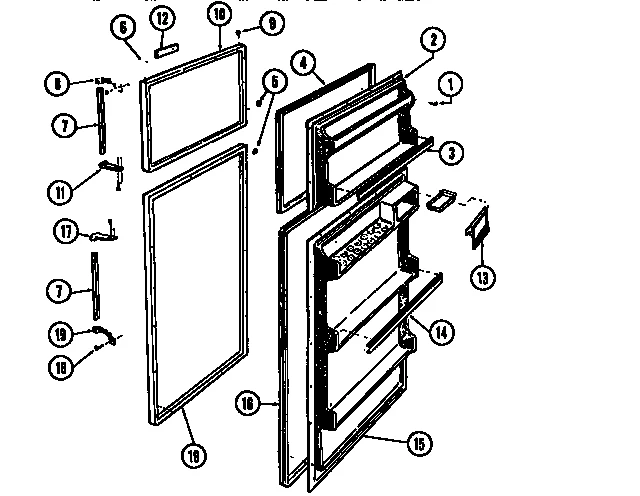

FOOD AND FREEZER DOORS
Parts in FOOD AND FREEZER DOORS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 2 | – | 3001528 INNER PANEL-FREEZER | - |
| 3 | – | 3001611 RACK DOOR | - |
| 4 |  | GSK. DOOR UPPER (BEIGE) | Discontinued |
| 5 |  | 240494004replaces 3001306 BUTTON, PLUG HNDL. HOLE (6) ALMOND | - |
| 6 | | BUTTON, PLUG HNG. HOLE (2) WHITE | Discontinued |
| 6 | – | 3001308 BUTTON, PLUG HNG. HOLE (2) ALMOND | - |
| 7 | | HANDLE-DOOR, (2) | - |
| 8 | – | 3001297 END-HANDLE TOP | - |
| 9 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 10 | – | 3001311 PANEL FREEZER-ALMOND | - |
| 10 | – | 3001310 PANEL-EXT FRZR WHTE | - |
| 11 | | END-HANDLE (2) | - |
| 12 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 13 | – | 3001538 BUTTER DOOR | - |
| 14 | – | 3001539 DOOR RACK-REFRIGERATOR (2) | - |
| 15 | | 5317839402replaces 3001540 INNER PANEL-REFRIGERATOR | - |
| 16 | – | 3001398 GASKET-REFRIGERATOR | - |
| 17 | | END-HANDLE (2) | - |
| 18 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
| 19 | – | 3001318 PANEL-REFRIGERATOR-WHITE | - |
| 19 | – | 3001319 PANEL-REFRIGERATOR-ALMOND | - |
