Model
Tappan 95-1587-23-02
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1587-23-02Refrigerator, Top Mount
3 diagrams116 parts
Parts Sections (3)

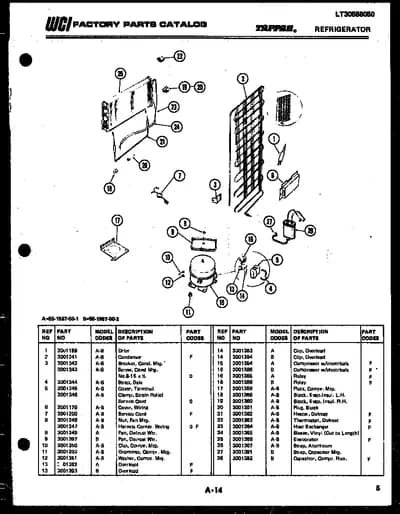

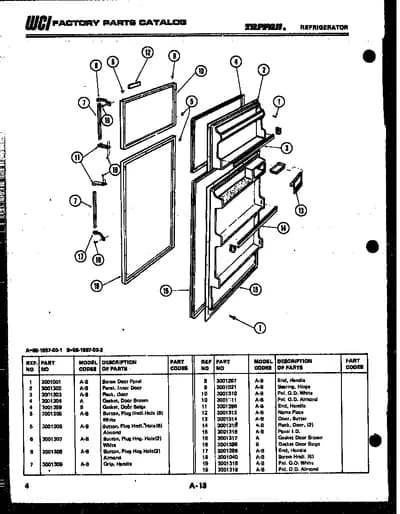

Diagram

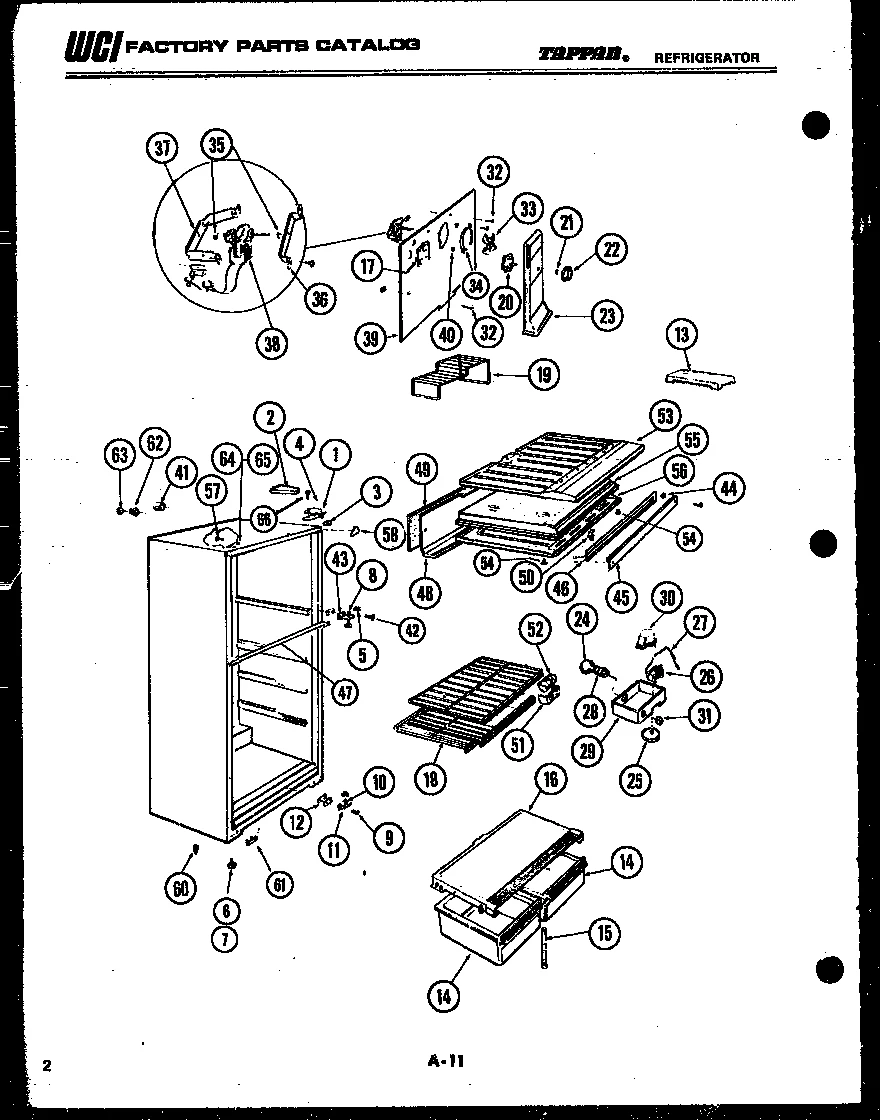

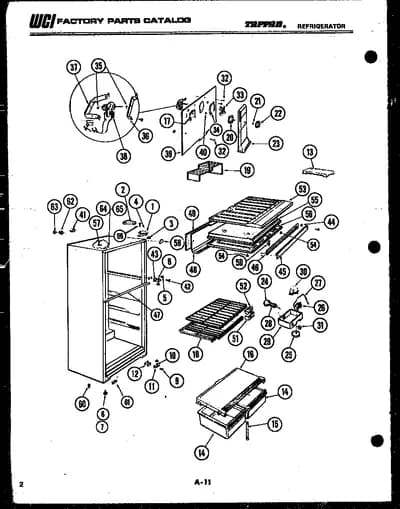

CABINET PARTS
Parts in CABINET PARTS
67 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308012843replaces 3001298 BRACKET UPPER HINGE | - |
| 2 | – | 3001036 COVER-TOP HINGE, ALMOND | - |
| 3 | | 5303001037replaces 3001037 SHIM (NON-ILLUSTRATED) | $6.47 RepairClinic |
| 4 | | WASHER NYLON (3) (NON-ILLUSTRATED) | Discontinued |
| 5 |  | 5303001038replaces 3001038 WASHER-NYLON (2) (NON-ILLUSTRATED) | - |
| 6 | – | 3001301 SCREW, LEVEL (2) (NON-ILLUSTRATED) | - |
| 7 | | 5308003584replaces 3001412 NUT, ANCHOR (2) (NON-ILLUSTRATED) | - |
| 8 | | PIN-CENTER HINGE | Discontinued |
| 9 |  | 241710601replaces 3001320 SCREW-BOTTOM HINGE BRKT MTG (2) (NON-ILLUSTRATED) | $7.79 Part Advantage |
| 10 |  | PIN-BOTTOM HINGE | Discontinued |
| 11 |  | 5303202834replaces 3001322 BRACKET-BOTTOM HINGE | - |
| 12 | – | 3001323 SHIM (NON-ILLUSTRATED) | - |
| 13 |  | 215667501replaces 3001324 TRAY-ICE CUBE (2) | $3.11 Part Advantage |
| 14 | – | 3001325 PAN STORAGE (2) | - |
| 15 |  | SUPPORT-CRISPER COVER | Discontinued |
| 16 | – | 3001327 COVER-STORAGE PAN | - |
| 17 | – | 3001328 BUTTON-DECORATIVE PLUG | - |
| 18 | – | 3001329 SHELF-SLIDING (3) | - |
| 19 | – | 3001330 SHELF FREEZER | - |
| 20 | | 5303001331replaces 3001331 DAMPER-FAN COVER | - |
| 21 | | NUT, PUSH | Discontinued |
| 22 | | 5303001333replaces 3001333 KNOB-DAMPER CONTROL | - |
| 23 | – | 3001334 COVER, FAN | - |
| 24 |  | 316538904replaces 3001179 BULB, LIGHT-FRZR | $9.61 Part Advantage |
| 25 | | 5317478101replaces 3001335 KNOB-TEMPERATURE CONTROL | - |
| 26 | – | 3001336 CONTROL-TEMPERATURE | - |
| 27 | – | 3001263 TUBE, PLASTIC (CUT TO SIZE) | - |
| 27A |  | 5304455649replaces 3001259 SCREW, CONT. MTG. NO. 6-20 X 1/4 (2) (NON-ILLUSTRATED) | $12.95 ApplianceParts Pro |
| 28 | – | 3001267 SOCKET-LIGHT BULB | - |
| 29 | – | 3001337 BOX, CONTROL | - |
| 30 |  | 215846604replaces 3001268 TIMER | $13.88 Part Advantage |
| 31 | – | 3001338 SWITCH-ENERGY SAVER | - |
| 31A | – | 3001339 LABEL, CONTROL BOX (NON-ILLUSTRATED) | - |
| 32 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 33 |  | 5308000010replaces 3001357 BLADE, FAN | $28.91 Part Advantage |
| 34 | | RING, FAN ORIFICE | Discontinued |
| 35 |  | BUSHING-FAN ASSEMBLY (2) | Discontinued |
| 36 | | 5304414684replaces 3001226 BRACKET, MTR. MTG. FRONT | - |
| 37 | | 5303322992replaces 3001227 BRACKET, MTR. MTG. REAR | - |
| 38 |  | 5300158289replaces 3001421 MOTOR-FAN | $84.95 Part Advantage |
| 39 | – | 3001358 COVER, EVAPORATOR COIL | - |
| 40 | – | 3001220 CLIP (NON-ILLUSTRATED) | - |
| 41 | – | 3001198 TUBE-RUBBER (2) | - |
| 42 | | 5308012258replaces 3001368 SCREW-HINGE MTG (2) (NON-ILLUSTRATED) | $1.13 RepairClinic |
| 43 | – | 3001369 BRACKET-CENTER HINGE | - |
| 44 | – | 3001370 SPACER - MULLION MTG (2) (NON-ILLUSTRATED) | - |
| 46 | – | 3001372 HEATER MULLION | - |
| 47 |  | 215170801replaces 3001373 STRAP-MULLION MTG | - |
| 48 | – | 3001374 TROUGH, DRAIN | - |
| 49 |  | 5316651102replaces 3001375 INSULATOR-EVAPORATOR | $36.95 ApplianceParts Pro |
| 50 |  | 5309918806replaces 3001376 SWITCH, LIGHT | $15.67 Parts Dr |
| 51 |  | 5303001546replaces 3001377 COVER AIR DEFLECTOR | - |
| 52 | | DEFLECTOR, AIR | Discontinued |
| 53 | – | 3001379 BOTTOM PANEL-FRZR | - |
| 54 | – | 3001380 SCREW-TOP MOUNTING (3) (NON-ILLUSTRATED) | - |
| 55 | – | 3001381 DIVIDER, STYRO FOAM | - |
| 56 | – | 3001382 TOP, REFRIGERATOR | - |
| 56B | – | 3001390 WIRING HARNESS, DIVIDER (NON-ILLUSTRATED) | - |
| 57 | | 215245000replaces 3001249 SUPPORT, COIL COVER (2) | - |
| 58 | – | 3001385 TRIM CABINET (4) CORN. (ALMOND) | - |
| 58A | | 5303001288replaces 3001288 PLUG BUTTON, LINER WALL (NON-ILLUSTRATED) | - |
| 60 | | 5303001386replaces 3001386 TUBE, DRAIN | - |
| 61 | – | 3001387 BUTTON, PLUG | - |
| 62 | | 5303001286replaces 3001286 FERRULE, INNER (2) | - |
| 63 | – | 3001287 FERRULE, OUTER (2) | - |
| 65 | | 5303001389replaces 3001389 BUTTON, PLUG ALMOND (2) | - |
| 66 | | 241710601replaces 3001479 SCREW-UPPER HINGE MOUNTING (2) (NON-ILLUSTRATED) | $7.79 Part Advantage |
