Model
Tappan 95-1587-23-04
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1587-23-04Refrigerator, Top Mount
3 diagrams123 parts
Parts Sections (3)
Diagram

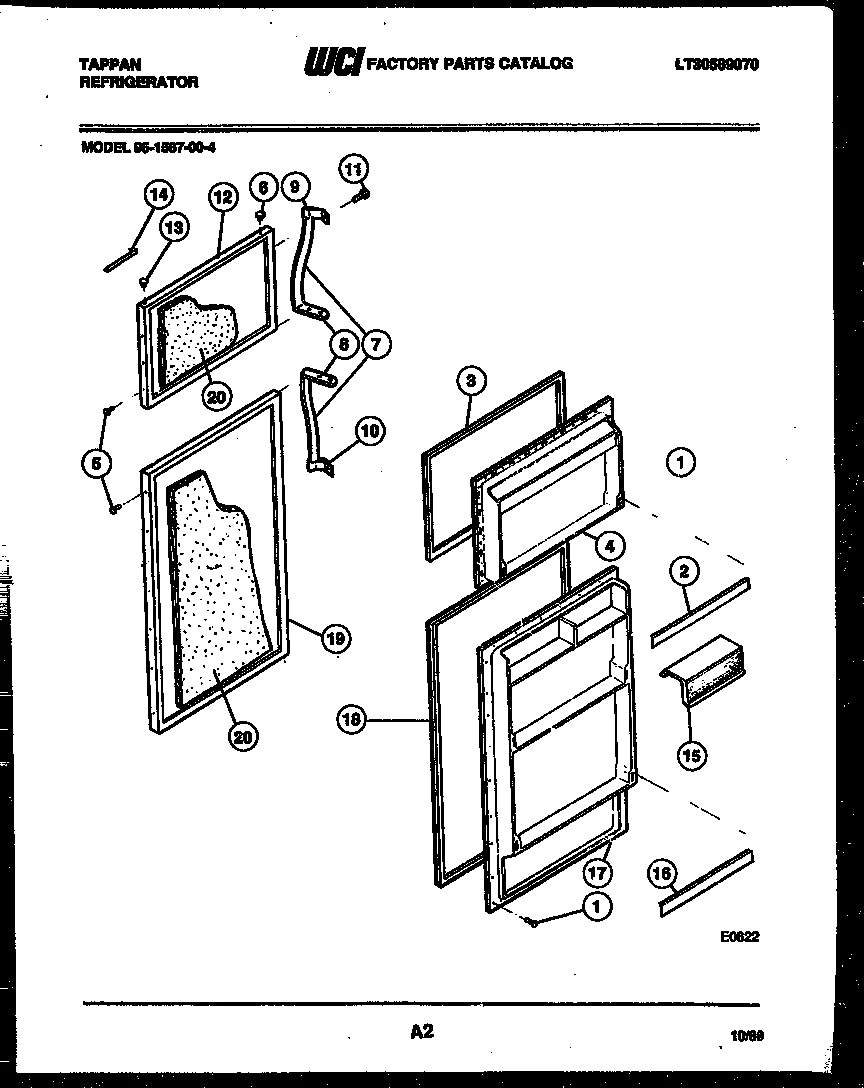

DOOR PARTS
Parts in DOOR PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 2 | – | G164698-48 DOOR RACK-REFRIGERATOR | - |
| 3 |  | GSK. DOOR UPPER (BEIGE) | Discontinued |
| 4 | – | 3001302 PANEL, INNER DOOR | - |
| 5 |  | 240494004replaces 3001306 BUTTON, PLUG HNDL. HOLE (6) ALMOND | - |
| 6 | – | 3001308 BUTTON, PLUG HNG. HOLE (2) ALMOND | - |
| 7 | | HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 8 | | END-HANDLE (2) | - |
| 9 | – | 3001297 END-HANDLE TOP | - |
| 10 | – | 3001295 END-HANDLE BOTTOM | - |
| 11 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
| 12 | – | 3001311 PANEL FREEZER-ALMOND | - |
| 13 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 15 | – | 3001314 DOOR, BUTTER | - |
| 16 | – | 3001315 RACK-REFR DOOR (2) | - |
| 17 | | 5318664801replaces 3001316 PANEL-INNER | - |
| 18 | – | 3001398 GASKET-REFRIGERATOR | - |
| 19 | – | 3001319 PANEL-REFRIGERATOR-ALMOND | - |
| 20 | | INSULATION (BULK) ``FIBERGLASS`` (NON-ILLUSTRATED) | Discontinued |
