Model
Tappan 95-1589-00-00
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1589-00-00Refrigerator, Top Mount
3 diagrams161 parts
Parts Sections (3)
Diagram

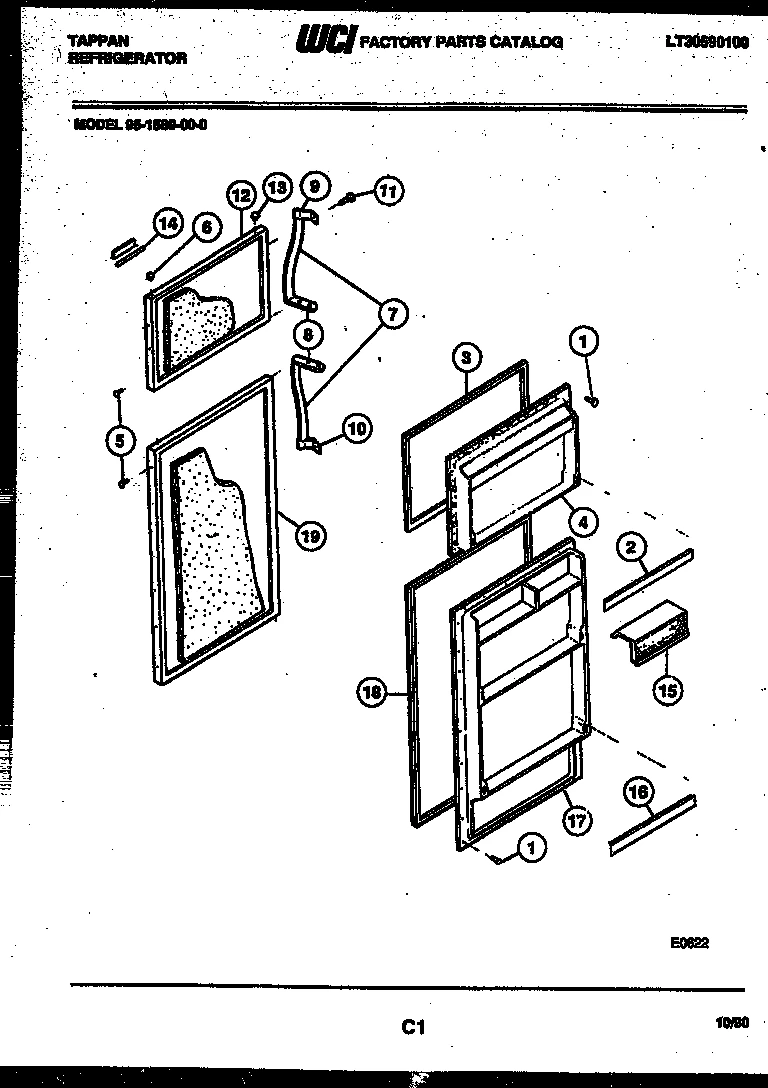

DOOR PARTS
Parts in DOOR PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 2 | – | 5316469848 RACK-REFR DOOR (2) | - |
| 3 |  | 5303001399NLA GASKET-FRZR DOOR, MAGNETIC, BEIGE | Discontinued |
| 4 | – | 5318669202 PANEL-INNER DOOR, FRZR | - |
| 5 | – | 5308000178 PLUG-BUTTON, COFFEE, HANDLE/DR STOP | - |
| 5 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 5 | – | 5308000180 BUTTON PLUG, HARVEST WHEAT, HANDLE HOLES | - |
| 5 | – | 5308000179 BUTTON-PLUG HANDLE HOLE AVOCADO (8) | - |
| 5 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 6 | – | 5308000175 BUTTON-PLUG HINGE HOLE-AVOCADO | - |
| 6 | – | 5308000176 BUTTON PLUG, HARVEST WHEAT, HINGE BRG HOLE | - |
| 6 | – | 5303001657 PLUG-BUTTON, COFFEE, HINGE BRG HOLE | - |
| 6 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 6 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 7 | | GRIP-HANDLE (2) | - |
| 8 |  | END-HANDLE BOTTOM | - |
| 9 |  | HANDLE END TOP | - |
| 10 |  | BOTTOM HANDLE END CAP | - |
| 11 | | SCREW | - |
| 12 | – | 5300186221 PANEL-FRZR DOOR, WHITE | - |
| 12 | – | 5308622108 PANEL-FREEZER (AVOC) | - |
| 12 | – | 5318622109 PANEL-FRZR DOOR, WHEAT | - |
| 12 | – | 5318622110 PANEL-FREEZER (COFFEE) | - |
| 12 | – | 5318622111 PANEL-FRZR DOOR, ALMOND | - |
| 13 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 15 | – | 5316177644 DOOR-DAIRY | - |
| 16 | | RACK-DOOR, (3) | - |
| 17 | | 5318664801replaces 5303001316 PANEL-INNER DOOR, REFR | - |
| 18 | – | 5303001398 GASKET-REFR DOOR, BEIGE, MAGNETIC | - |
| 19 | – | 5318623411 PANEL-REFR DOOR, ALMOND | - |
| 19 | – | 5300186234 PANEL-REFR DOOR, WHITE | - |
| 19 | – | 5318623408 PANEL-REFRIG (AVOC) | - |
| 19 | – | 5318623409 PANEL-REFR DOOR, WHEAT | - |
| 19 | – | 5318623410 PANEL-REFRIG (COFFEE) | - |
