Model
Tappan 95-1589-23-01
Refrigerator, Top Mount
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1589-23-01Refrigerator, Top Mount
5 diagrams130 parts
Parts Sections (5)
Diagram

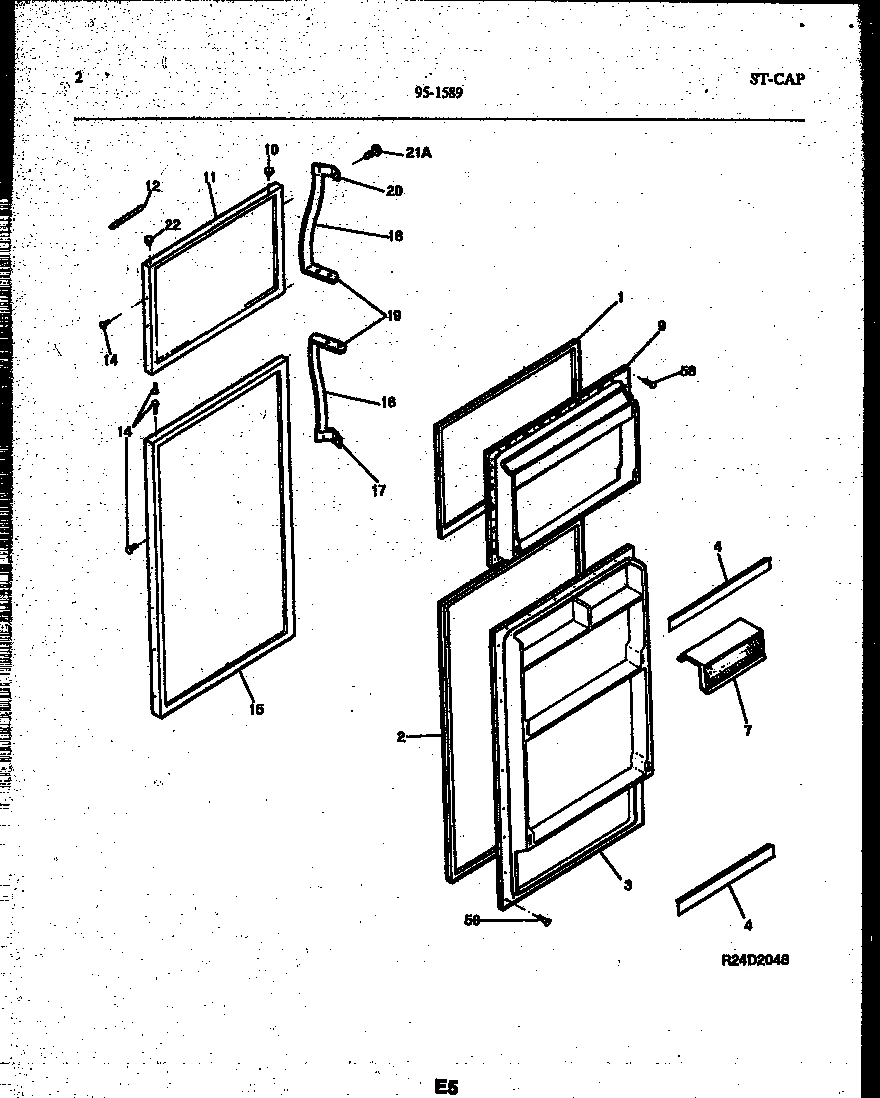

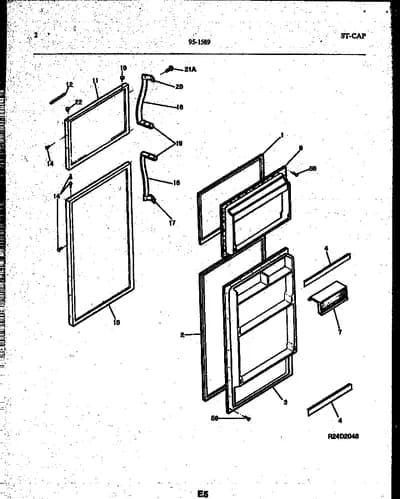

DOOR PARTS
Parts in DOOR PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303001399NLA GASKET-FRZR DOOR, MAGNETIC, BEIGE | Discontinued |
| 2 | – | 5303001398 GASKET-REFR DOOR, BEIGE, MAGNETIC | - |
| 3 | | 5318664801replaces 5303001316 PANEL-INNER DOOR, REFR | - |
| 4 | | RACK-DOOR, (3) | - |
| 7 | – | 5316177644 DOOR-DAIRY | - |
| 9 | – | 5318669202 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5318622111 PANEL-FRZR DOOR, ALMOND | - |
| 12 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 5318623411 PANEL-REFR DOOR, ALMOND | - |
| 17 |  | HANDLE END TOP | - |
| 18 | | HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 |  | BOTTOM HANDLE END CAP | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *67253 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
