Model
Tappan 95-1732-23-00
Refrigerator, Top Mount
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1732-23-00Refrigerator, Top Mount
7 diagrams161 parts
Parts Sections (7)
Diagram

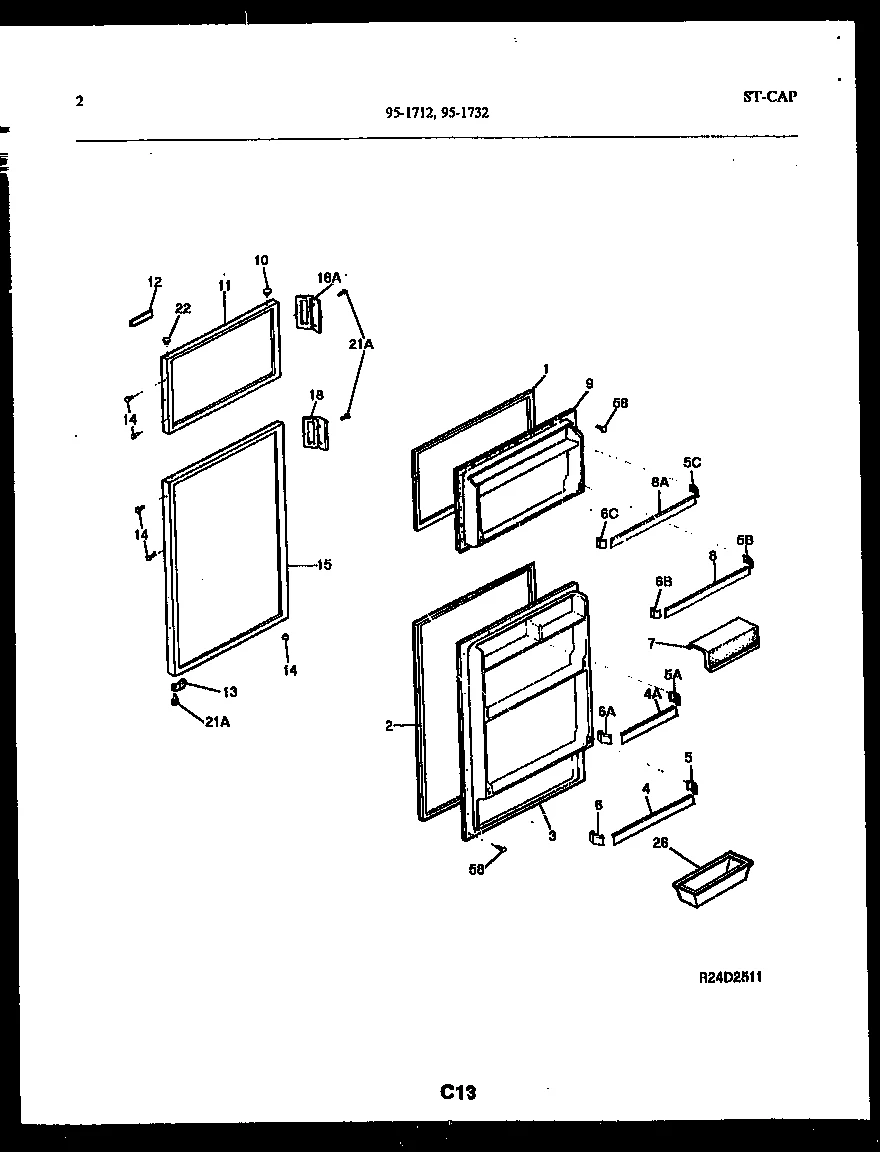

DOOR PARTS
Parts in DOOR PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308007123NLA GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 | – | 5303284098 PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 5303290924 RACK-DOOR, FULL-WIDTH, WIDE, (2) | $30.97 Part Advantage |
| 4A |  | 5303290913NLA RACK-DOOR, SHORT, NARROW | Discontinued |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 5A |  | 5304402658replaces 3206156 SUPPORT-DOOR RACK, EXTENDS .56``, RH | - |
| 5B | | 3206161NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,RH ,W/MTG HOOKS | Discontinued |
| 5C |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 6 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 6A |  | 5304402659replaces 3206157 SUPPORT-DOOR RACK, EXTENDS .56``, LH | - |
| 6B | | 3206162NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,LH ,W/MTG HOOKS | Discontinued |
| 6C |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 7 | – | 5303290912 DOOR-DAIRY | - |
| 8 | | 215366002replaces 5303290925 RACK-DOOR, FULL-WIDTH, WIDE | $30.97 Part Advantage |
| 8A |  | RACK-DOOR, FULL-WIDTH, NARROW | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 3916567 PANEL-FRZR DOOR, ALMOND, W/ INSUALTION | - |
| 12 | – | 215134402 LABEL-NAMEPLATE, ALMD/GRAY LTRS | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 3916562 PANEL-REFR DOOR, ALMOND, W/INSULATION | - |
| 18 | | HANDLE-DOOR, ALMOND, REFR | - |
| 18A | | HANDLE-DOOR, ALMOND, FRZR | - |
| 21A | | SCREW | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | CONTAINER-EGG OPTIONAL ACCESSORY-NOT ORIGINAL EQUIPMENT. | $81.84 PartSelect |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *74273 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
