Model
Tappan 95-1757-23-04
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1757-23-04Refrigerator, Top Mount
4 diagrams133 parts
Parts Sections (4)
Diagram

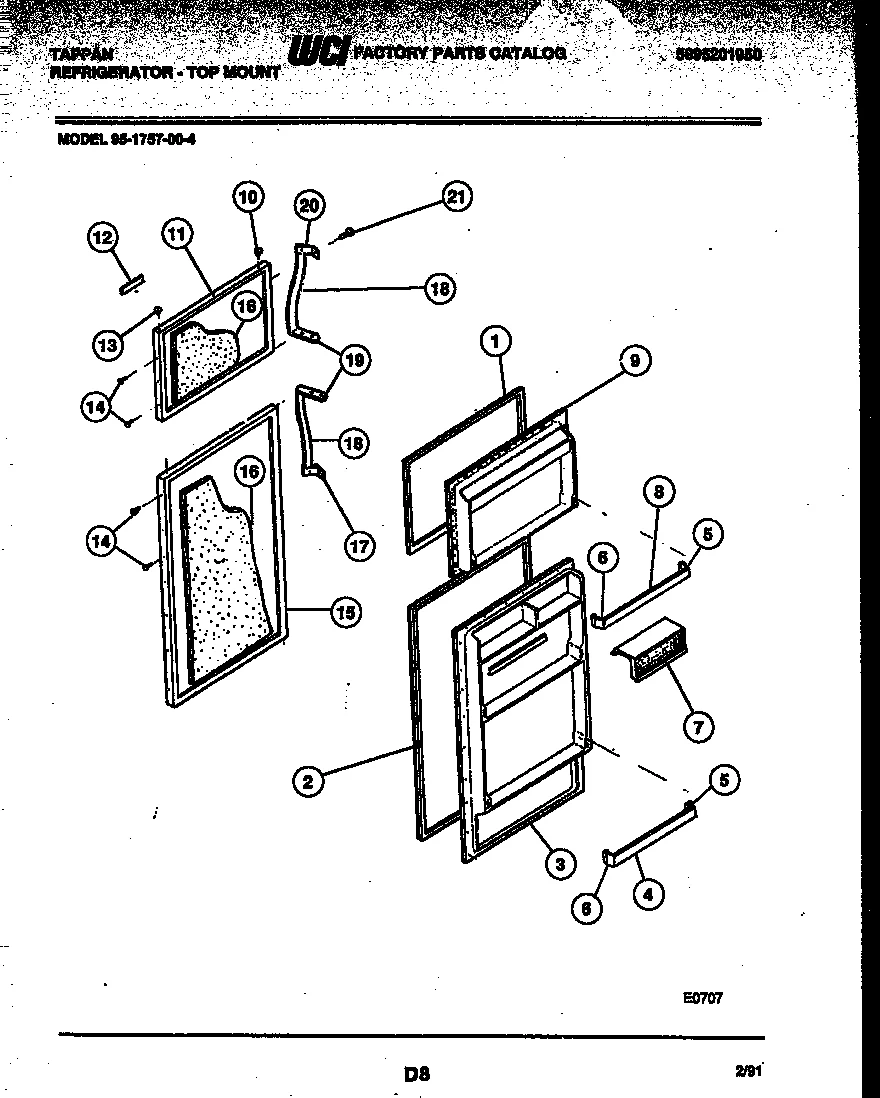

DOOR PARTS
Parts in DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303001399NLA GASKET-FRZR DOOR, MAGNETIC, BEIGE | Discontinued |
| 2 |  | 218730603replaces 5303001517 GASKET-REFR DOOR, MAGNETIC, BEIGE | $30.97 Part Advantage |
| 3 | – | 5318560201 INNER PANEL REFRIGERATOR | - |
| 3A |  | 5304455651replaces 08002748 SCREW | $7.77 Part Advantage |
| 4 | | RACK-REFRIGERATOR DOOR (2) | - |
| 5 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 6 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 7 | – | 5316177644 DOOR-DAIRY | - |
| 8 | | RACK-REFRIGERATOR DOOR (2) | - |
| 9 | – | 5318560101 PANEL-INNER DOOR, FRZR | - |
| 9A | | 5304455651replaces 08002748 SCREW | $7.77 Part Advantage |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303916795 PANEL-FRZR DOOR, ALMOND | - |
| 12 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 13 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | G185600-11 REFRIGERATOR DOOR-ALMOND | - |
| 15A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 15B | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 16 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
| 17 |  | BOTTOM HANDLE END CAP | - |
| 18 | | HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 |  | HANDLE END TOP | - |
| 21 | | SCREW | - |
