Model
Tappan 95-1787-00-01
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1787-00-01Refrigerator, Top Mount
3 diagrams123 parts
Parts Sections (3)
Diagram

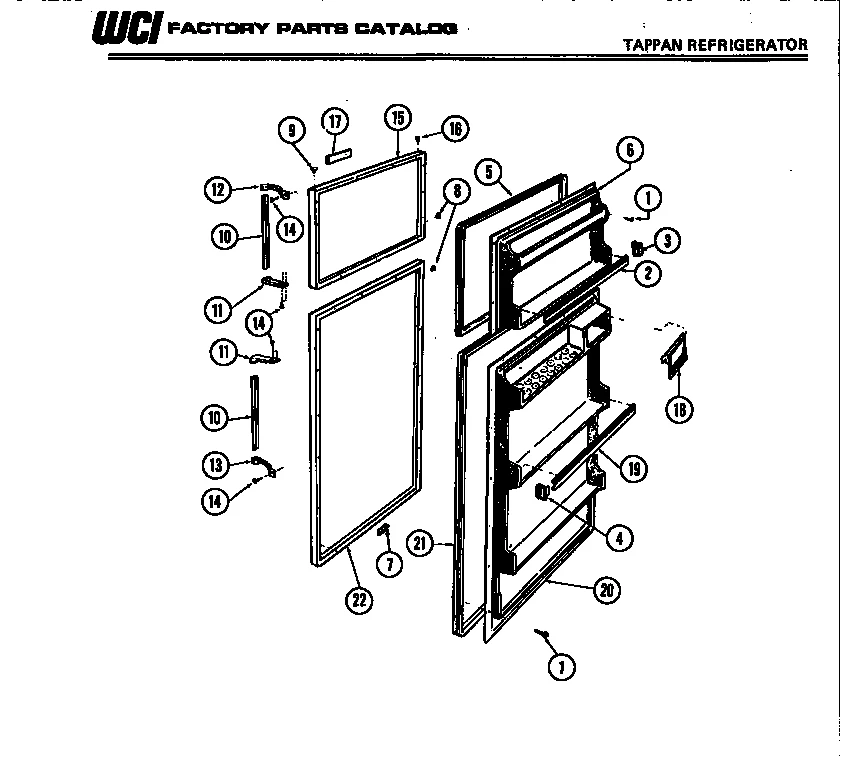

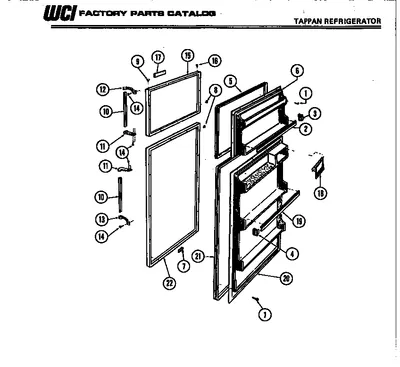

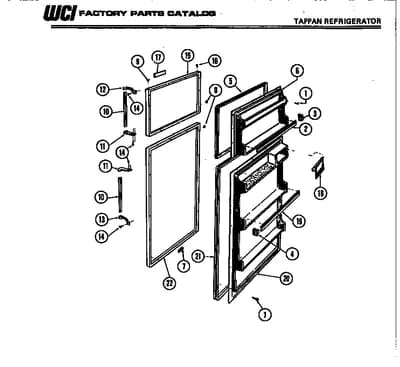

DOOR PARTS
Parts in DOOR PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 2 | – | 3001511 RACK-FREEZER DOOR | - |
| 3 | – | 3001410 SUPPORT DOOR RACK RH (4) | - |
| 4 |  | 5303007297replaces 3001411 SUPPORT DOOR RACK LH (4) | $24.36 RepairClinic |
| 5 |  | GSK. DOOR UPPER (BEIGE) | Discontinued |
| 6 | – | 3001512 INNER PANEL-FREEZER | - |
| 7 |  | 5308000255replaces 3001405 STOP-DOOR (2) | - |
| 8 |  | 240494001replaces 3001305 BUTTON, PLUG HNDL. HOLE (6) WHITE | $9.83 Part Advantage |
| 9 |  | BUTTON, PLUG HNG. HOLE (2) WHITE | Discontinued |
| 10 | – | 3001309 GRIP-HANDLE (2) | - |
| 11 | | END-HANDLE (2) | - |
| 12 | – | 3001297 END-HANDLE TOP | - |
| 13 | – | 3001295 END-HANDLE BOTTOM | - |
| 14 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
| 15 | – | 3001513 PNL, O.D. WHITE | - |
| 16 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 17 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 18 | – | 3001314 DOOR, BUTTER | - |
| 19 | – | 3001515 RACK-REFRIGERATOR DOOR (2) | - |
| 20 | – | 3001516 INNER PANEL REFRIGERATOR | - |
| 21 |  | 218730603replaces 3001517 GASKET-REFRIGERATOR | $30.97 Part Advantage |
| 22 | – | 3001518 PNL, O.D. WHITE | - |
