Model
Tappan 95-1967-00-01
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1967-00-01Refrigerator, Top Mount
6 diagrams161 parts
Parts Sections (6)
Diagram

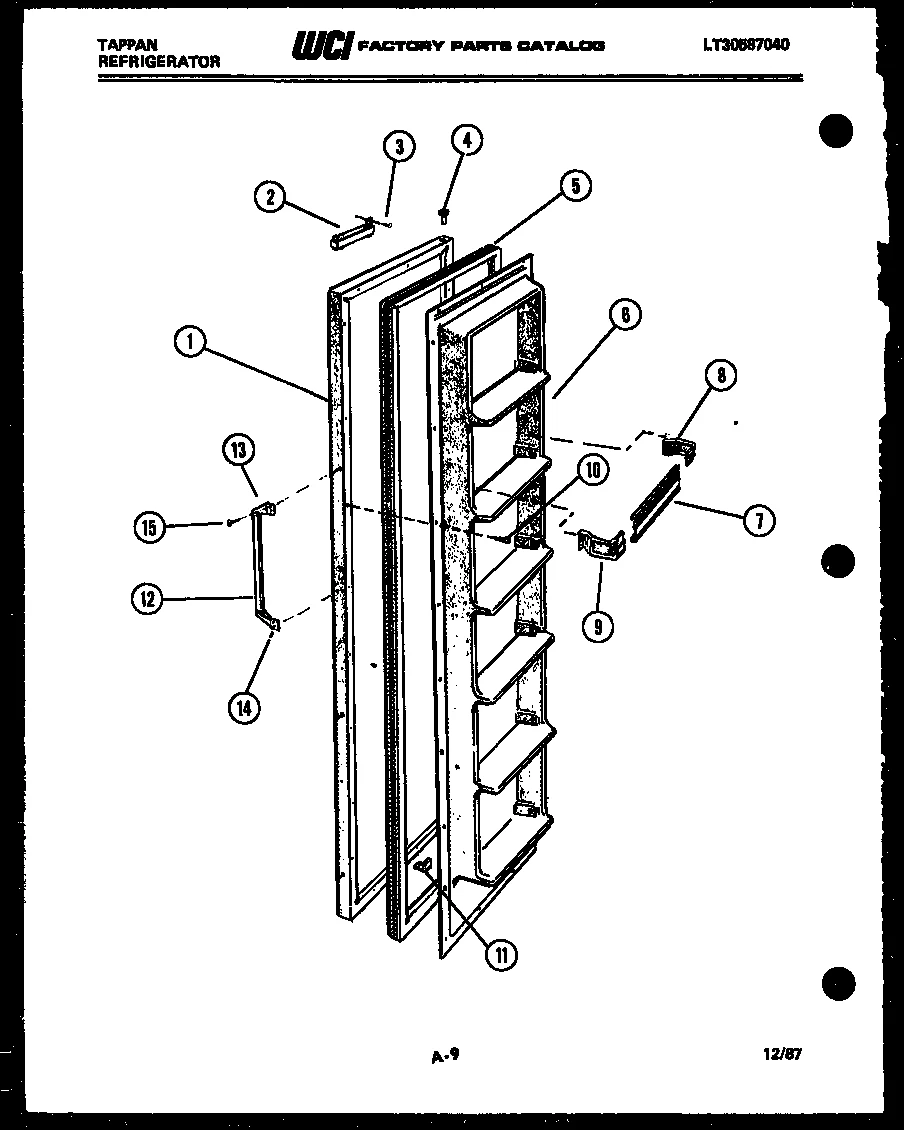

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3001718 FREEZER DOOR - AVOCADO | - |
| 1 | – | 3001719 FREEZER DOOR-ALMOND | - |
| 1 | – | 3001720 FREEZER DOOR-WHEAT | - |
| 1 | – | 3001721 FREEZER DOOR-COFFEE | - |
| 1 | – | 3001717 FREEZER DOOR-WHITE | - |
| 2 | – | 3001018 CLOSER, DOOR | - |
| 3 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 4 |  | 5303001022replaces 3001022 BEARING-HINGE, UPPER | - |
| 4A | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 5 | – | 3007138 GASKET-FREEZER | - |
| 6 | – | 3016719 PANEL-INNER | - |
| 7 | – | 3016720 RACK-REFRIGERATOR DOOR (2) | - |
| 8 | | 5303016721replaces 3016721 SUPPORT-RACK RH (6) | - |
| 9 | | 5316108004replaces 3016722 SUPPORT-RACK LH (6) | - |
| 10 | | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 11 | | 5308000790replaces 3001019 SWITCH-BUMPR LITE | $1.83 RepairClinic |
| 12 |  | 316472008replaces 3016723 HANDLE-DOOR | - |
| 13 | – | 3001014 END, HANDLE, TOP | - |
| 14 | – | 3001015 END, HANDLE., BOTTOM | - |
| 15 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
